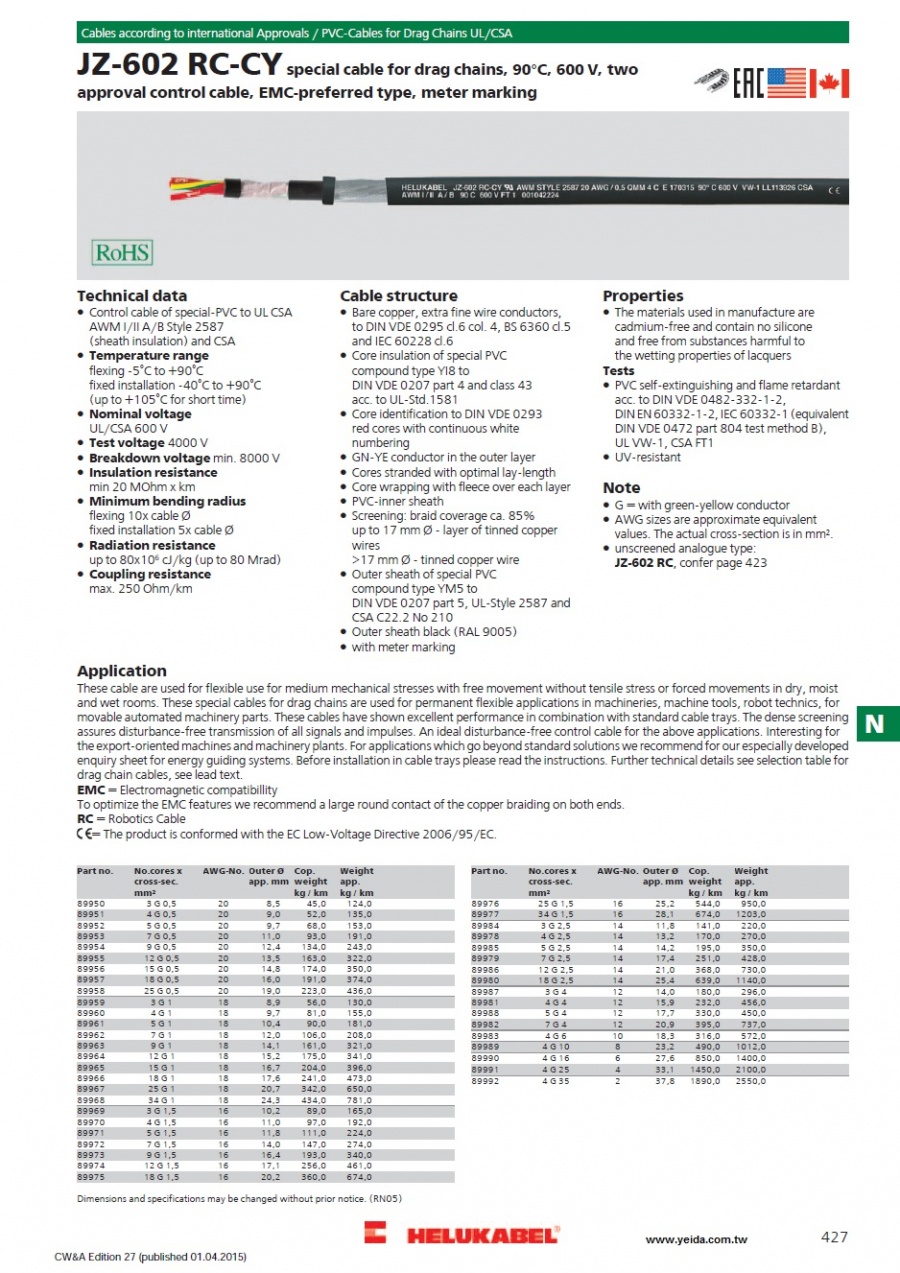

Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Coupling resistance max. 250 Ohm/km
Cable structure
Bare copper, extra fine wire conductors, to DIN VDE 0295 cl.6 col. 4, BS 6360 cl.5 and IEC 60228 cl.6
Core insulation of special PVC compound type YI8 to DIN VDE 0207 part 4 and class 43 acc. to UL-Std.1581
Core identification to DIN VDE 0293 red cores with continuous white numbering
GN-YE conductor in the outer layer
Cores stranded with optimal lay-length
Core wrapping with fleece over each layer
PVC-inner sheath
Screening: braid coverage ca. 85% up to 17 mm Ø - layer of tinned copper wires >17 mm Ø - tinned copper wire
Outer sheath of special PVC compound type YM5 to DIN VDE 0207 part 5, UL-Style 2587 and CSA C22.2 No 210
Outer sheath black (RAL 9005)
with meter marking
Properties
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B), UL VW-1, CSA FT1
UV-resistant
Note
G = with green-yellow conductor
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
unscreened analogue type: JZ-602 RC
Application
These cable are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms. These special cables for drag chains are used for permanent flexible applications in machineries, machine tools, robot technics, for movable automated machinery parts. These cables have shown excellent performance in combination with standard cable trays. The dense screening assures disturbance-free transmission of all signals and impulses. An ideal disturbance-free control cable for the above applications. Interesting for the export-oriented machines and machinery plants. For applications which go beyond standard solutions we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text. EMC = Electromagnetic compatibillity To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. RC = Robotics Cable CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
