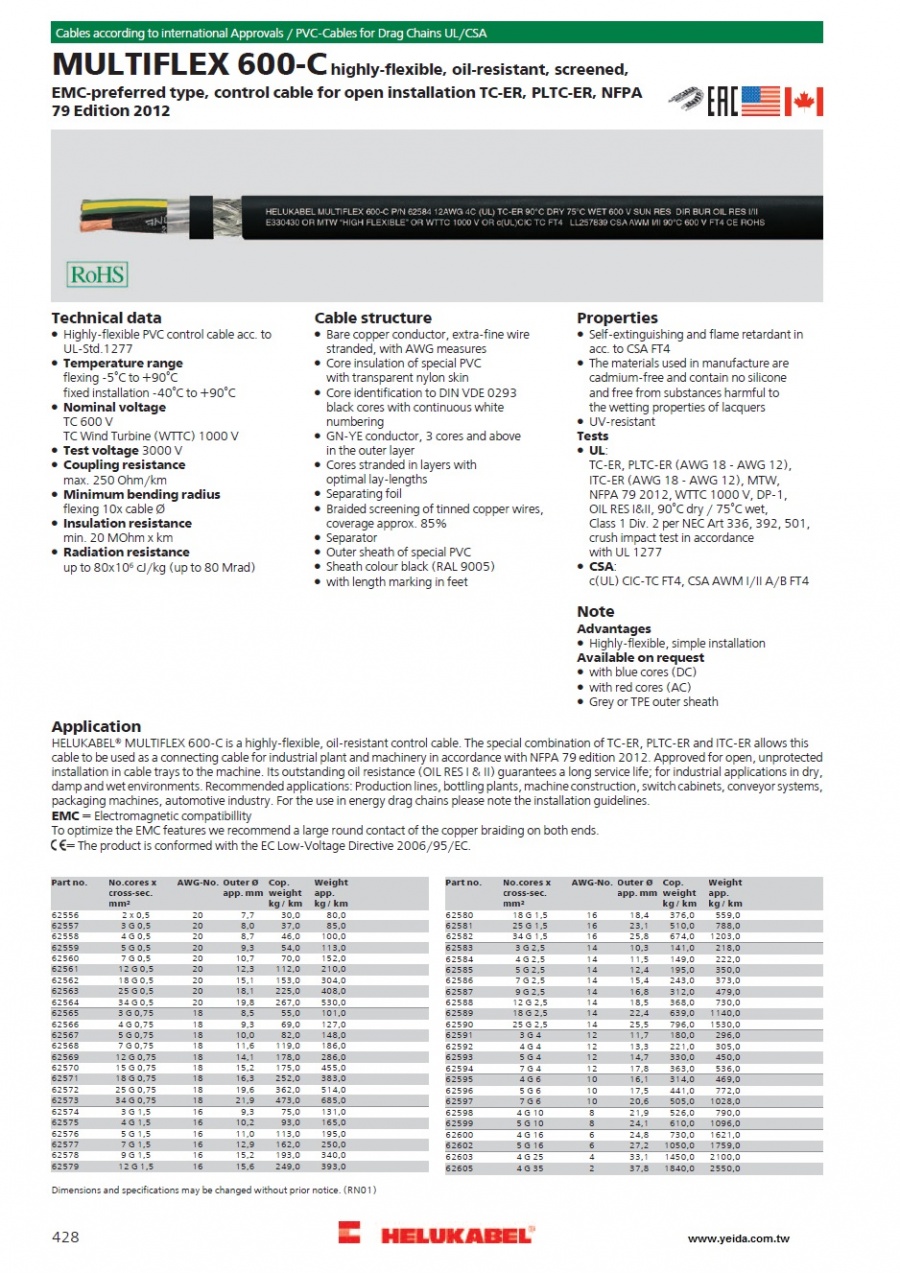

MULTIFLEX 600-C

MULTIFLEX 600-C highly-flexible, oil-resistant, screened, EMC-preferred type, open installation TC-ER, PLTC-ER, NFPA 79 Edition 2012

★★★★商品說明★★★★

Technical data

Highly-flexible PVC control cable acc. to
UL-Std.1277
Temperature range
flexing -5°C to +90°C
fixed installation -40°C to +90°C
Nominal voltage
TC 600 V
TC Wind Turbine (WTTC) 1000 V
Test voltage 3000 V
Coupling resistance
max. 250 Ohm/km
Minimum bending radius
flexing 10x cable Ø
Insulation resistance
min. 20 MOhm x km
Radiation resistance
up to 80x10⁶ cJ/kg (up to 80 Mrad)

Cable structure

Bare copper conductor, extra-fine wire
stranded, with AWG measures
Core insulation of special PVC
with transparent nylon skin
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layers with
optimal lay-lengths
Separating foil
Braided screening of tinned copper wires,
coverage approx. 85%
Separator
Outer sheath of special PVC
Sheath colour black (RAL 9005)
with length marking in feet

Properties

Self-extinguishing and flame retardant in
acc. to CSA FT4
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers
UV-resistant

Tests

UL:
TC-ER, PLTC-ER (AWG 18 - AWG 12),
ITC-ER (AWG 18 - AWG 12), MTW,
NFPA 79 2012, WTTC 1000 V, DP-1,
OIL RES I&II, 90°C dry / 75°C wet,
Class 1 Div. 2 per NEC Art 336, 392, 501,
crush impact test in accordance
with UL 1277
CSA:
c(UL) CIC-TC FT4, CSA AWM I/II A/B FT4

Note

Advantages

Highly-flexible, simple installation

Available on request

with blue cores (DC)
with red cores (AC)
Grey or TPE outer sheath

Application

HELUKABEL® MULTIFLEX 600-C is a highly-flexible, oil-resistant control cable. The special combination of TC-ER, PLTC-ER and ITC-ER allows this cable to be used as a connecting cable for industrial plant and machinery in accordance with NFPA 79 edition 2012. Approved for open, unprotected installation in cable trays to the machine. Its outstanding oil resistance (OIL RES I & II) guarantees a long service life; for industrial applications in dry, damp and wet environments. Recommended applications: Production lines, bottling plants, machine construction, switch cabinets, conveyor systems, packaging machines, automotive industry. For the use in energy drag chains please note the installation guidelines.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
62556	2 x 0,5	20	7,7	30,0	80,0
62557	3 G 0,5	20	8,0	37,0	85,0
62558	4 G 0,5	20	8,7	46,0	100,0
62559	5 G 0,5	20	9,3	54,0	113,0
62560	7 G 0,5	20	10,7	70,0	152,0
62561	12 G 0,5	20	12,3	112,0	210,0
62562	18 G 0,5	20	15,1	153,0	304,0
62563	25 G 0,5	20	18,1	225,0	408,0
62564	34 G 0,5	20	19,8	267,0	530,0
62565	3 G 0,75	18	8,5	55,0	101,0
62566	4 G 0,75	18	9,3	69,0	127,0
62567	5 G 0,75	18	10,0	82,0	148,0
62568	7 G 0,75	18	11,6	119,0	186,0
62569	12 G 0,75	18	14,1	178,0	286,0
62570	15 G 0,75	18	15,2	175,0	455,0
62571	18 G 0,75	18	16,3	252,0	383,0
62572	25 G 0,75	18	19,6	362,0	514,0
62573	34 G 0,75	18	21,9	473,0	685,0
62574	3 G 1,5	16	9,3	75,0	131,0
62575	4 G 1,5	16	10,2	93,0	165,0
62576	5 G 1,5	16	11,0	113,0	195,0
62577	7 G 1,5	16	12,9	162,0	250,0
62578	9 G 1,5	16	15,2	193,0	340,0
62579	12 G 1,5	16	15,6	249,0	393,0
62580	18 G 1,5	16	18,4	376,0	559,0
62581	25 G 1,5	16	23,1	510,0	788,0
62582	34 G 1,5	16	25,8	674,0	1203,0
62583	3 G 2,5	14	10,3	141,0	218,0
62584	4 G 2,5	14	11,5	149,0	222,0
62585	5 G 2,5	14	12,4	195,0	350,0
62586	7 G 2,5	14	15,4	243,0	373,0
62587	9 G 2,5	14	16,8	312,0	479,0
62588	12 G 2,5	14	18,5	368,0	730,0
62589	18 G 2,5	14	22,4	639,0	1140,0
62590	25 G 2,5	14	25,5	796,0	1530,0
62591	3 G 4	12	11,7	180,0	296,0
62592	4 G 4	12	13,3	221,0	305,0
62593	5 G 4	12	14,7	330,0	450,0
62594	7 G 4	12	17,8	363,0	536,0
62595	4 G 6	10	16,1	314,0	469,0
62596	5 G 6	10	17,5	441,0	772,0
62597	7 G 6	10	20,6	505,0	1028,0
62598	4 G 10	8	21,9	526,0	790,0
62599	5 G 10	8	24,1	610,0	1096,0
62600	4 G 16	6	24,8	730,0	1621,0
62602	5 G 16	6	27,2	1050,0	1759,0
62603	4 G 25	4	33,1	1450,0	2100,0
62605	4 G 35	2	37,8	1840,0	2550,0
