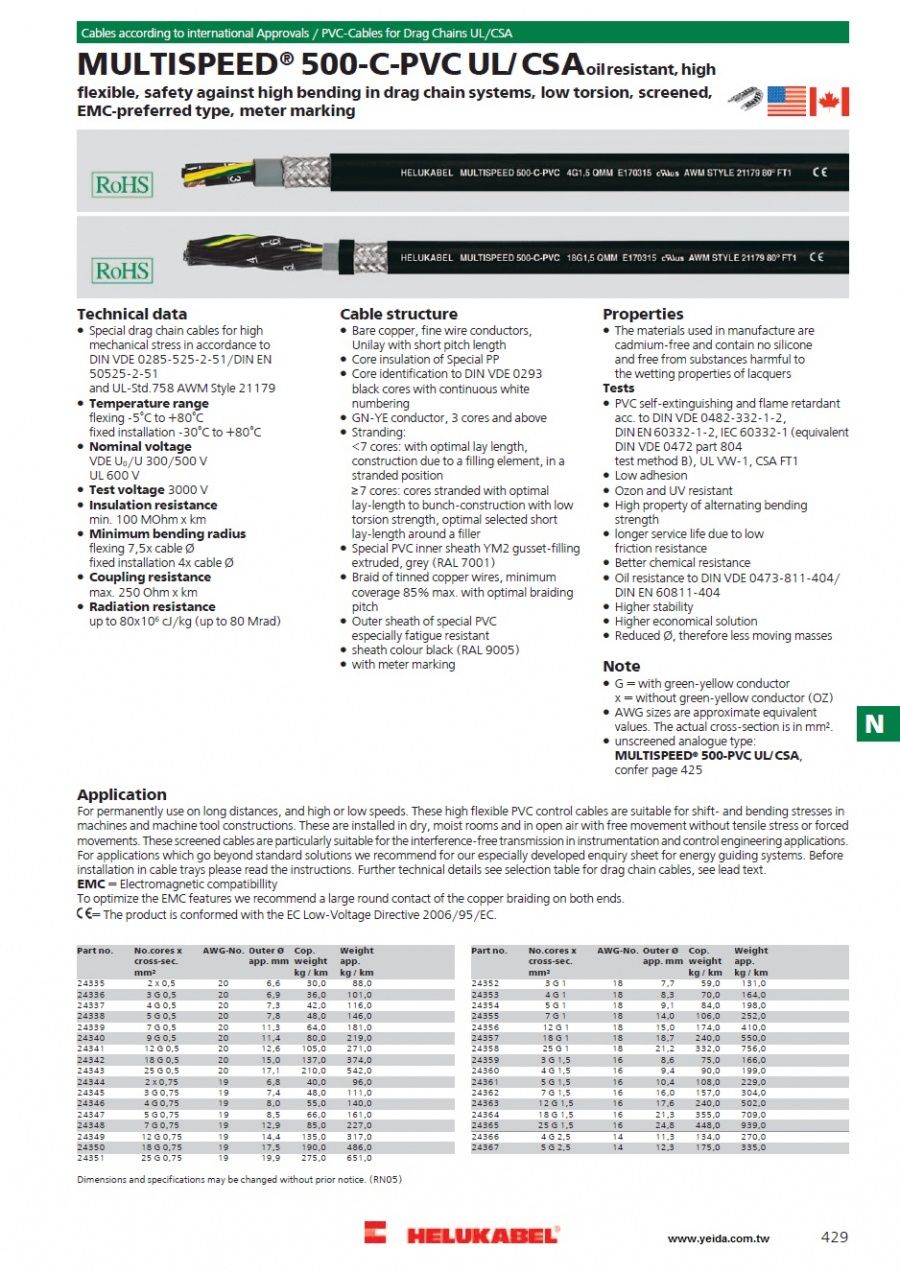

MULTISPEED® 500-C-PVC UL/CSA high flexible, safety against high bending in drag chain systems,oil resistant, low torsion, screened, EMC-preferred type, meter marking
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Cable structure
Bare copper, fine wire conductors, Unilay with short pitch length
Core insulation of Special PP
Core identification to DIN VDE 0293 black cores with continuous white numbering
GN-YE conductor, 3 cores and above
Stranding: <7 cores: with optimal lay length, construction due to a filling element, in a stranded position ≥7 cores: cores stranded with optimal lay-length to bunch-construction with low torsion strength, optimal selected short lay-length around a filler
Special PVC inner sheath YM2 gusset-filling extruded, grey (RAL 7001)
Braid of tinned copper wires, minimum coverage 85% max. with optimal braiding pitch
Outer sheath of special PVC especially fatigue resistant
sheath colour black (RAL 9005)
with meter marking
Properties
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B), UL VW-1, CSA FT1
Low adhesion
Ozon and UV resistant
High property of alternating bending strength
longer service life due to low friction resistance
Better chemical resistance
Oil resistance to DIN VDE 0473-811-404/ DIN EN 60811-404
Higher stability
Higher economical solution
Reduced Ø, therefore less moving masses
Note
G = with green-yellow conductor x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
For permanently use on long distances, and high or low speeds. These high flexible PVC control cables are suitable for shift- and bending stresses in machines and machine tool constructions. These are installed in dry, moist rooms and in open air with free movement without tensile stress or forced movements. These screened cables are particularly suitable for the interference-free transmission in instrumentation and control engineering applications. For applications which go beyond standard solutions we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text. EMC = Electromagnetic compatibillity To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
