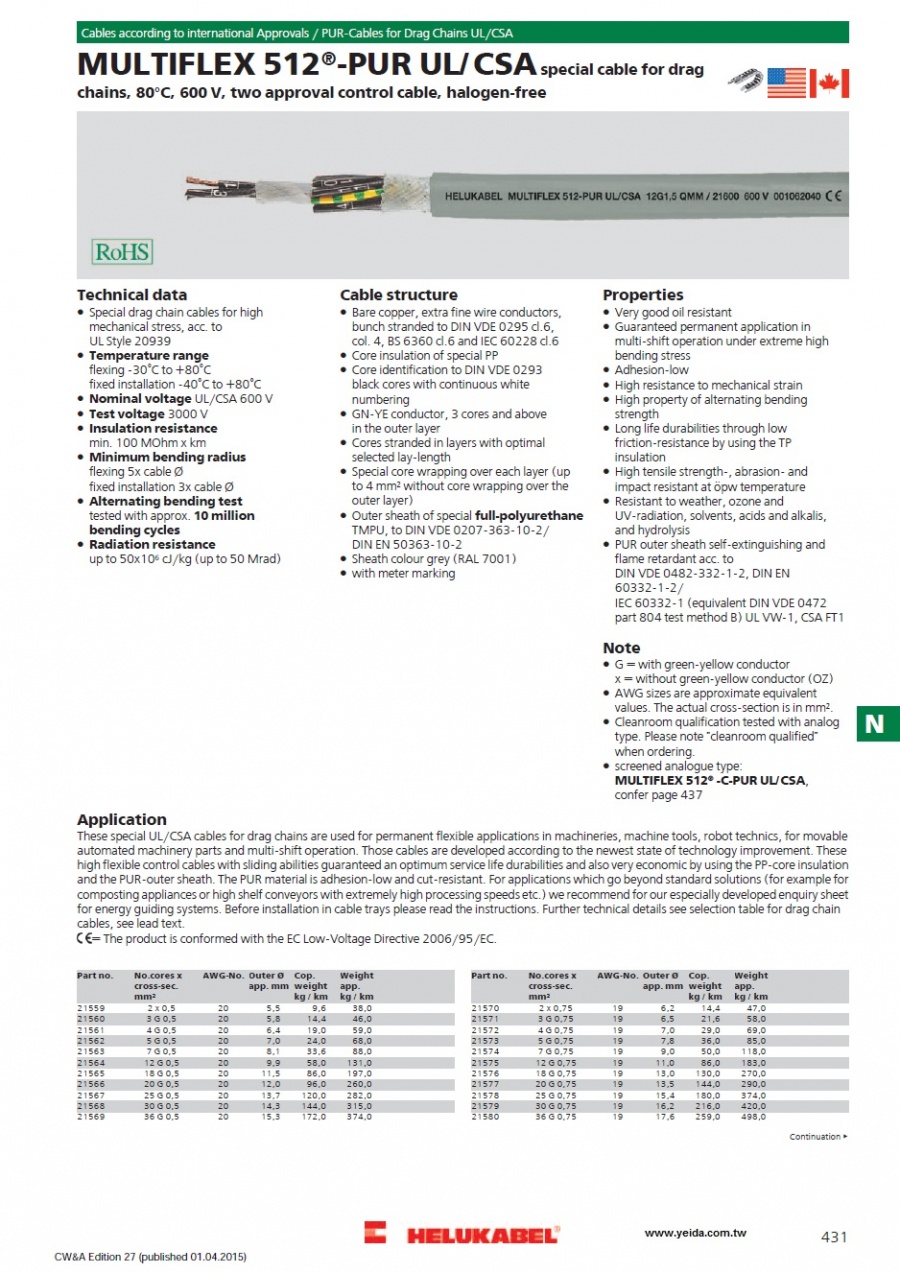

MULTIFLEX 512®-PUR UL/CSA special cable for drag chains

產品搜尋

分　類：
關鍵字：

首頁 > Power/Data-Cable(進口電線電纜)> HELUKABEL-Wire and Cable > HELUKABEL-Industrial UL/CSA Drag Chain Cables

MULTIFLEX 512®-PUR UL/CSA special cable for drag chains

30169801

商品編號: HELUKABEL-MULTIFLEX512-PUR

MULTIFLEX 512®-PUR UL/CSA special cable for drag chains

MULTIFLEX 512®-PUR UL/CSA special cable for drag chains, 80°C, 600V, two approval control cable, halogen-free

★★★★商品說明★★★★

Technical data

Special drag chain cables for high
mechanical stress, acc. to
UL Style 20939
Temperature range
flexing -30°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage UL/CSA 600 V
Test voltage 3000 V
Insulation resistance
min. 100 MOhm x km
Minimum bending radius
flexing 5x cable Ø
fixed installation 3x cable Ø
Alternating bending test
tested with approx. 10 million
bending cycles
Radiation resistance
up to 50x10⁶ cJ/kg (up to 50 Mrad)

Cable structure

Bare copper, extra fine wire conductors,
bunch stranded to DIN VDE 0295 cl.6,
col. 4, BS 6360 cl.6 and IEC 60228 cl.6
Core insulation of special PP
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layers with optimal
selected lay-length
Special core wrapping over each layer (up
to 4 mm² without core wrapping over the
outer layer)
Outer sheath of special full-polyurethane
TMPU, to DIN VDE 0207-363-10-2/
DIN EN 50363-10-2
Sheath colour grey (RAL 7001)
with meter marking

Properties

Very good oil resistant
Guaranteed permanent application in
multi-shift operation under extreme high
bending stress
Adhesion-low
High resistance to mechanical strain
High property of alternating bending
strength
Long life durabilities through low
friction-resistance by using the TP
insulation
High tensile strength-, abrasion- and
impact resistant at öpw temperature
Resistant to weather, ozone and
UV-radiation, solvents, acids and alkalis,
and hydrolysis
PUR outer sheath self-extinguishing and
flame retardant acc. to
DIN VDE 0482-332-1-2, DIN EN 60332-1-2/
IEC 60332-1 (equivalent DIN VDE 0472
part 804 test method B) UL VW-1, CSA FT1

Note

G = with green-yellow conductor
x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
Cleanroom qualification tested with analog
type. Please note "cleanroom qualified"
when ordering.
screened analogue type:
MULTIFLEX 512® -C-PUR UL/CSA

when ordering.

screened analogue type:
MULTIFLEX 512® -C-PUR UL/CSA

" />

Application

These special UL/CSA cables for drag chains are used for permanent flexible applications in machineries, machine tools, robot technics, for movable automated machinery parts and multi-shift operation. Those cables are developed according to the newest state of technology improvement. These high flexible control cables with sliding abilities guaranteed an optimum service life durabilities and also very economic by using the PP-core insulation and the PUR-outer sheath. The PUR material is adhesion-low and cut-resistant. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
21559	2 x 0,5	20	5,5	9,6	38,0
21560	3 G 0,5	20	5,8	14,4	46,0
21561	4 G 0,5	20	6,4	19,0	59,0
21562	5 G 0,5	20	7,0	24,0	68,0
21563	7 G 0,5	20	8,1	33,6	88,0
21564	12 G 0,5	20	9,9	58,0	131,0
21565	18 G 0,5	20	11,5	86,0	197,0
21566	20 G 0,5	20	12,0	96,0	260,0
21567	25 G 0,5	20	13,7	120,0	282,0
21568	30 G 0,5	20	14,3	144,0	315,0
21569	36 G 0,5	20	15,3	172,0	374,0
21570	2 x 0,75	19	6,2	14,4	47,0
21571	3 G 0,75	19	6,5	21,6	58,0
21572	4 G 0,75	19	7,0	29,0	69,0
21573	5 G 0,75	19	7,8	36,0	85,0
21574	7 G 0,75	19	9,0	50,0	118,0
21575	12 G 0,75	19	11,0	86,0	183,0
21576	18 G 0,75	19	13,0	130,0	270,0
21577	20 G 0,75	19	13,5	144,0	290,0
21578	25 G 0,75	19	15,4	180,0	374,0
21579	30 G 0,75	19	16,2	216,0	420,0
21580	36 G 0,75	19	17,6	259,0	498,0
21581	2 x 1	18	6,9	19,2	55,0
21582	3 G 1	18	7,4	29,0	70,0
21583	4 G 1	18	8,0	38,0	86,0
21584	5 G 1	18	8,7	48,0	102,0
21585	7 G 1	18	10,2	67,0	143,0
21586	12 G 1	18	12,6	115,0	225,0
21587	18 G 1	18	14,8	173,0	334,0
21588	20 G 1	18	15,8	192,0	370,0
21589	25 G 1	18	18,1	240,0	460,0
21590	30 G 1	18	18,5	288,0	530,0
21591	36 G 1	18	20,1	346,0	625,0
21592	41 G 1	18	22,0	410,0	779,0
21593	50 G 1	18	24,0	498,0	953,0
21594	65 G 1	18	27,2	650,0	1205,0
21595	2 x 1,5	16	7,6	29,0	70,0
21596	3 G 1,5	16	8,1	43,0	90,0
21597	4 G 1,5	16	8,7	58,0	106,0
21598	5 G 1,5	16	9,7	72,0	145,0
21599	7 G 1,5	16	11,3	101,0	205,0
21600	12 G 1,5	16	13,8	173,0	320,0
21601	18 G 1,5	16	16,3	259,0	465,0
21602	20 G 1,5	16	17,3	288,0	510,0
21603	25 G 1,5	16	19,8	360,0	650,0
21604	30 G 1,5	16	20,3	432,0	750,0
21605	36 G 1,5	16	22,2	518,0	880,0
21606	42 G 1,5	16	24,0	628,0	1209,0
21607	50 G 1,5	16	26,2	749,0	1449,0
21608	61 G 1,5	16	28,9	912,0	1712,0
21609	2 x 2,5	14	9,2	48,0	115,0
21610	3 G 2,5	14	9,7	72,0	162,0
21611	4 G 2,5	14	10,5	96,0	196,0
21612	5 G 2,5	14	11,6	120,0	230,0
21613	7 G 2,5	14	13,8	168,0	312,0
21614	12 G 2,5	14	16,9	288,0	532,0
21615	18 G 2,5	14	20,0	432,0	762,0
21616	20 G 2,5	14	21,2	480,0	858,0
21617	25 G 2,5	14	24,4	600,0	998,0
21618	4 G 4	12	13,2	154,0	283,0
21619	5 G 4	12	14,6	192,0	349,0
21620	7 G 4	12	17,6	79,0	498,0
21621	4 G 6	10	14,4	230,0	432,0
21622	5 G 6	10	15,9	288,0	529,0
21623	7 G 6	10	19,2	403,0	782,0
21624	4 G 10	8	18,4	384,0	685,0
21625	5 G 10	8	20,7	480,0	817,0
21626	7 G 10	8	24,7	672,0	1023,0
21627	4 G 16	6	21,3	614,0	1042,0
21628	5 G 16	6	23,8	768,0	1292,0
21629	7 G 16	6	28,6	1075,0	1709,0
