30169803

商品編號: HELUKABEL-MULTISPEED-500-PUR

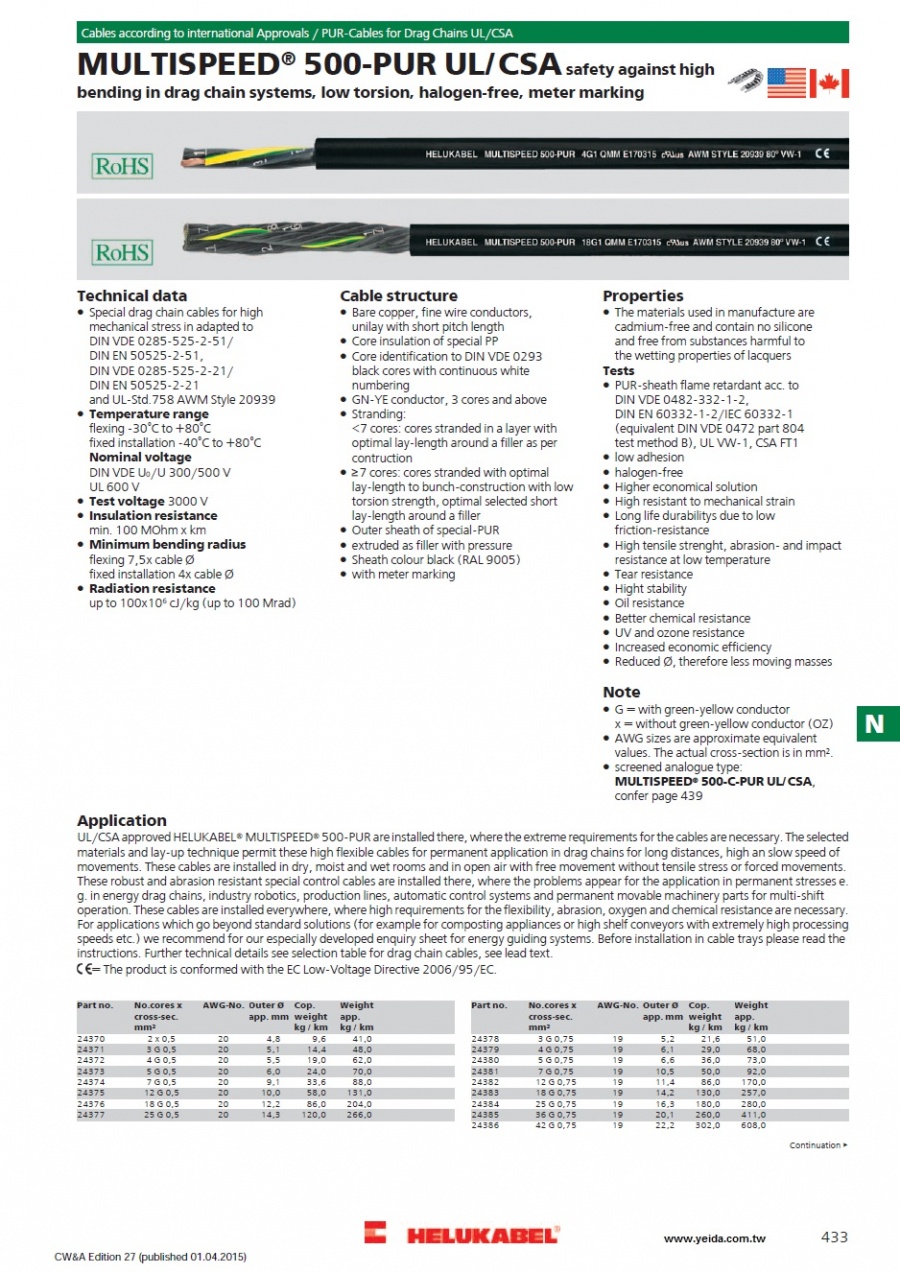

MULTISPEED® 500-PUR UL/CSA

MULTISPEED® 500-PUR UL/CSA safety against high bending in drag chain systems,low torsion, halogen-free, meter marking

★★★★商品說明★★★★

Technical data

Special drag chain cables for high
mechanical stress in adapted to
DIN VDE 0285-525-2-51/
DIN EN 50525-2-51,
DIN VDE 0285-525-2-21/
DIN EN 50525-2-21
and UL-Std.758 AWM Style 20939
Temperature range
flexing -30°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage
DIN VDE U₀/U 300/500 V
UL 600 V
Test voltage 3000 V
Insulation resistance
min. 100 MOhm x km
Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø
Radiation resistance
up to 100x10⁶ cJ/kg (up to 100 Mrad)

Cable structure

Bare copper, fine wire conductors,
unilay with short pitch length
Core insulation of special PP
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
Stranding:
<7 cores:="" cores="" stranded="" in="" a="" layer="" with="">
optimal lay-length around a filler as per
contruction
≥7 cores: cores stranded with optimal
lay-length to bunch-construction with low
torsion strength, optimal selected short
lay-length around a filler
Outer sheath of special-PUR
extruded as filler with pressure
Sheath colour black (RAL 9005)
with meter marking

Properties

The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Tests

PUR-sheath flame retardant acc. to
DIN VDE 0482-332-1-2,
DIN EN 60332-1-2/IEC 60332-1
(equivalent DIN VDE 0472 part 804
test method B), UL VW-1, CSA FT1
low adhesion
halogen-free
Higher economical solution
High resistant to mechanical strain
Long life durabilitys due to low
friction-resistance
High tensile strenght, abrasion- and impact
resistance at low temperature
Tear resistance
Hight stability
Oil resistance
Better chemical resistance
UV and ozone resistance
Increased economic efficiency
Reduced Ø, therefore less moving masses

Note

G = with green-yellow conductor
x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
screened analogue type:
MULTISPEED® 500-C-PUR UL/CSA

Application

UL/CSA approved HELUKABEL® MULTISPEED® 500-PUR are installed there, where the extreme requirements for the cables are necessary. The selected materials and lay-up technique permit these high flexible cables for permanent application in drag chains for long distances, high an slow speed of movements. These cables are installed in dry, moist and wet rooms and in open air with free movement without tensile stress or forced movements. These robust and abrasion resistant special control cables are installed there, where the problems appear for the application in permanent stresses e. g. in energy drag chains, industry robotics, production lines, automatic control systems and permanent movable machinery parts for multi-shift operation. These cables are installed everywhere, where high requirements for the flexibility, abrasion, oxygen and chemical resistance are necessary. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
24370	2 x 0,5	20	4,8	9,6	41,0
24371	3 G 0,5	20	5,1	14,4	48,0
24372	4 G 0,5	20	5,5	19,0	62,0
24373	5 G 0,5	20	6,0	24,0	70,0
24374	7 G 0,5	20	9,1	33,6	88,0
24375	12 G 0,5	20	10,0	58,0	131,0
24376	18 G 0,5	20	12,2	86,0	204,0
24377	25 G 0,5	20	14,3	120,0	266,0
24378	3 G 0,75	19	5,2	21,6	51,0
24379	4 G 0,75	19	6,1	29,0	68,0
24380	5 G 0,75	19	6,6	36,0	73,0
24381	7 G 0,75	19	10,5	50,0	92,0
24382	12 G 0,75	19	11,4	86,0	170,0
24383	18 G 0,75	19	14,2	130,0	257,0
24384	25 G 0,75	19	16,3	180,0	280,0
24385	36 G 0,75	19	20,1	260,0	411,0
24386	42 G 0,75	19	22,2	302,0	608,0
24387	3 G 1	18	5,9	29,0	59,0
24388	4 G 1	18	6,4	38,0	71,0
24389	5 G 1	18	7,0	48,0	84,0
24390	7 G 1	18	11,2	67,0	111,0
24391	12 G 1	18	12,3	115,0	200,0
24392	18 G 1	18	15,1	173,0	286,0
24393	25 G 1	18	17,6	240,0	370,0
24331	36 G 1	18	21,6	346,0	485,0
24394	3 G 1,5	16	6,7	43,0	81,0
24395	4 G 1,5	16	7,3	58,0	102,0
24396	5 G 1,5	16	8,0	72,0	121,0
24397	7 G 1,5	16	13,2	101,0	164,0
24398	12 G 1,5	16	15,0	173,0	293,0
24399	18 G 1,5	16	17,7	259,0	450,0
24400	25 G 1,5	16	20,5	360,0	631,0
24332	36 G 1,5	16	25,6	518,0	779,0
24401	4 G 2,5	14	8,9	86,0	173,0
24402	5 G 2,5	14	9,8	120,0	220,0
24403	7 G 2,5	14	16,1	168,0	290,0
24404	12 G 2,5	14	17,8	288,0	504,0
24405	18 G 2,5	14	21,8	432,0	719,0
24406	25 G 2,5	14	24,4	600,0	940,0
