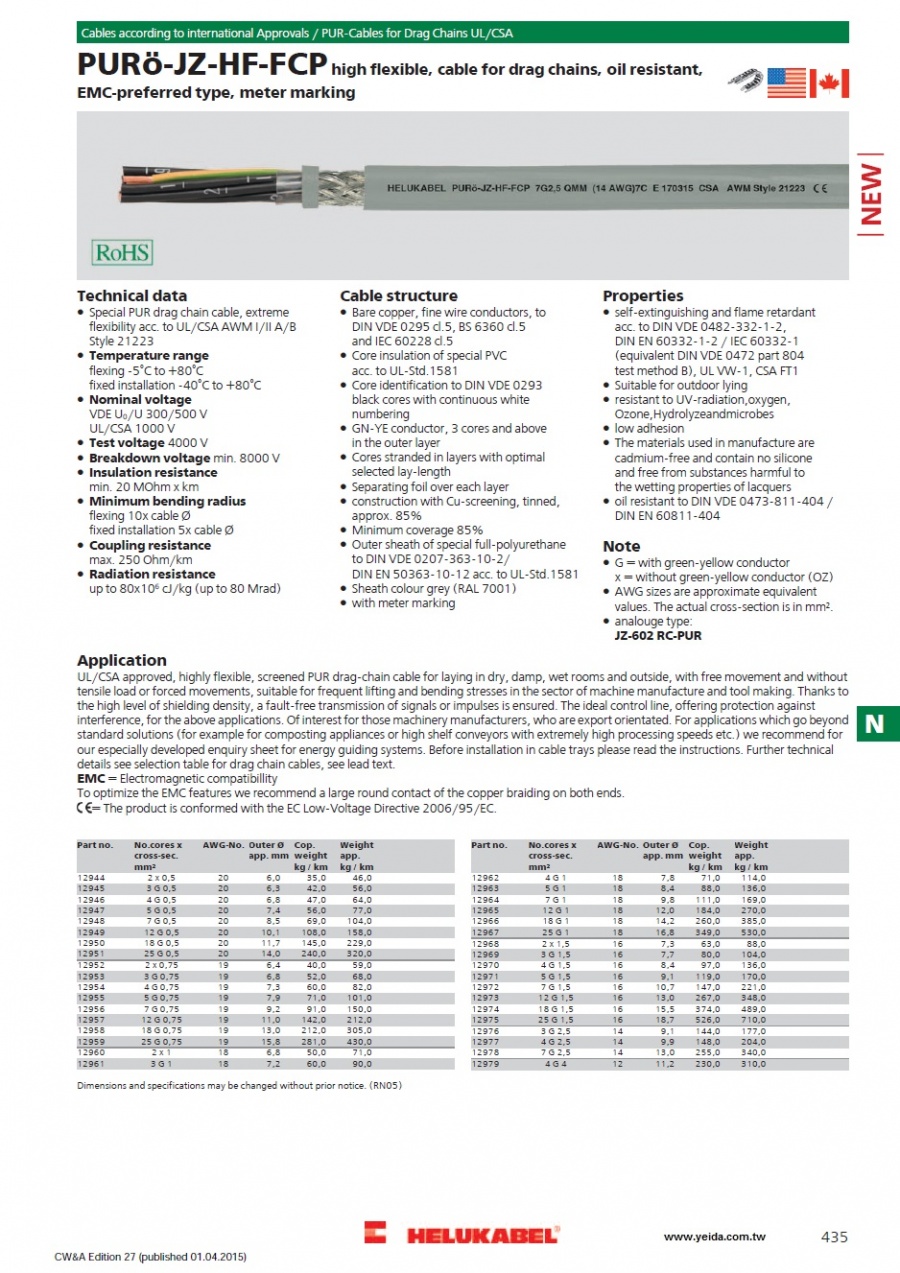

PURö-JZ-HF-FCP / PURö-OZ-HF-FCP

PURö-JZ-HF-FCP / PURö-OZ-HF-FCP high flexible, cable for drag chains,oil resistant, EMC-preferred type, meter marking

★★★★商品說明★★★★

Technical data

Special PUR drag chain cable, extreme
flexibility acc. to UL/CSA AWM I/II A/B
Style 21223
Temperature range
flexing -5°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage
VDE U₀/U 300/500 V
UL/CSA 1000 V
Test voltage 4000 V
Breakdown voltage min. 8000 V
Insulation resistance
min. 20 MOhm x km
Minimum bending radius
flexing 10x cable Ø
fixed installation 5x cable Ø
Coupling resistance
max. 250 Ohm/km
Radiation resistance
up to 80x10⁶ cJ/kg (up to 80 Mrad)

Cable structure

Bare copper, fine wire conductors, to
DIN VDE 0295 cl.5, BS 6360 cl.5
and IEC 60228 cl.5
Core insulation of special PVC
acc. to UL-Std.1581
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layers with optimal
selected lay-length
Separating foil over each layer
construction with Cu-screening, tinned,
approx. 85%
Minimum coverage 85%
Outer sheath of special full-polyurethane
to DIN VDE 0207-363-10-2/
DIN EN 50363-10-12 acc. to UL-Std.1581
Sheath colour grey (RAL 7001)
with meter marking

Properties

self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2 / IEC 60332-1
(equivalent DIN VDE 0472 part 804
test method B), UL VW-1, CSA FT1
Suitable for outdoor lying
resistant to UV-radiation, oxygen,
Ozone, Hydrolyze and microbes
low adhesion
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers
oil resistant to DIN VDE 0473-811-404 /
DIN EN 60811-404

Note

G = with green-yellow conductor
x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
analouge type:
JZ-602 RC-PUR

Application

UL/CSA approved, highly flexible, screened PUR drag-chain cable for laying in dry, damp, wet rooms and outside, with free movement and without tensile load or forced movements, suitable for frequent lifting and bending stresses in the sector of machine manufacture and tool making. Thanks to the high level of shielding density, a fault-free transmission of signals or impulses is ensured. The ideal control line, offering protection against interference, for the above applications. Of interest for those machinery manufacturers, who are export orientated. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
12944	2 x 0,5	20	6,0	35,0	46,0
12945	3 G 0,5	20	6,3	42,0	56,0
12946	4 G 0,5	20	6,8	47,0	64,0
12947	5 G 0,5	20	7,4	56,0	77,0
12948	7 G 0,5	20	8,5	69,0	104,0
12949	12 G 0,5	20	10,1	108,0	158,0
12950	18 G 0,5	20	11,7	145,0	229,0
12951	25 G 0,5	20	14,0	240,0	320,0
12952	2 x 0,75	19	6,4	40,0	59,0
12953	3 G 0,75	19	6,8	52,0	68,0
12954	4 G 0,75	19	7,3	60,0	82,0
12955	5 G 0,75	19	7,9	71,0	101,0
12956	7 G 0,75	19	9,2	91,0	150,0
12957	12 G 0,75	19	11,0	142,0	212,0
12958	18 G 0,75	19	13,0	212,0	305,0
12959	25 G 0,75	19	15,8	281,0	430,0
12960	2 x 1	18	6,8	50,0	71,0
12961	3 G 1	18	7,2	60,0	90,0
12962	4 G 1	18	7,8	71,0	114,0
12963	5 G 1	18	8,4	88,0	136,0
12964	7 G 1	18	9,8	111,0	169,0
12965	12 G 1	18	12,0	184,0	270,0
12966	18 G 1	18	14,2	260,0	385,0
12967	25 G 1	18	16,8	349,0	530,0
12968	2 x 1,5	16	7,3	63,0	88,0
12969	3 G 1,5	16	7,7	80,0	104,0
12970	4 G 1,5	16	8,4	97,0	136,0
12971	5 G 1,5	16	9,1	119,0	170,0
12972	7 G 1,5	16	10,7	147,0	221,0
12973	12 G 1,5	16	13,0	267,0	348,0
12974	18 G 1,5	16	15,5	374,0	489,0
12975	25 G 1,5	16	18,7	526,0	710,0
12976	3 G 2,5	14	9,1	144,0	177,0
12977	4 G 2,5	14	9,9	148,0	204,0
12978	7 G 2,5	14	13,0	255,0	340,0
12979	4 G 4	12	11,2	230,0	310,0
