JZ-602 RC-C-PUR UL/CSA Drag chain Cables PUR

30170124

商品編號: HELUKABEL-JZ-602RC-C-PUR

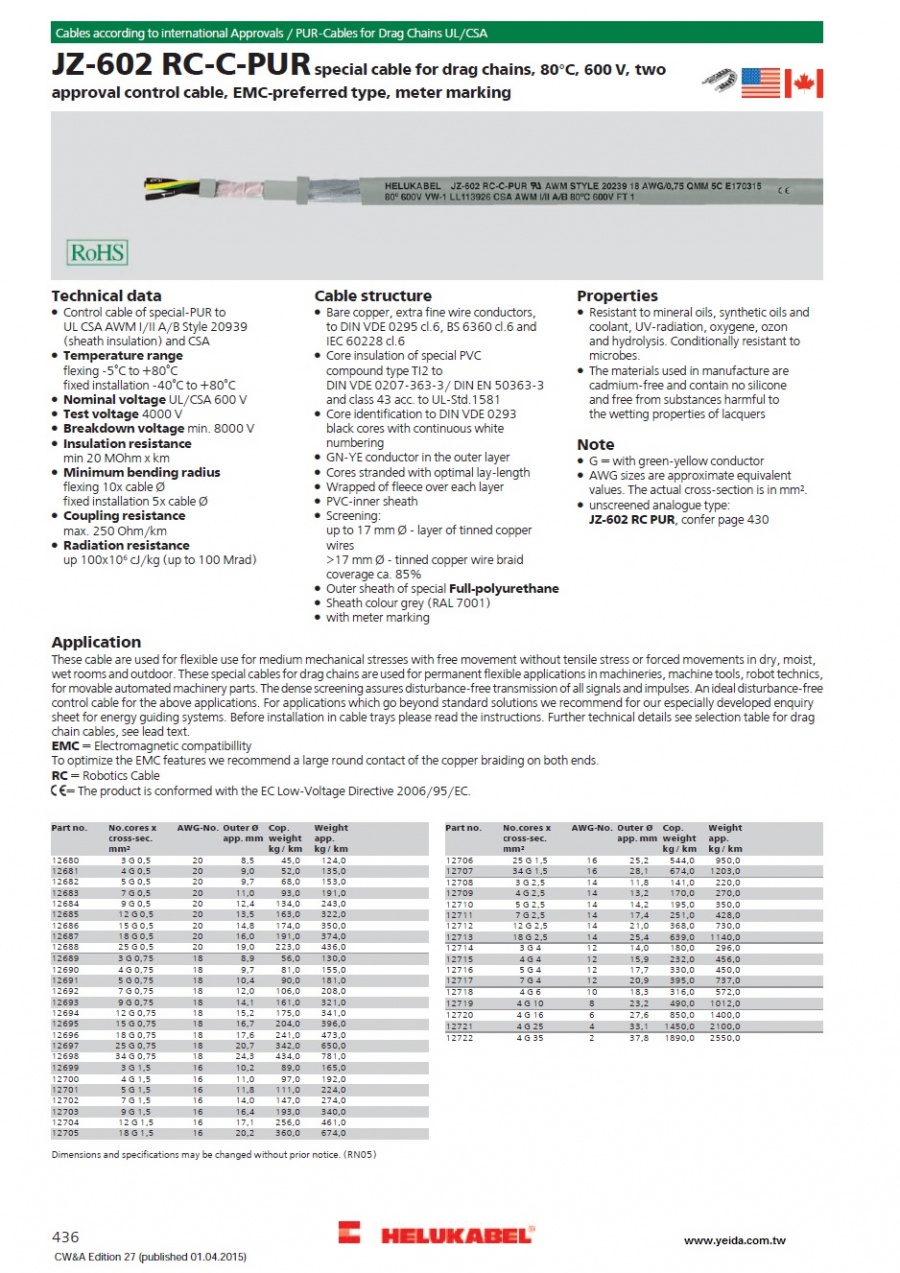

JZ-602 RC-C-PUR UL/CSA Drag chain Cables PUR

JZ-602 RC-C-PUR special cable for drag chains, 80°C, 600V, two approval control cable, EMC-preferred type, meter marking

★★★★商品說明★★★★

Technical datata

Control cable of special-PUR to
UL CSA AWM I/II A/B Style 20939
(sheath insulation) and CSA
Temperature range
flexing -5°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage UL/CSA 600 V
Test voltage 4000 V
Breakdown voltage min. 8000 V
Insulation resistance
min 20 MOhm x km
Minimum bending radius
flexing 10x cable Ø
fixed installation 5x cable Ø
Coupling resistance
max. 250 Ohm/km
Radiation resistance
up 100x10⁶ cJ/kg (up to 100 Mrad)

Cable structure

Bare copper, extra fine wire conductors,
to DIN VDE 0295 cl.6, BS 6360 cl.6 and
IEC 60228 cl.6
Core insulation of special PVC
compound type TI2 to
DIN VDE 0207-363-3/ DIN EN 50363-3
and class 43 acc. to UL-Std.1581
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor in the outer layer
Cores stranded with optimal lay-length
Wrapped of fleece over each layer
PVC-inner sheath
Screening:
up to 17 mm Ø - layer of tinned copper
wires
>17 mm Ø - tinned copper wire braid
coverage ca. 85%
Outer sheath of special full-polyurethane
Sheath colour grey (RAL 7001)
with meter marking

Properties

Resistant to mineral oils, synthetic oils and
coolant, UV-radiation, oxygene, ozon
and hydrolysis. Conditionally resistant to
microbes.
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Note

G = with green-yellow conductor
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
unscreened analogue type:
JZ-602 RC PUR

Application

These cable are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist, wet rooms and outdoor. These special cables for drag chains are used for permanent flexible applications in machineries, machine tools, robot technics, for movable automated machinery parts. The dense screening assures disturbance-free transmission of all signals and impulses. An ideal disturbance-free control cable for the above applications. For applications which go beyond standard solutions we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
RC = Robotics Cable
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
12680	3 G 0,5	20	8,5	45,0	124,0
12681	4 G 0,5	20	9,0	52,0	135,0
12682	5 G 0,5	20	9,7	68,0	153,0
12683	7 G 0,5	20	11,0	93,0	191,0
12684	9 G 0,5	20	12,4	134,0	243,0
12685	12 G 0,5	20	13,5	163,0	322,0
12686	15 G 0,5	20	14,8	174,0	350,0
12687	18 G 0,5	20	16,0	191,0	374,0
12688	25 G 0,5	20	19,0	223,0	436,0
12689	3 G 0,75	18	8,9	56,0	130,0
12690	4 G 0,75	18	9,7	81,0	155,0
12691	5 G 0,75	18	10,4	90,0	181,0
12692	7 G 0,75	18	12,0	106,0	208,0
12693	9 G 0,75	18	14,1	161,0	321,0
12694	12 G 0,75	18	15,2	175,0	341,0
12695	15 G 0,75	18	16,7	204,0	396,0
12696	18 G 0,75	18	17,6	241,0	473,0
12697	25 G 0,75	18	20,7	342,0	650,0
12698	34 G 0,75	18	24,3	434,0	781,0
12699	3 G 1,5	16	10,2	89,0	165,0
12700	4 G 1,5	16	11,0	97,0	192,0
12701	5 G 1,5	16	11,8	111,0	224,0
12702	7 G 1,5	16	14,0	147,0	274,0
12703	9 G 1,5	16	16,4	193,0	340,0
12704	12 G 1,5	16	17,1	256,0	461,0
12705	18 G 1,5	16	20,2	360,0	674,0
12706	25 G 1,5	16	25,2	544,0	950,0
12707	34 G 1,5	16	28,1	674,0	1203,0
12708	3 G 2,5	14	11,8	141,0	220,0
12709	4 G 2,5	14	13,2	170,0	270,0
12710	5 G 2,5	14	14,2	195,0	350,0
12711	7 G 2,5	14	17,4	251,0	428,0
12712	12 G 2,5	14	21,0	368,0	730,0
12713	18 G 2,5	14	25,4	639,0	1140,0
12714	3 G 4	12	14,0	180,0	296,0
12715	4 G 4	12	15,9	232,0	456,0
12716	5 G 4	12	17,7	330,0	450,0
12717	7 G 4	12	20,9	395,0	737,0
12718	4 G 6	10	18,3	316,0	572,0
12719	4 G 10	8	23,2	490,0	1012,0
12720	4 G 16	6	27,6	850,0	1400,0
12721	4 G 25	4	33,1	1450,0	2100,0
12722	4 G 35	2	37,8	1890,0	2550,0
