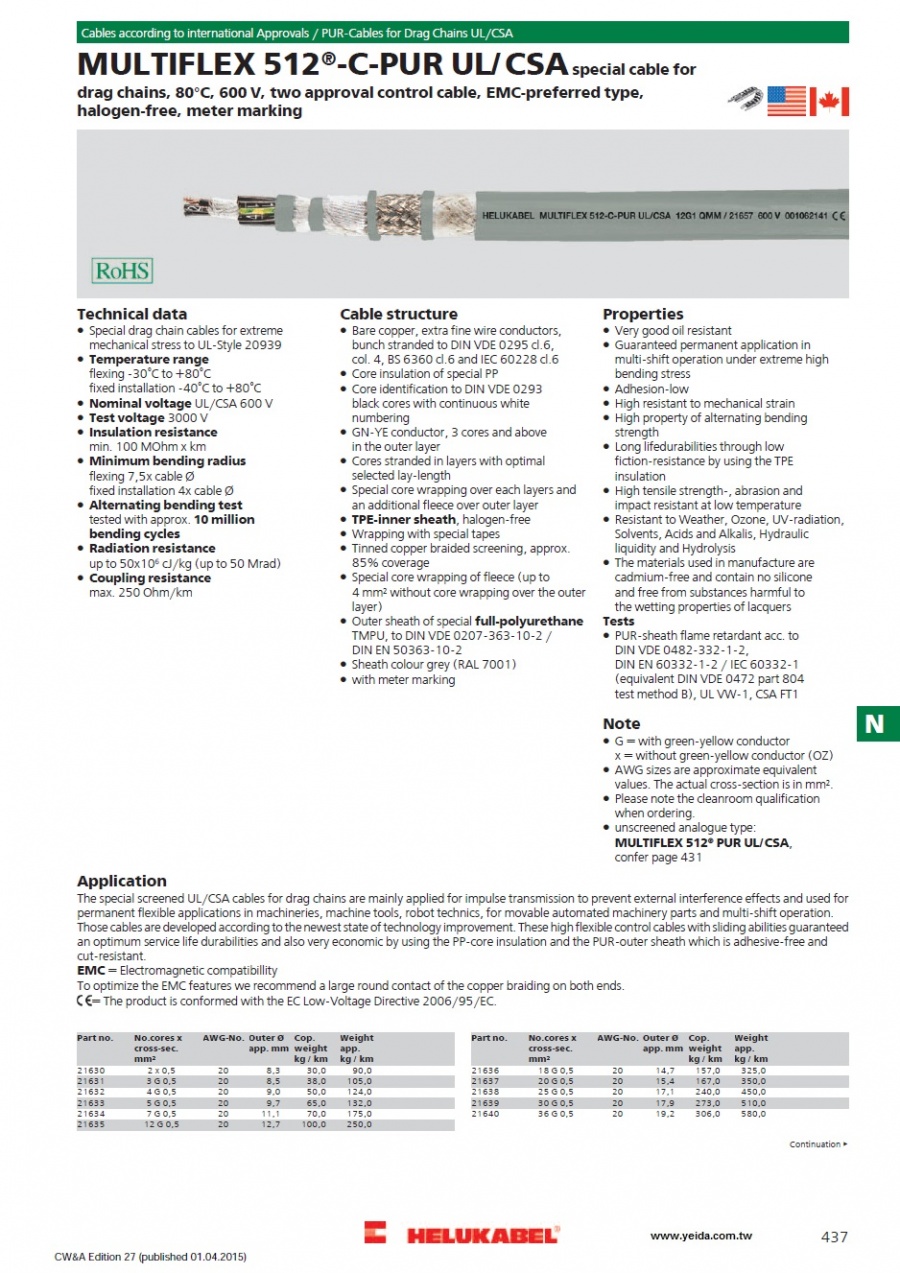

• Special drag chain cables for extreme
  mechanical stress to UL-Style 20939
• Temperature range
  flexing -30°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage UL/CSA 600 V
• Test voltage 3000 V
• Insulation resistance
  min. 100 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Alternating bending test
  tested with approx. 10 million
  bending cycles
• Radiation resistance
  up to 50x10⁶ cJ/kg (up to 50 Mrad)
• Coupling resistance
  max. 250 Ohm/km

• Bare copper, extra fine wire conductors,
  bunch stranded to DIN VDE 0295 cl.6,
  col. 4, BS 6360 cl.6 and IEC 60228 cl.6
• Core insulation of special PP
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with optimal
  selected lay-length
• Special core wrapping over each layers and
  an additional fleece over outer layer
• TPE-inner sheath, halogen-free
• Wrapping with special tapes
• Tinned copper braided screening, approx.
  85% coverage
• Special core wrapping of fleece (up to
  4 mm² without core wrapping over the outer
  layer)
• Outer sheath of special full-polyurethane
  TMPU, to DIN VDE 0207-363-10-2 /
  DIN EN 50363-10-2
• Sheath colour grey (RAL 7001)
• with meter marking

• Very good oil resistant

• Guaranteed permanent application in
  multi-shift operation under extreme high
  bending stress
• Adhesion-low
• High resistant to mechanical strain
• High property of alternating bending
  strength
• Long lifedurabilities through low
  fiction-resistance by using the TPE
  insulation

• High tensile strength-, abrasion and
  impact resistant at low temperature
• Resistant to Weather, Ozone, UV-radiation,
  Solvents, Acids and Alkalis, Hydraulic
  liquidity and Hydrolysis
• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PUR-sheath flame retardant acc. to
  DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2 / IEC 60332-1
  (equivalent DIN VDE 0472 part 804
  test method B), UL VW-1, CSA FT1

• G = with green-yellow conductor
  x = without green-yellow conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².
• Please note the cleanroom qualification
  when ordering.
• unscreened analogue type:
  MULTIFLEX 512® PUR UL/CSA
