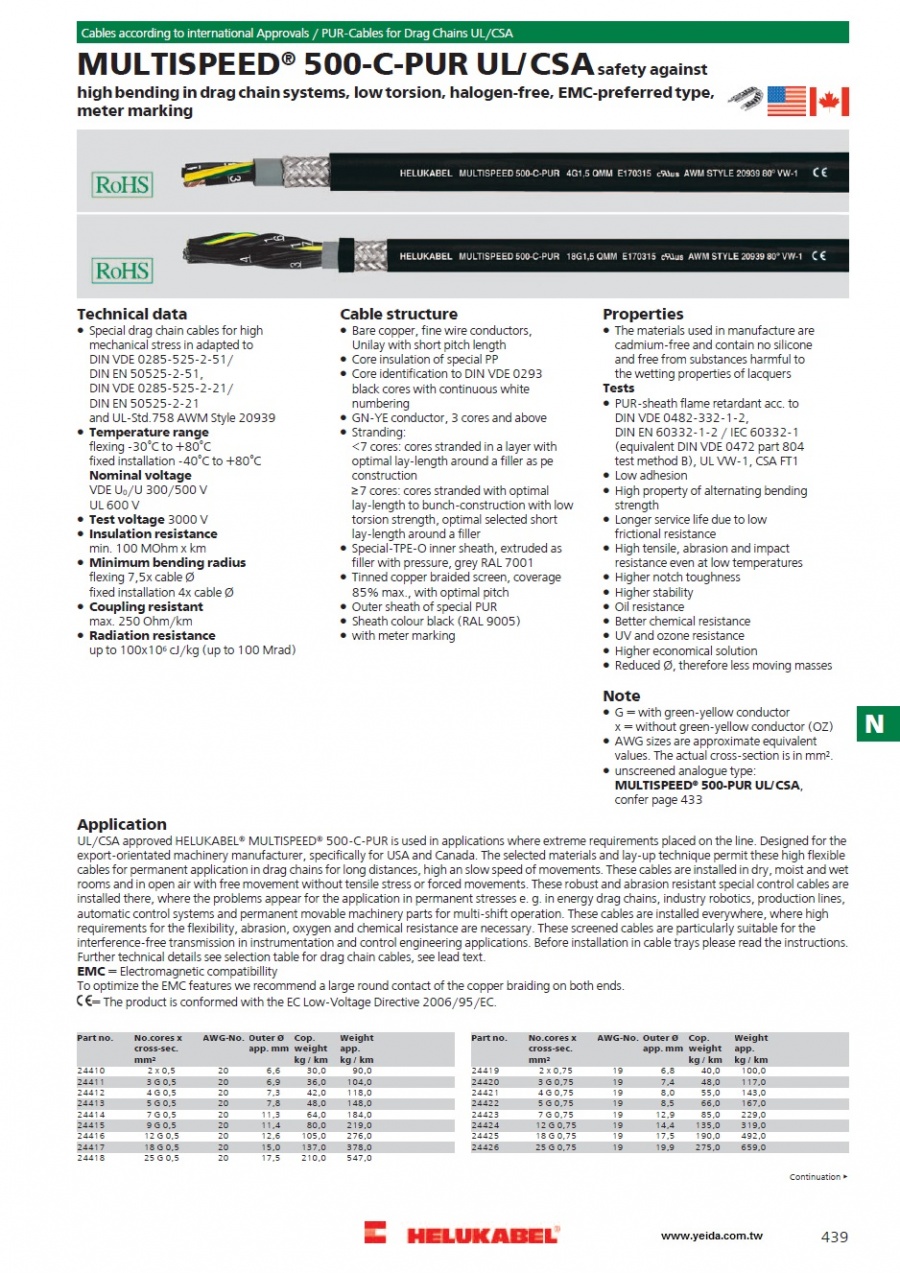

• Special drag chain cables for high
  mechanical stress in adapted to
  DIN VDE 0285-525-2-51/
  DIN EN 50525-2-51,
  DIN VDE 0285-525-2-21/
  DIN EN 50525-2-21
  and UL-Std.758 AWM Style 20939
• Temperature range
  flexing -30°C to +80°C
  fixed installation -40°C to +80°C
  Nominal voltage
  VDE U₀/U 300/500 V
  UL 600 V
• Test voltage 3000 V
• Insulation resistance
  min. 100 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Coupling resistant
  max. 250 Ohm/km
• Radiation resistance
  up to 100x10⁶ cJ/kg (up to 100 Mrad)

• Bare copper, fine wire conductors,
  Unilay with short pitch length
• Core insulation of special PP
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
• Stranding:
  <7 cores: cores stranded in a layer with
  optimal lay-length around a filler as pe
  construction
  ≥7 cores: cores stranded with optimal
  lay-length to bunch-construction with low
  torsion strength, optimal selected short
  lay-length around a filler
• Special-TPE-O inner sheath, extruded as
  filler with pressure, grey RAL 7001
• Tinned copper braided screen, coverage
  85% max., with optimal pitch
• Outer sheath of special PUR
• Sheath colour black (RAL 9005)
• with meter marking

• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PUR-sheath flame retardant acc. to
  DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2 / IEC 60332-1
  (equivalent DIN VDE 0472 part 804
  test method B), UL VW-1, CSA FT1
• Low adhesion
• High property of alternating bending
  strength
• Longer service life due to low
  frictional resistance
• High tensile, abrasion and impact
  resistance even at low temperatures
• Higher notch toughness
• Higher stability
• Oil resistance
• Better chemical resistance
• UV and ozone resistance
• Higher economical solution
• Reduced Ø, therefore less moving masses

• G = with green-yellow conductor
  x = without green-yellow conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².
• unscreened analogue type:
  MULTISPEED^® 500-PUR UL/CSA
