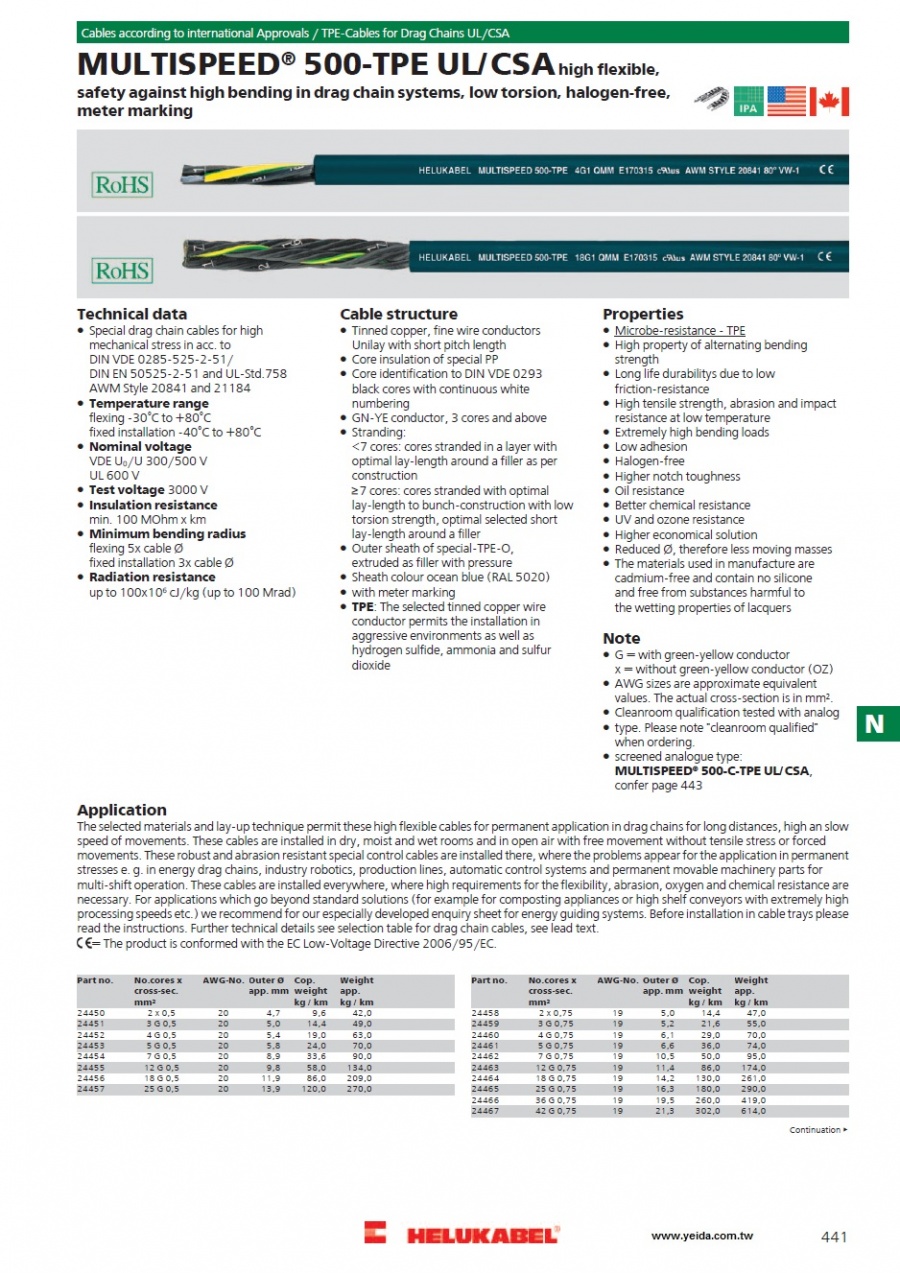

MULTISPEED® 500-TPE UL/CSA high flexible Drag chain Cables

30170140

商品編號: HELUKABEL-MULTISPEED-500-TPE

MULTISPEED® 500-TPE UL/CSA high flexible Drag chain Cables

MULTISPEED® 500-TPE UL/CSA high flexible, safety against high bending in drag chain systems, low torsion, halogen-free, meter marking

★★★★商品說明★★★★

Technical data

Special drag chain cables for high
mechanical stress in acc. to
DIN VDE 0285-525-2-51/
DIN EN 50525-2-51 and UL-Std.758
AWM Style 20841 and 21184
Temperature range
flexing -30°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage
VDE U₀/U 300/500 V
UL 600 V
Test voltage 3000 V
Insulation resistance
min. 100 MOhm x km
Minimum bending radius
flexing 5x cable Ø
fixed installation 3x cable Ø
Radiation resistance
up to 100x10⁶ cJ/kg (up to 100 Mrad)

Cable structure

Tinned copper, fine wire conductors
Unilay with short pitch length
Core insulation of special PP
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
Stranding:
<7 cores:="" cores="" stranded="" in="" a="" layer="">
optimal lay-length around a filler as per
construction
≥7 cores: cores stranded with optimal
lay-length to bunch-construction with low
torsion strength, optimal selected short
lay-length around a filler
Outer sheath of special-TPE-O,
extruded as filler with pressure
Sheath colour ocean blue (RAL 5020)
with meter marking
TPE: The selected tinned copper wire
conductor permits the installation in
aggressive environments as well as
hydrogen sulfide, ammonia and sulfur
dioxide

Properties

Microbe-resistance - TPE
High property of alternating bending
strength
Long life durabilitys due to low
friction-resistance
High tensile strength, abrasion and impact
resistance at low temperature
Extremely high bending loads
Low adhesion
Halogen-free
Higher notch toughness
Oil resistance
Better chemical resistance
UV and ozone resistance
Higher economical solution
Reduced Ø, therefore less moving masses
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Note

G = with green-yellow conductor
x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
Cleanroom qualification tested with analog
type. Please note "cleanroom qualified"
when ordering.
screened analogue type:
MULTISPEED^® 500-C-TPE UL/CSA

when ordering.

screened analogue type:
MULTISPEED^® 500-C-TPE UL/CSA

" />

Application

The selected materials and lay-up technique permit these high flexible cables for permanent application in drag chains for long distances, high an slow speed of movements. These cables are installed in dry, moist and wet rooms and in open air with free movement without tensile stress or forced movements. These robust and abrasion resistant special control cables are installed there, where the problems appear for the application in permanent stresses e. g. in energy drag chains, industry robotics, production lines, automatic control systems and permanent movable machinery parts for multi-shift operation. These cables are installed everywhere, where high requirements for the flexibility, abrasion, oxygen and chemical resistance are necessary. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
24450	2 x 0,5	20	4,7	9,6	42,0
24451	3 G 0,5	20	5,0	14,4	49,0
24452	4 G 0,5	20	5,4	19,0	63,0
24453	5 G 0,5	20	5,8	24,0	70,0
24454	7 G 0,5	20	8,9	33,6	90,0
24455	12 G 0,5	20	9,8	58,0	134,0
24456	18 G 0,5	20	11,9	86,0	209,0
24457	25 G 0,5	20	13,9	120,0	270,0
24458	2 x 0,75	19	5,0	14,4	47,0
24459	3 G 0,75	19	5,2	21,6	55,0
24460	4 G 0,75	19	6,1	29,0	70,0
24461	5 G 0,75	19	6,6	36,0	74,0
24462	7 G 0,75	19	10,5	50,0	95,0
24463	12 G 0,75	19	11,4	86,0	174,0
24464	18 G 0,75	19	14,2	130,0	261,0
24465	25 G 0,75	19	16,3	180,0	290,0
24466	36 G 0,75	19	19,5	260,0	419,0
24467	42 G 0,75	19	21,3	302,0	614,0
24468	2 x 1	18	5,2	19,2	50,0
24469	3 G 1	18	5,9	29,0	60,0
24470	4 G 1	18	6,4	38,0	74,0
24471	5 G 1	18	7,0	48,0	86,0
24472	7 G 1	18	11,2	67,0	114,0
24473	12 G 1	18	12,3	115,0	210,0
24474	18 G 1	18	15,1	173,0	291,0
24475	25 G 1	18	17,6	240,0	380,0
24476	3 G 1,5	16	6,7	43,0	84,0
24477	4 G 1,5	16	7,3	58,0	108,0
24478	5 G 1,5	16	8,0	72,0	126,0
24479	7 G 1,5	16	13,2	101,0	169,0
24480	12 G 1,5	16	14,4	173,0	299,0
24481	18 G 1,5	16	17,7	259,0	460,0
24482	25 G 1,5	16	19,8	360,0	640,0
24483	4 G 2,5	14	8,9	96,0	179,0
24484	5 G 2,5	14	9,8	120,0	230,0
24485	7 G 2,5	14	16,1	168,0	294,0
24486	12 G 2,5	14	17,8	288,0	510,0
24487	18 G 2,5	14	21,8	432,0	722,0
24488	25 G 2,5	14	24,4	600,0	950,0
