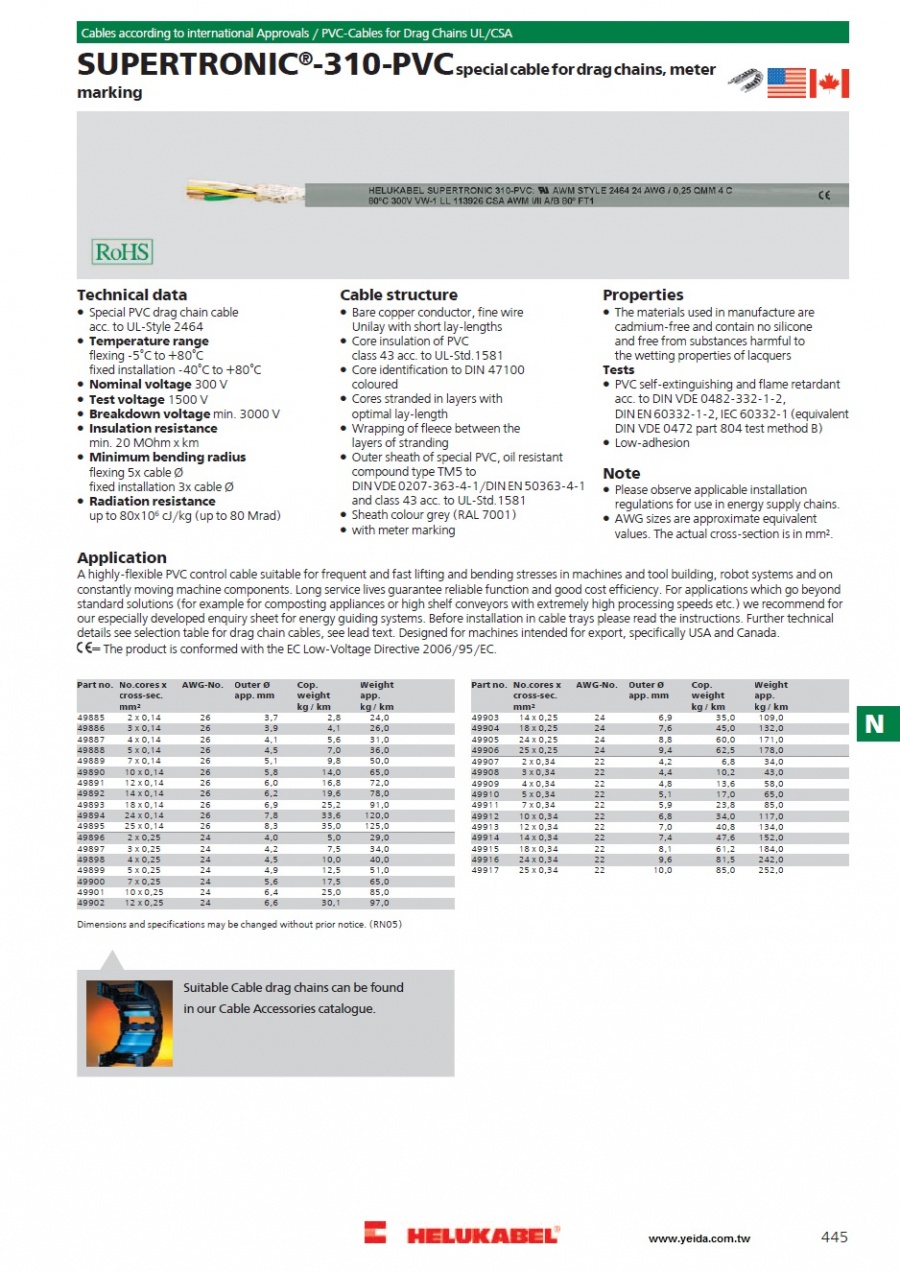

• Special PVC drag chain cable
  acc. to UL-Style 2464
• Temperature range
  flexing -5°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage 300 V
• Test voltage 1500 V
• Breakdown voltage min. 3000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 5x cable Ø
  fixed installation 3x cable Ø
• Radiation resistance
  up to 80x10⁶ cJ/kg (up to 80 Mrad)

• Bare copper conductor, fine wire
  Unilay with short lay-lengths
• Core insulation of PVC
  class 43 acc. to UL-Std.1581
• Core identification to DIN 47100
  coloured
• Cores stranded in layers with
  optimal lay-length
• Wrapping of fleece between the
  layers of stranding
• Outer sheath of special PVC, oil resistant
  compound type TM5 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
  and class 43 acc. to UL-Std.1581
• Sheath colour grey (RAL 7001)
• with meter marking

• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)
• Low-adhesion

• Please observe applicable installation
  regulations for use in energy supply chains.
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².
