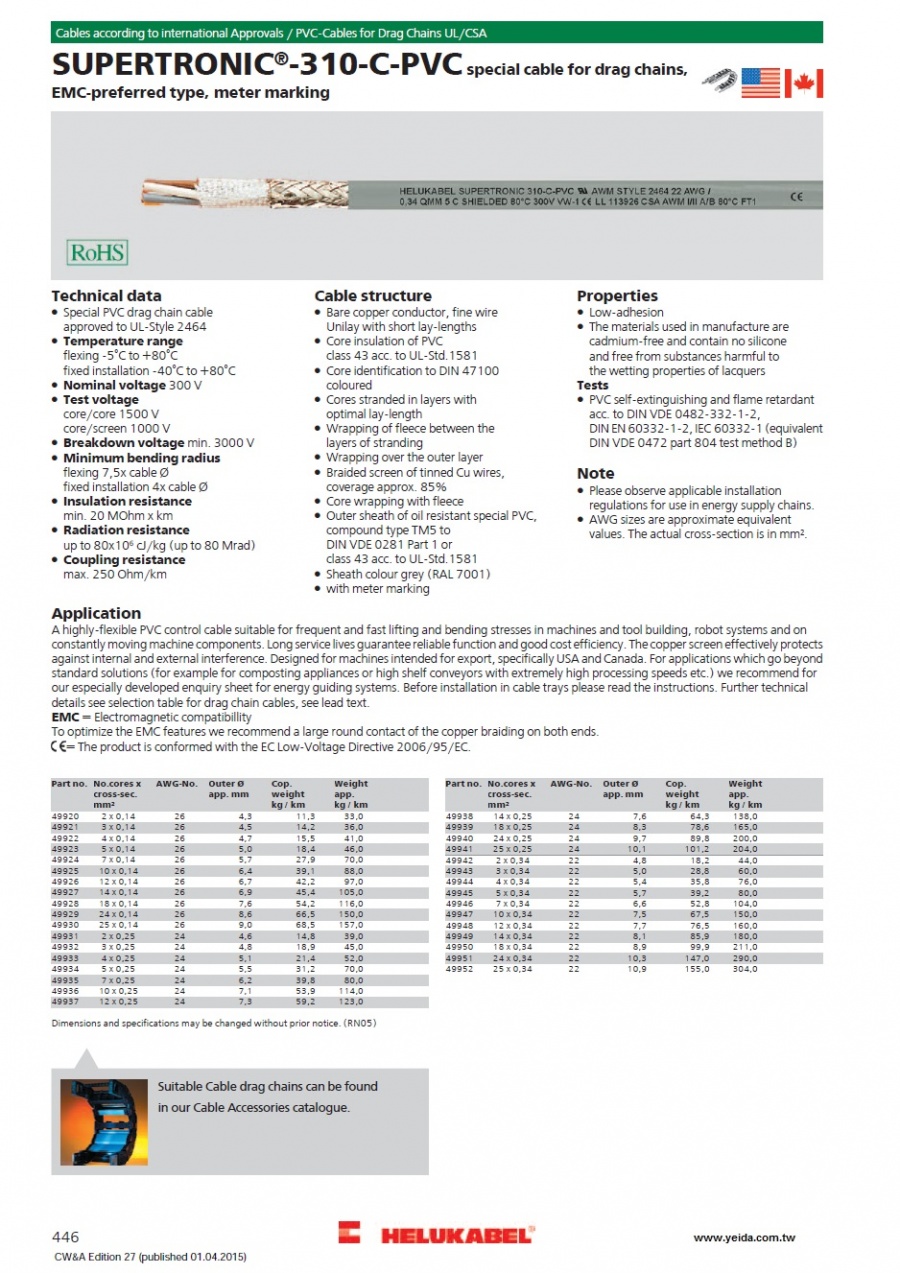

Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Coupling resistance max. 250 Ohm/km
Cable structure
Bare copper conductor, fine wire Unilay with short lay-lengths
Core insulation of PVC class 43 acc. to UL-Std.1581
Core identification to DIN 47100 coloured
Cores stranded in layers with optimal lay-length
Wrapping of fleece between the layers of stranding
Wrapping over the outer layer
Braided screen of tinned Cu wires, coverage approx. 85%
Core wrapping with fleece
Outer sheath of oil resistant special PVC, compound type TM5 to DIN VDE 0281 Part 1 or class 43 acc. to UL-Std.1581
Sheath colour grey (RAL 7001)
with meter marking
Properties
Low-adhesion
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
Please observe applicable installation regulations for use in energy supply chains.
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application
A highly-flexible PVC control cable suitable for frequent and fast lifting and bending stresses in machines and tool building, robot systems and on constantly moving machine components. Long service lives guarantee reliable function and good cost efficiency. The copper screen effectively protects against internal and external interference. Designed for machines intended for export, specifically USA and Canada. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text. EMC = Electromagnetic compatibillity To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
