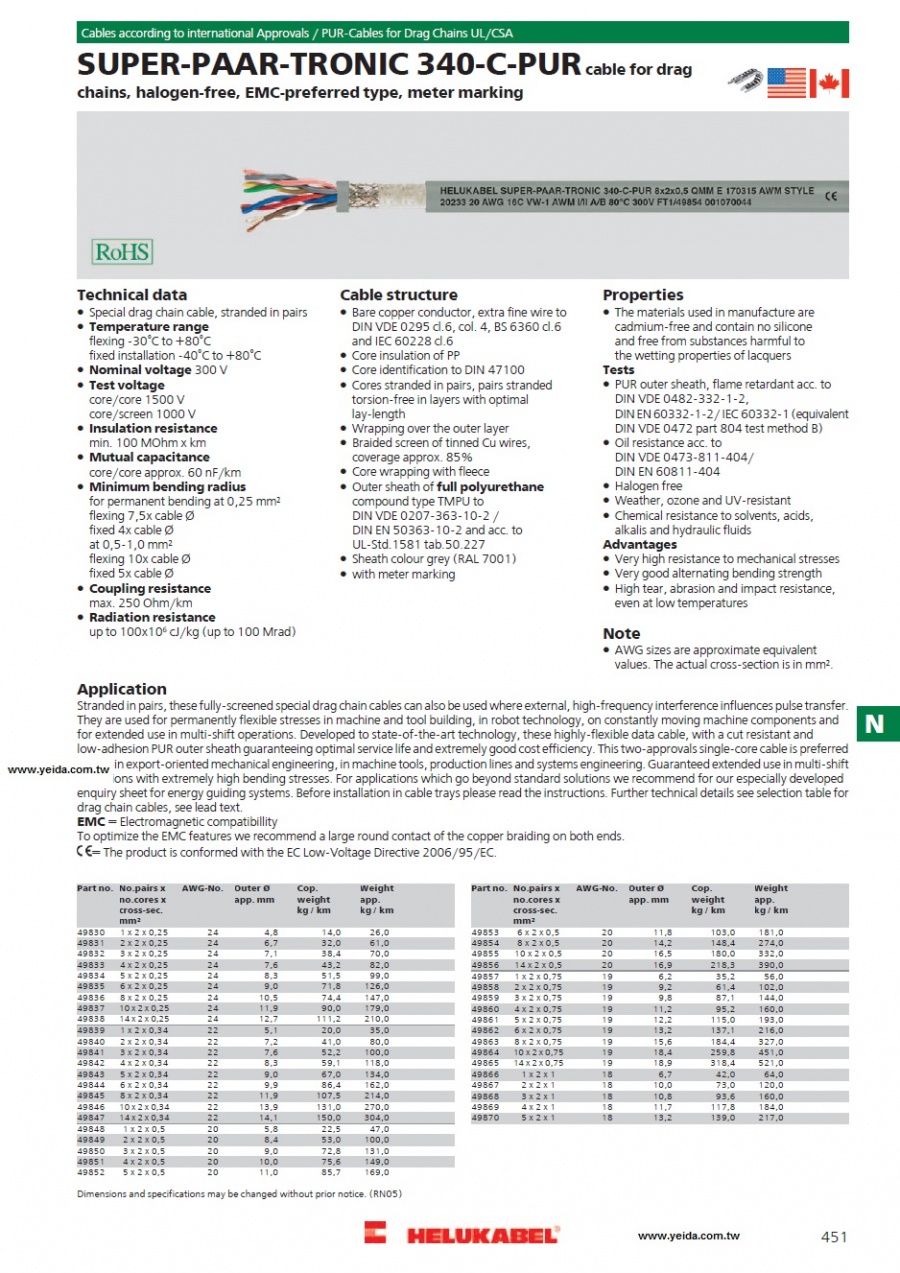

• Special drag chain cable, stranded in pairs
• Temperature range
  flexing -30°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage 300 V
• Test voltage
  core/core 1500 V
  core/screen 1000 V
• Insulation resistance
  min. 100 MOhm x km
• Mutual capacitance
  core/core approx. 60 nF/km
• Minimum bending radius
  for permanent bending at 0,25 mm²
  flexing 7,5x cable Ø
  fixed 4x cable Ø
  at 0,5-1,0 mm²
  flexing 10x cable Ø
  fixed 5x cable Ø
• Coupling resistance
  max. 250 Ohm/km
• Radiation resistance
  up to 100x10⁶ cJ/kg (up to 100 Mrad)

• Bare copper conductor, extra fine wire to
  DIN VDE 0295 cl.6, col. 4, BS 6360 cl.6
  and IEC 60228 cl.6
• Core insulation of PP
• Core identification to DIN 47100
• Cores stranded in pairs, pairs stranded
  torsion-free in layers with optimal
  lay-length
• Wrapping over the outer layer
• Braided screen of tinned Cu wires,
  coverage approx. 85%
• Core wrapping with fleece
• Outer sheath of full polyurethane
  compound type TMPU to
  DIN VDE 0207-363-10-2 /
  DIN EN 50363-10-2 and acc. to
  UL-Std.1581 tab.50.227
• Sheath colour grey (RAL 7001)
• with meter marking

• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PUR outer sheath, flame retardant acc. to
  DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2/ IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)
• Oil resistance acc. to
  DIN VDE 0473-811-404/
  DIN EN 60811-404
• Halogen free
• Weather, ozone and UV-resistant
• Chemical resistance to solvents, acids,
  alkalis and hydraulic fluids

Advantages

• Very high resistance to mechanical stresses
• Very good alternating bending strength
• High tear, abrasion and impact resistance,
  even at low temperatures

• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².


Stranded in pairs, these fully-screened special drag chain cables can also be used where external, high-frequency interference influences pulse transfer. They are used for permanently flexible stresses in machine and tool building, in robot technology, on constantly moving machine components and for extended use in multi-shift operations. Developed to state-of-the-art technology, these highly-flexible data cable, with a cut resistant and low-adhesion PUR outer sheath guaranteeing optimal service life and extremely good cost efficiency. This two-approvals single-core cable is preferred for use in export-oriented mechanical engineering, in machine tools, production lines and systems engineering. Guaranteed extended use in multi-shift operations with extremely high bending stresses. For applications which go beyond standard solutions we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
