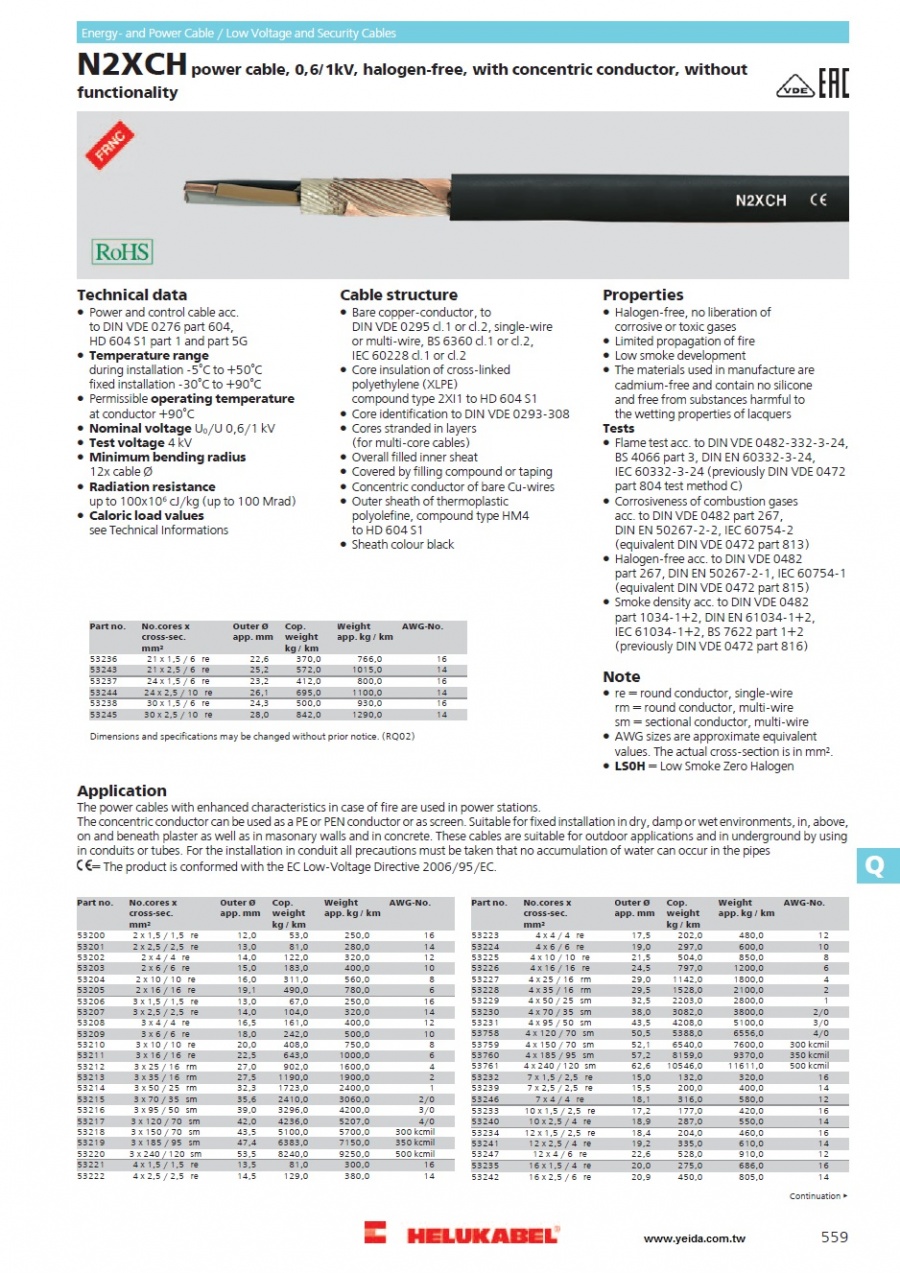

N2XCH power cable, 0,6/1kV, halogen-free, with concentric conductor,

產品搜尋

分　類：
關鍵字：

首頁 > Power/Data-Cable(進口電線電纜)> HELUKABEL-Wire and Cable > HELUKABEL-Infrastructure Security Cables

N2XCH power cable, 0,6/1kV, halogen-free, with concentric conductor,

30169549

商品編號: HELUKABEL-N2XCH

N2XCH power cable, 0,6/1kV, halogen-free, with concentric conductor,

power cable, 0,6/1kV, halogen-free, with concentric conductor,without functionality

★★★★商品說明★★★★

Technical data

Power and control cable acc.
to DIN VDE 0276 part 604,
HD 604 S1 part 1 and part 5G
Temperature range
during installation -5°C to +50°C
fixed installation -30°C to +90°C
Permissible operating temperature
at conductor +90°C
Nominal voltage U₀/U 0,6/1 kV
Test voltage 4 kV
Minimum bending radius
12x cable Ø
Radiation resistance
up to 100x10⁶ cJ/kg (up to 100 Mrad)
Caloric load values
see Technical Informations

Cable structure

Bare copper-conductor, to
DIN VDE 0295 cl.1 or cl.2, single-wire
or multi-wire, BS 6360 cl.1 or cl.2,
IEC 60228 cl.1 or cl.2
Core insulation of cross-linked
polyethylene (XLPE)
compound type 2XI1 to HD 604 S1
Core identification to DIN VDE 0293-308
Cores stranded in layers
(for multi-core cables)
Overall filled inner sheat
Covered by filling compound or taping
Concentric conductor of bare Cu-wires
Outer sheath of thermoplastic
polyolefine, compound type HM4
to HD 604 S1
Sheath colour black

Properties

Halogen-free, no liberation of
corrosive or toxic gases
Limited propagation of fire
Low smoke development
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Tests

Flame test acc. to DIN VDE 0482-332-3-24,
BS 4066 part 3, DIN EN 60332-3-24,
IEC 60332-3-24 (previously DIN VDE 0472
part 804 test method C)
Corrosiveness of combustion gases
acc. to DIN VDE 0482 part 267,
DIN EN 50267-2-2, IEC 60754-2
(equivalent DIN VDE 0472 part 813)
Halogen-free acc. to DIN VDE 0482
part 267, DIN EN 50267-2-1, IEC 60754-1
(equivalent DIN VDE 0472 part 815)
Smoke density acc. to DIN VDE 0482
part 1034-1+2, DIN EN 61034-1+2,
IEC 61034-1+2, BS 7622 part 1+2
(previously DIN VDE 0472 part 816)

Note

re = round conductor, single-wire
rm = round conductor, multi-wire
sm = sectional conductor, multi-wire
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
LS0H = Low Smoke Zero Halogen

Application

The power cables with enhanced characteristics in case of fire are used in power stations.
The concentric conductor can be used as a PE or PEN conductor or as screen. Suitable for fixed installation in dry, damp or wet environments, in, above, on and beneath plaster as well as in masonary walls and in concrete. These cables are suitable for outdoor applications and in underground by using in conduits or tubes. For the installation in conduit all precautions must be taken that no accumulation of water can occur in the pipes
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km	AWG-No.
53200	2 x 1,5 / 1,5 re	12,0	53,0	250,0	16
53201	2 x 2,5 / 2,5 re	13,0	81,0	280,0	14
53202	2 x 4 / 4 re	14,0	122,0	320,0	12
53203	2 x 6 / 6 re	15,0	183,0	400,0	10
53204	2 x 10 / 10 re	16,0	311,0	560,0	8
53205	2 x 16 / 16 re	19,1	490,0	780,0	6
53206	3 x 1,5 / 1,5 re	13,0	67,0	250,0	16
53207	3 x 2,5 / 2,5 re	14,0	104,0	320,0	14
53208	3 x 4 / 4 re	16,5	161,0	400,0	12
53209	3 x 6 / 6 re	18,0	242,0	500,0	10
53210	3 x 10 / 10 re	20,0	408,0	750,0	8
53211	3 x 16 / 16 re	22,5	643,0	1000,0	6
53212	3 x 25 / 16 rm	27,0	902,0	1600,0	4
53213	3 x 35 / 16 rm	27,5	1190,0	1900,0	2
53214	3 x 50 / 25 rm	32,3	1723,0	2400,0	1
53215	3 x 70 / 35 sm	35,6	2410,0	3060,0	2/0
53216	3 x 95 / 50 sm	39,0	3296,0	4200,0	3/0
53217	3 x 120 / 70 sm	42,0	4236,0	5207,0	4/0
53218	3 x 150 / 70 sm	43,5	5100,0	5700,0	300 kcmil
53219	3 x 185 / 95 sm	47,4	6383,0	7150,0	350 kcmil
53220	3 x 240 / 120 sm	53,5	8240,0	9250,0	500 kcmil
53221	4 x 1,5 / 1,5 re	13,5	81,0	300,0	16
53222	4 x 2,5 / 2,5 re	14,5	129,0	380,0	14
53223	4 x 4 / 4 re	17,5	202,0	480,0	12
53224	4 x 6 / 6 re	19,0	297,0	600,0	10
53225	4 x 10 / 10 re	21,5	504,0	850,0	8
53226	4 x 16 / 16 re	24,5	797,0	1200,0	6
53227	4 x 25 / 16 rm	29,0	1142,0	1800,0	4
53228	4 x 35 / 16 rm	29,5	1528,0	2100,0	2
53229	4 x 50 / 25 sm	32,5	2203,0	2800,0	1
53230	4 x 70 / 35 sm	38,0	3082,0	3800,0	2/0
53231	4 x 95 / 50 sm	43,5	4208,0	5100,0	3/0
53758	4 x 120 / 70 sm	50,5	5388,0	6556,0	4/0
53759	4 x 150 / 70 sm	52,1	6540,0	7600,0	300 kcmil
53760	4 x 185 / 95 sm	57,2	8159,0	9370,0	350 kcmil
53761	4 x 240 / 120 sm	62,6	10546,0	11611,0	500 kcmil
53232	7 x 1,5 / 2,5 re	15,0	132,0	320,0	16
53239	7 x 2,5 / 2,5 re	15,5	200,0	400,0	14
53246	7 x 4 / 4 re	18,1	316,0	580,0	12
53233	10 x 1,5 / 2,5 re	17,2	177,0	420,0	16
53240	10 x 2,5 / 4 re	18,9	287,0	550,0	14
53234	12 x 1,5 / 2,5 re	18,4	204,0	460,0	16
53241	12 x 2,5 / 4 re	19,2	335,0	610,0	14
53247	12 x 4 / 6 re	22,6	528,0	910,0	12
53235	16 x 1,5 / 4 re	20,0	275,0	686,0	16
53242	16 x 2,5 / 6 re	20,9	450,0	805,0	14
53236	21 x 1,5 / 6 re	22,6	370,0	766,0	16
53243	21 x 2,5 / 6 re	25,2	572,0	1015,0	14
53237	24 x 1,5 / 6 re	23,2	412,0	800,0	16
53244	24 x 2,5 / 10 re	26,1	695,0	1100,0	14
53238	30 x 1,5 / 6 re	24,3	500,0	930,0	16
53245	30 x 2,5 / 10 re	28,0	842,0	1290,0	14
