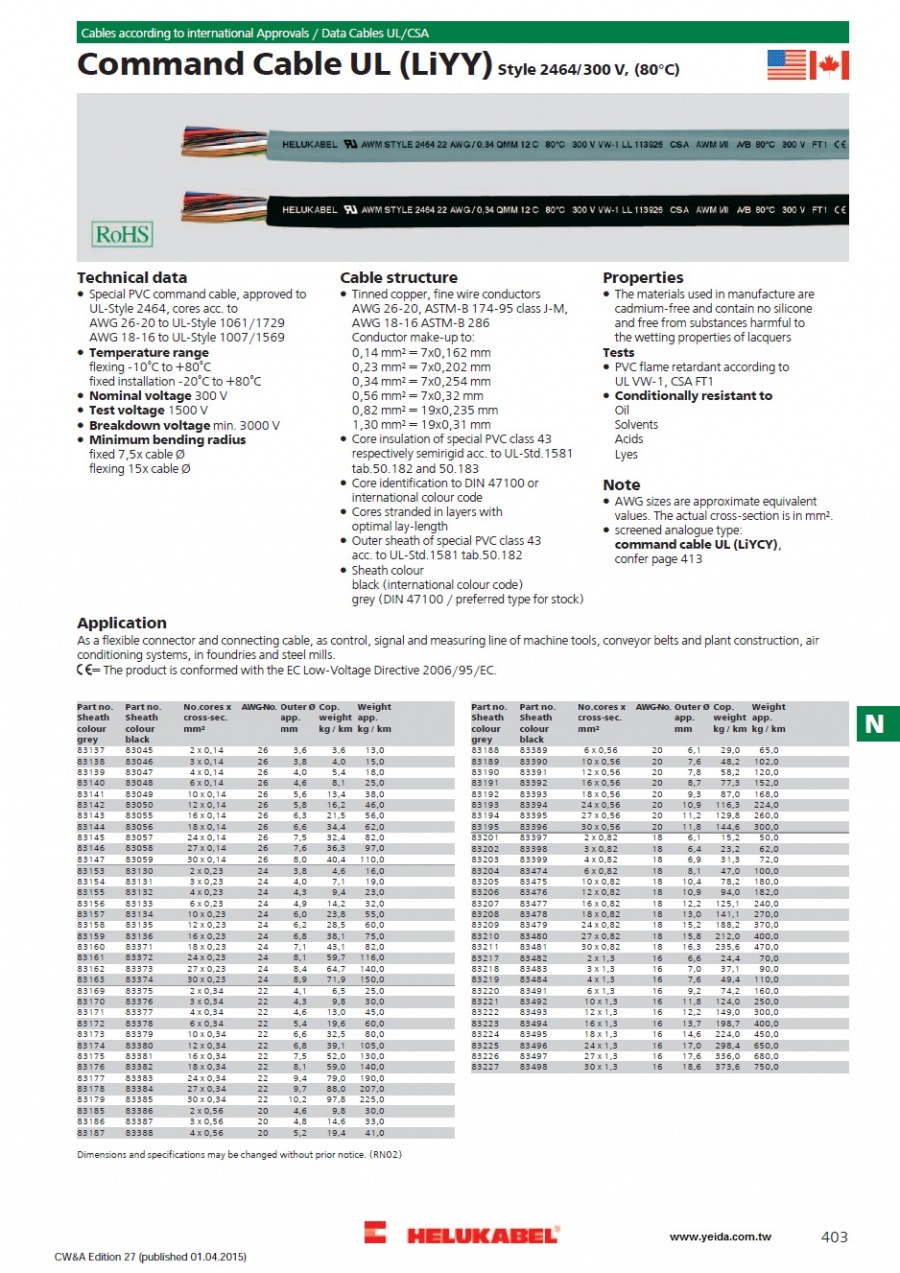

• Special PVC command cable, approved to
  UL-Style 2464, cores acc. to
  AWG 26-20 to UL-Style 1061/1729
  AWG 18-16 to UL-Style 1007/1569
• Temperature range
  flexing -10°C to +80°C
  fixed installation -20°C to +80°C
• Nominal voltage 300 V
• Test voltage 1500 V
• Breakdown voltage min. 3000 V
• Minimum bending radius
  fixed 7,5x cable Ø
  flexing 15x cable Ø

• Tinned copper, fine wire conductors
  AWG 26-20, ASTM-B 174-95 class J-M,
  AWG 18-16 ASTM-B 286
  Conductor make-up to:
  0,14 mm² = 7x0,162 mm
  0,23 mm² = 7x0,202 mm
  0,34 mm² = 7x0,254 mm
  0,56 mm² = 7x0,32 mm
  0,82 mm² = 19x0,235 mm
  1,30 mm² = 19x0,31 mm
• Core insulation of special PVC class 43
  respectively semirigid acc. to UL-Std.1581
  tab.50.182 and 50.183
• Core identification to DIN 47100 or
  international colour code
• Cores stranded in layers with
  optimal lay-length
• Outer sheath of special PVC class 43
  acc. to UL-Std.1581 tab.50.182
• Sheath colour
  black (international colour code)
  grey (DIN 47100 / preferred type for stock)

• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC flame retardant according to
  UL VW-1, CSA FT1
• Conditionally resistant to
  Oil
  Solvents
  Acids
  Lyes

• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².
• screened analogue type:
  command cable UL (LiYCY)
