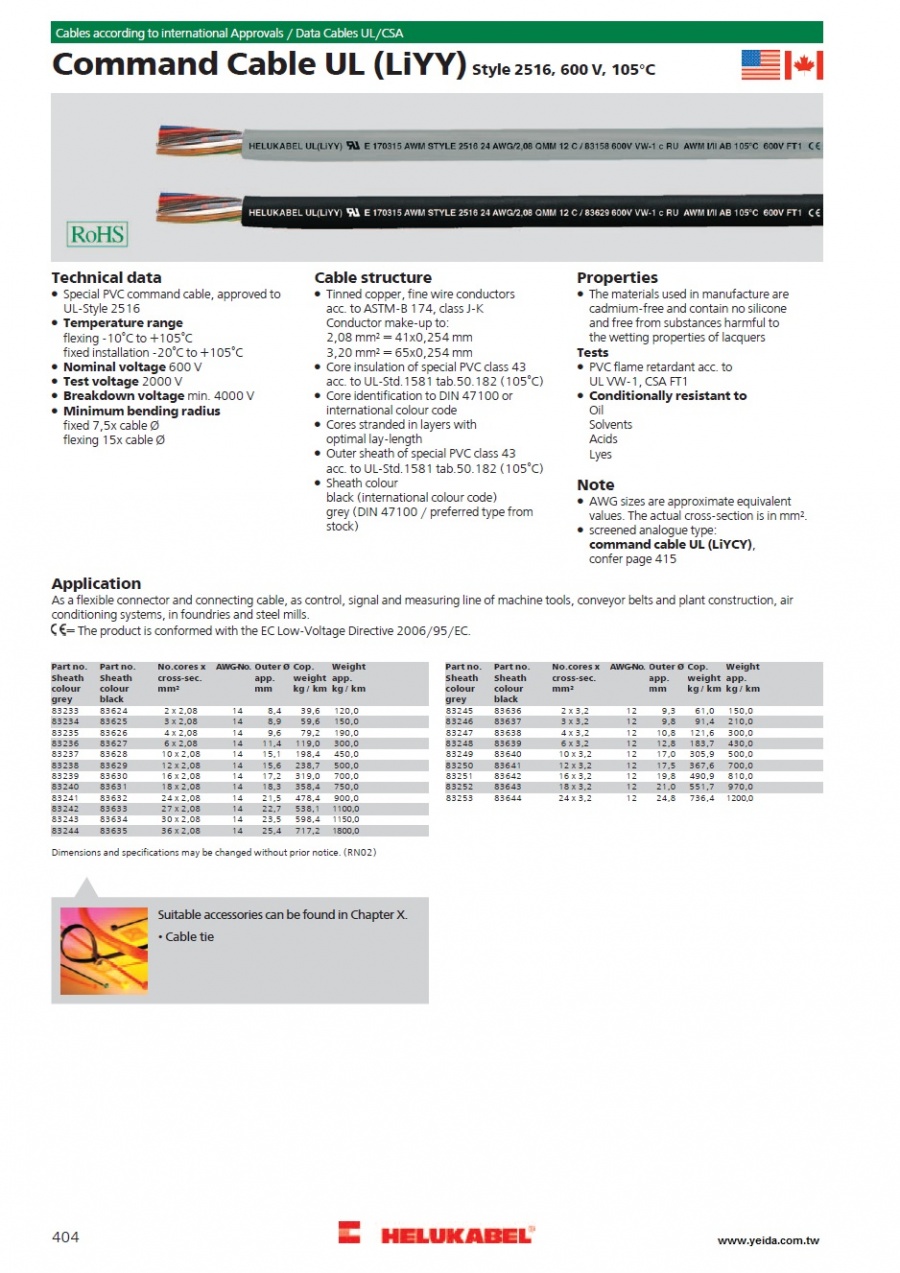

• Special PVC command cable, approved to
  UL-Style 2516
• Temperature range
  flexing -10°C to +105°C
  fixed installation -20°C to +105°C
• Nominal voltage 600 V
• Test voltage 2000 V
• Breakdown voltage min. 4000 V
• Minimum bending radius
  fixed 7,5x cable Ø
  flexing 15x cable Ø


• Tinned copper, fine wire conductors
  acc. to ASTM-B 174, class J-K
  Conductor make-up to:
  2,08 mm² = 41x0,254 mm
  3,20 mm² = 65x0,254 mm
• Core insulation of special PVC class 43
  acc. to UL-Std.1581 tab.50.182 (105°C)
• Core identification to DIN 47100 or
  international colour code
• Cores stranded in layers with
  optimal lay-length
• Outer sheath of special PVC class 43
  acc. to UL-Std.1581 tab.50.182 (105°C)
• Sheath colour
  black (international colour code)
  grey (DIN 47100 / preferred type from
  stock)

• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC flame retardant acc. to
  UL VW-1, CSA FT1
• Conditionally resistant to
  Oil
  Solvents
  Acids
  Lyes

• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².
• screened analogue type:
  command cable UL (LiYCY)
