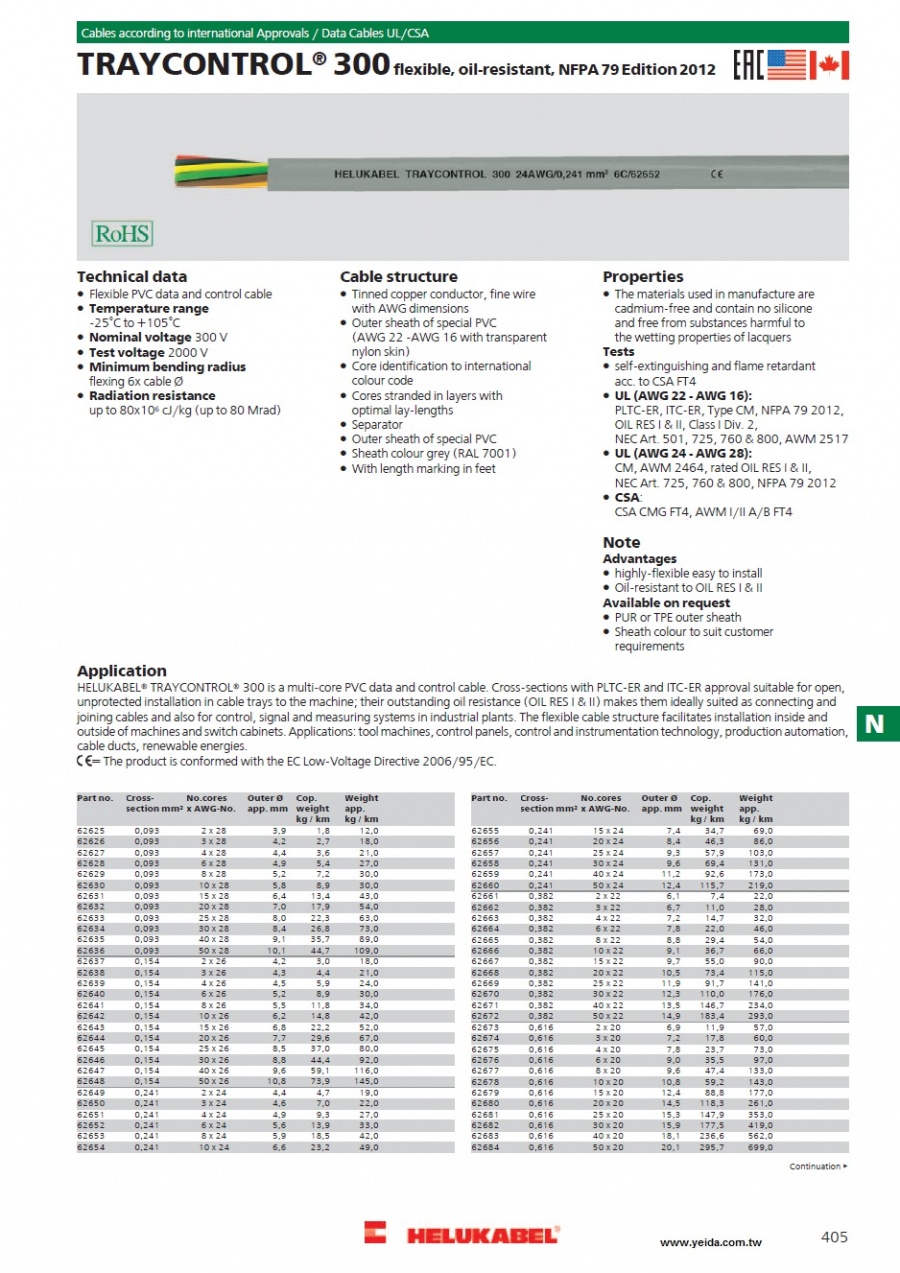

TRAYCONTROL® 300 flexible, oil-resistant, NFPA 79 Edition 2012

30169485

商品編號: HELUKABEL-TRAYCONTROL-300

TRAYCONTROL® 300 flexible, oil-resistant, NFPA 79 Edition 2012

★★★★商品說明★★★★

Technical data

Flexible PVC data and control cable
Temperature range
-25°C to +105°C
Nominal voltage 300 V
Test voltage 2000 V
Minimum bending radius
flexing 6x cable Ø
Radiation resistance
up to 80x10⁶ cJ/kg (up to 80 Mrad)

Cable structure

Tinned copper conductor, fine wire
with AWG dimensions
Outer sheath of special PVC
(AWG 22 -AWG 16 with transparent
nylon skin)
Core identification to international
colour code
Cores stranded in layers with
optimal lay-lengths
Separator
Outer sheath of special PVC
Sheath colour grey (RAL 7001)
with length marking in feet

Properties

The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Tests

self-extinguishing and flame retardant
acc. to CSA FT4
UL (AWG 22 - AWG 16):
PLTC-ER, ITC-ER, Type CM, NFPA 79 2012,
OIL RES I & II, Class I Div. 2,
NEC Art. 501, 725, 760 & 800, AWM 2517
UL (AWG 24 - AWG 28):
CM, AWM 2464, rated OIL RES I & II,
NEC Art. 725, 760 & 800, NFPA 79 2012
CSA:
CSA CMG FT4, AWM I/II A/B FT4

Note

Advantages

highly-flexible easy to install
Oil-resistant to OIL RES I & II

Available on request

PUR or TPE outer sheath
Sheath colour to suit customer
requirements

Application

HELUKABEL® TRAYCONTROL® 300 is a multi-core PVC data and control cable. Cross-sections with PLTC-ER and ITC-ER approval suitable for open, unprotected installation in cable trays to the machine; their outstanding oil resistance (OIL RES I & II) makes them ideally suited as connecting and joining cables and also for control, signal and measuring systems in industrial plants. The flexible cable structure facilitates installation inside and outside of machines and switch cabinets. Applications: tool machines, control panels, control and instrumentation technology, production automation, cable ducts, renewable energies.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	Cross- section mm²	No.cores x AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
62625	0,093	2 x 28	3,9	1,8	12,0
62626	0,093	3 x 28	4,2	2,7	18,0
62627	0,093	4 x 28	4,4	3,6	21,0
62628	0,093	6 x 28	4,9	5,4	27,0
62629	0,093	8 x 28	5,2	7,2	30,0
62630	0,093	10 x 28	5,8	8,9	30,0
62631	0,093	15 x 28	6,4	13,4	43,0
62632	0,093	20 x 28	7,0	17,9	54,0
62633	0,093	25 x 28	8,0	22,3	63,0
62634	0,093	30 x 28	8,4	26,8	73,0
62635	0,093	40 x 28	9,1	35,7	89,0
62636	0,093	50 x 28	10,1	44,7	109,0
62637	0,154	2 x 26	4,2	3,0	18,0
62638	0,154	3 x 26	4,3	4,4	21,0
62639	0,154	4 x 26	4,5	5,9	24,0
62640	0,154	6 x 26	5,2	8,9	30,0
62641	0,154	8 x 26	5,5	11,8	34,0
62642	0,154	10 x 26	6,2	14,8	42,0
62643	0,154	15 x 26	6,8	22,2	52,0
62644	0,154	20 x 26	7,7	29,6	67,0
62645	0,154	25 x 26	8,5	37,0	80,0
62646	0,154	30 x 26	8,8	44,4	92,0
62647	0,154	40 x 26	9,6	59,1	116,0
62648	0,154	50 x 26	10,8	73,9	145,0
62649	0,241	2 x 24	4,4	4,7	19,0
62650	0,241	3 x 24	4,6	7,0	22,0
62651	0,241	4 x 24	4,9	9,3	27,0
62652	0,241	6 x 24	5,6	13,9	33,0
62653	0,241	8 x 24	5,9	18,5	42,0
62654	0,241	10 x 24	6,6	23,2	49,0
62655	0,241	15 x 24	7,4	34,7	69,0
62656	0,241	20 x 24	8,4	46,3	86,0
62657	0,241	25 x 24	9,3	57,9	103,0
62658	0,241	30 x 24	9,6	69,4	131,0
62659	0,241	40 x 24	11,2	92,6	173,0
62660	0,241	50 x 24	12,4	115,7	219,0
62661	0,382	2 x 22	6,1	7,4	22,0
62662	0,382	3 x 22	6,7	11,0	28,0
62663	0,382	4 x 22	7,2	14,7	32,0
62664	0,382	6 x 22	7,8	22,0	46,0
62665	0,382	8 x 22	8,8	29,4	54,0
62666	0,382	10 x 22	9,1	36,7	66,0
62667	0,382	15 x 22	9,7	55,0	90,0
62668	0,382	20 x 22	10,5	73,4	115,0
62669	0,382	25 x 22	11,9	91,7	141,0
62670	0,382	30 x 22	12,3	110,0	176,0
62671	0,382	40 x 22	13,5	146,7	234,0
62672	0,382	50 x 22	14,9	183,4	293,0
62673	0,616	2 x 20	6,9	11,9	57,0
62674	0,616	3 x 20	7,2	17,8	60,0
62675	0,616	4 x 20	7,8	23,7	73,0
62676	0,616	6 x 20	9,0	35,5	97,0
62677	0,616	8 x 20	9,6	47,4	133,0
62678	0,616	10 x 20	10,8	59,2	143,0
62679	0,616	15 x 20	12,4	88,8	177,0
62680	0,616	20 x 20	14,5	118,3	261,0
62681	0,616	25 x 20	15,3	147,9	353,0
62682	0,616	30 x 20	15,9	177,5	419,0
62683	0,616	40 x 20	18,1	236,6	562,0
62684	0,616	50 x 20	20,1	295,7	699,0
62685	0,963	2 x 18	7,4	18,5	61,0
62686	0,963	3 x 18	7,6	27,8	64,0
62687	0,963	4 x 18	8,3	37,0	77,0
62688	0,963	6 x 18	9,5	55,5	101,0
62689	0,963	8 x 18	10,1	74,0	142,0
62690	0,963	10 x 18	12,1	92,5	195,0
62691	0,963	15 x 18	13,6	138,7	247,0
62692	0,963	20 x 18	14,9	184,9	328,0
62693	0,963	25 x 18	17,6	231,2	407,0
62694	0,963	30 x 18	17,7	277,4	539,0
62695	0,963	40 x 18	19,5	369,8	717,0
62696	0,963	50 x 18	21,8	462,3	894,0
62697	1,31	2 x 16	7,5	25,2	83,0
62698	1,31	3 x 16	8,4	37,8	91,0
62699	1,31	4 x 16	8,8	50,3	109,0
62700	1,31	6 x 16	10,1	75,5	162,0
62702	1,31	8 x 16	11,4	100,7	243,0
62703	1,31	10 x 16	13,0	125,8	267,0
62704	1,31	15 x 16	14,7	188,7	364,0
62705	1,31	20 x 16	16,1	251,6	493,0
62706	1,31	25 x 16	18,3	314,5	608,0
62707	1,31	30 x 16	19,2	377,3	729,0
62708	1,31	40 x 16	21,3	503,1	967,0
62709	1,31	50 x 16	23,9	628,8	1214,0
