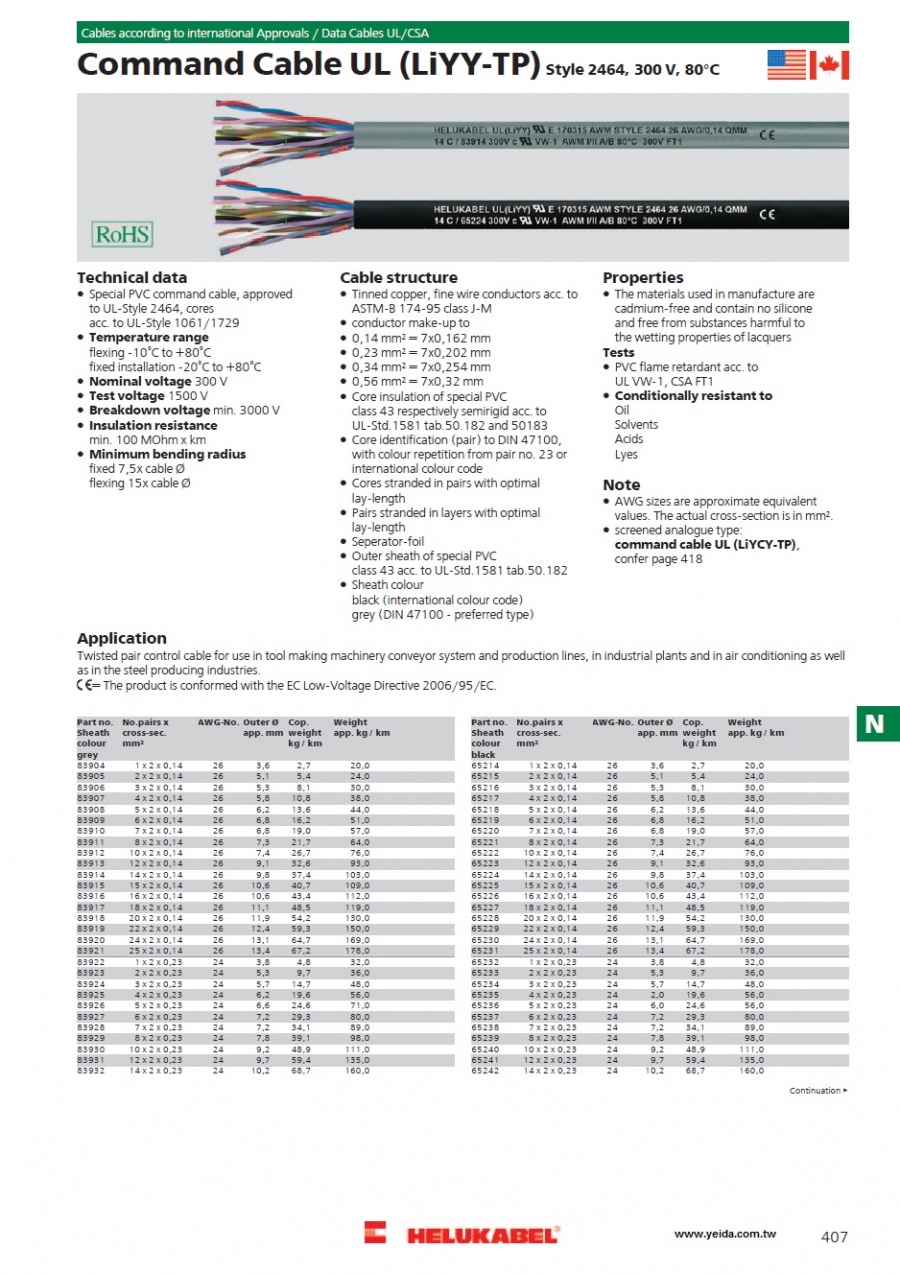

• Special PVC command cable, approved
  to UL-Style 2464, cores
  acc. to UL-Style 1061/1729
• Temperature range
  flexing -10°C to +80°C
  fixed installation -20°C to +80°C
• Nominal voltage 300 V
• Test voltage 1500 V
• Breakdown voltage min. 3000 V
• Insulation resistance
  min. 100 MOhm x km
• Minimum bending radius
  fixed 7,5x cable Ø
  flexing 15x cable Ø

• Tinned copper, fine wire conductors acc. to
  ASTM-B 174-95 class J-M
• conductor make-up to
• 0,14 mm² = 7x0,162 mm
• 0,23 mm² = 7x0,202 mm
• 0,34 mm² = 7x0,254 mm
• 0,56 mm² = 7x0,32 mm
• Core insulation of special PVC
  class 43 respectively semirigid acc. to
  UL-Std.1581 tab.50.182 and 50183
• Core identification (pair) to DIN 47100,
  with colour repetition from pair no. 23 or
  international colour code
• Cores stranded in pairs with optimal
  lay-length
• Pairs stranded in layers with optimal
  lay-length
• Seperator-foil
• Outer sheath of special PVC
  class 43 acc. to UL-Std.1581 tab.50.182
• Sheath colour
  black (international colour code)
  grey (DIN 47100 - preferred type)

• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC flame retardant acc. to
  UL VW-1, CSA FT1
• Conditionally resistant to
  Oil
  Solvents
  Acids
  Lyes

• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².
• screened analogue type:
  command cable UL (LiYCY-TP)
