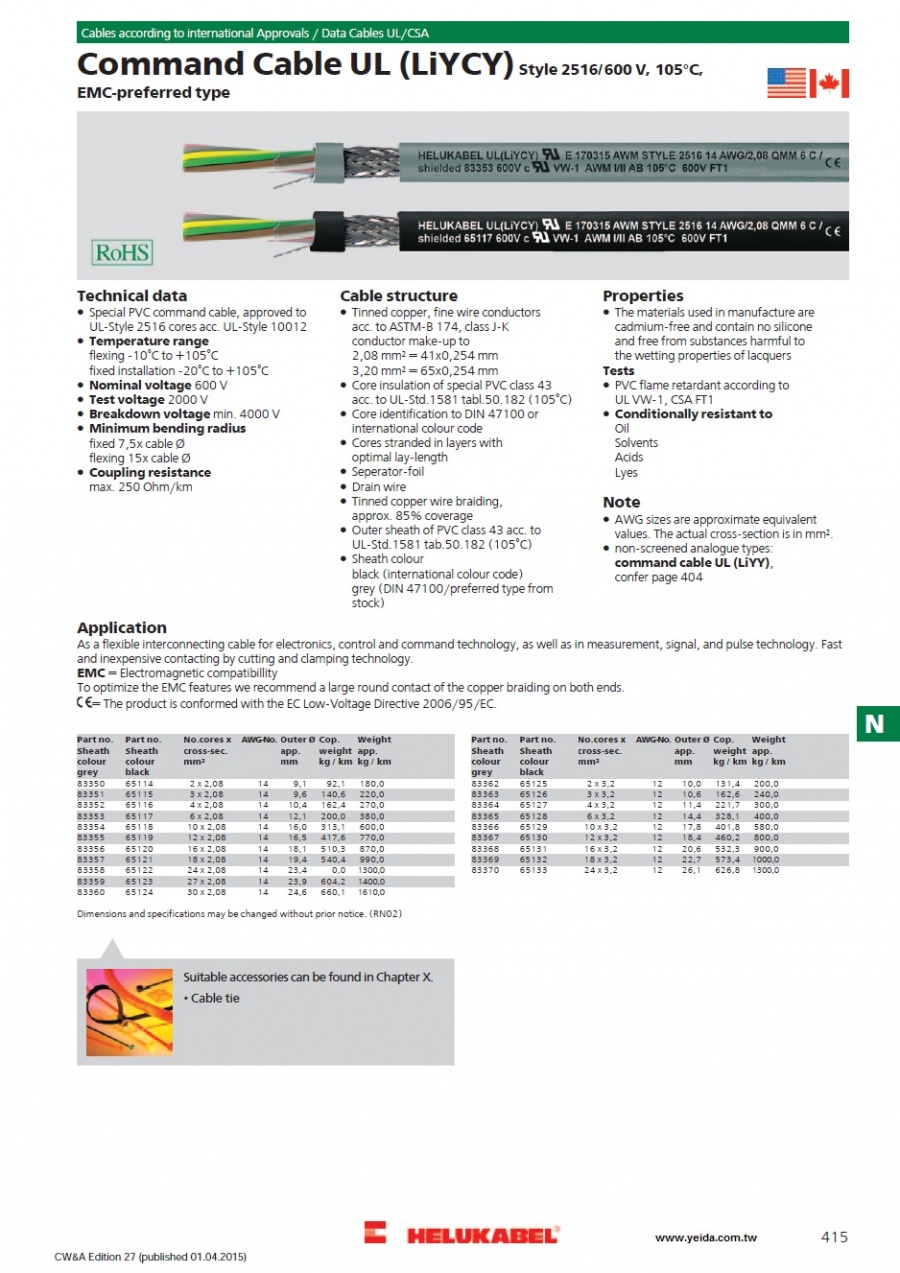

Tinned copper, fine wire conductors acc. to ASTM-B 174, class J-K conductor make-up to 2,08 mm² = 41x0,254 mm 3,20 mm² = 65x0,254 mm
Core insulation of special PVC class 43 acc. to UL-Std.1581 tabl.50.182 (105°C)
Core identification to DIN 47100 or international colour code
Cores stranded in layers with optimal lay-length
Seperator-foil
Drain wire
Tinned copper wire braiding, approx. 85% coverage
Outer sheath of PVC class 43 acc. to UL-Std.1581 tab.50.182 (105°C)
Sheath colour black (international colour code) grey (DIN 47100/preferred type from stock)
Properties
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
PVC flame retardant according to UL VW-1, CSA FT1
Conditionally resistant to Oil Solvents Acids Lyes
Note
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
non-screened analogue types: command cable UL (LiYY)
Application
As a flexible interconnecting cable for electronics, control and command technology, as well as in measurement, signal, and pulse technology. Fast and inexpensive contacting by cutting and clamping technology. EMC = Electromagnetic compatibillity To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
