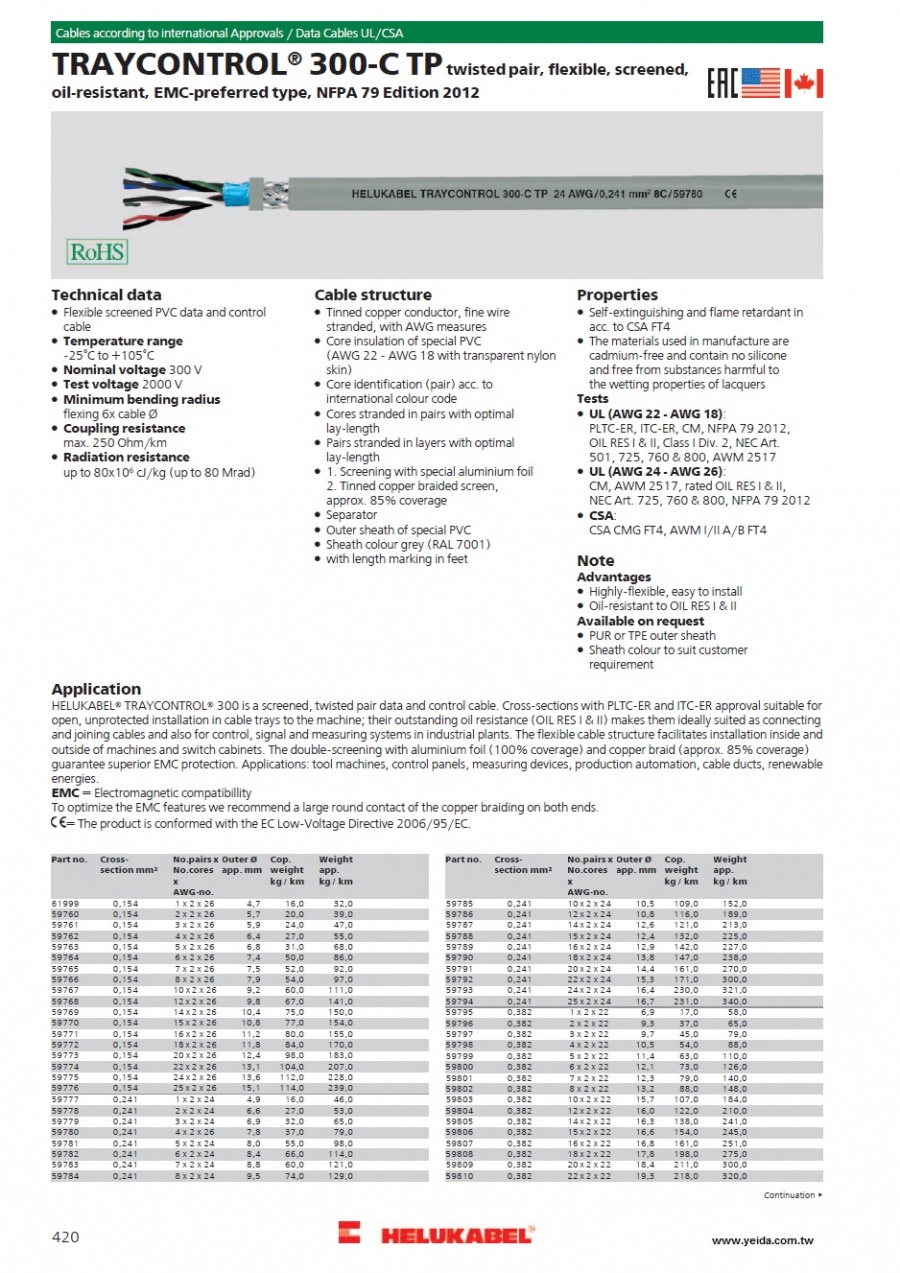

TRAYCONTROL® 300-C TP stranded pair, flexible, screened, oil-resistant, EMC-preferred type,

產品搜尋

分　類：
關鍵字：

首頁 > Power/Data-Cable(進口電線電纜)> HELUKABEL-Wire and Cable > HELUKABEL-Industrial UL/CSA Data Cables

TRAYCONTROL® 300-C TP stranded pair, flexible, screened, oil-resistant, EMC-preferred type,

30169539

商品編號: HELUKABEL-TRAYCONTROL-300C-TP

TRAYCONTROL® 300-C TP stranded pair, flexible, screened, oil-resistant, EMC-preferred type,

stranded pair, flexible, screened, oil-resistant, EMC-preferred type, NFPA 79 Edition 2012

★★★★商品說明★★★★

Technical data

Flexible screened PVC data and control
cable
Temperature range
-25°C to +105°C
Nominal voltage 300 V
Test voltage 2000 V
Minimum bending radius
flexing 6x cable Ø
Coupling resistance
max. 250 Ohm/km
Radiation resistance
up to 80x10⁶ cJ/kg (up to 80 Mrad)

Cable structure

Tinned copper conductor, fine wire
stranded, with AWG measures
Core insulation of special PVC
(AWG 22 - AWG 18 with transparent nylon
skin)
Core identification (pair) acc. to
international colour code
Cores stranded in pairs with optimal
lay-length
Pairs stranded in layers with optimal
lay-length
1. Screening with special aluminium foil
2. Tinned copper braided screen,
approx. 85% coverage
Separator
Outer sheath of special PVC
Sheath colour grey (RAL 7001)
with length marking in feet

Properties

Self-extinguishing and flame retardant in
acc. to CSA FT4
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Tests

UL (AWG 22 - AWG 18):
PLTC-ER, ITC-ER, CM, NFPA 79 2012,
OIL RES I & II, Class I Div. 2, NEC Art.
501, 725, 760 & 800, AWM 2517
UL (AWG 24 - AWG 26):
CM, AWM 2517, rated OIL RES I & II,
NEC Art. 725, 760 & 800, NFPA 79 2012
CSA:
CSA CMG FT4, AWM I/II A/B FT4

Note

Advantages

Highly-flexible, easy to install
Oil-resistant to OIL RES I & II

Available on request

PUR or TPE outer sheath
Sheath colour to suit customer
requirement

Application

HELUKABEL® TRAYCONTROL® 300 is a screened, twisted pair data and control cable. Cross-sections with PLTC-ER and ITC-ER approval suitable for open, unprotected installation in cable trays to the machine; their outstanding oil resistance (OIL RES I & II) makes them ideally suited as connecting and joining cables and also for control, signal and measuring systems in industrial plants. The flexible cable structure facilitates installation inside and outside of machines and switch cabinets. The double-screening with aluminium foil (100% coverage) and copper braid (approx. 85% coverage) guarantee superior EMC protection. Applications: tool machines, control panels, measuring devices, production automation, cable ducts, renewable energies.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	Cross- section mm²	No.pairs x No.cores x AWG-no.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
61999	0,154	1 x 2 x 26	4,7	16,0	32,0
59760	0,154	2 x 2 x 26	5,7	20,0	39,0
59761	0,154	3 x 2 x 26	5,9	24,0	47,0
59762	0,154	4 x 2 x 26	6,4	27,0	55,0
59763	0,154	5 x 2 x 26	6,8	31,0	68,0
59764	0,154	6 x 2 x 26	7,4	50,0	86,0
59765	0,154	7 x 2 x 26	7,5	52,0	92,0
59766	0,154	8 x 2 x 26	7,9	54,0	97,0
59767	0,154	10 x 2 x 26	9,2	60,0	111,0
59768	0,154	12 x 2 x 26	9,8	67,0	141,0
59769	0,154	14 x 2 x 26	10,4	75,0	150,0
59770	0,154	15 x 2 x 26	10,8	77,0	154,0
59771	0,154	16 x 2 x 26	11,2	80,0	155,0
59772	0,154	18 x 2 x 26	11,8	84,0	170,0
59773	0,154	20 x 2 x 26	12,4	98,0	183,0
59774	0,154	22 x 2 x 26	13,1	104,0	207,0
59775	0,154	24 x 2 x 26	13,6	112,0	228,0
59776	0,154	25 x 2 x 26	15,1	114,0	239,0
59777	0,241	1 x 2 x 24	4,9	16,0	46,0
59778	0,241	2 x 2 x 24	6,6	27,0	53,0
59779	0,241	3 x 2 x 24	6,9	32,0	65,0
59780	0,241	4 x 2 x 26	7,8	37,0	79,0
59781	0,241	5 x 2 x 24	8,0	55,0	98,0
59782	0,241	6 x 2 x 24	8,4	66,0	114,0
59783	0,241	7 x 2 x 24	8,8	60,0	121,0
59784	0,241	8 x 2 x 24	9,5	74,0	129,0
59785	0,241	10 x 2 x 24	10,5	109,0	152,0
59786	0,241	12 x 2 x 24	10,8	116,0	189,0
59787	0,241	14 x 2 x 24	12,6	121,0	213,0
59788	0,241	15 x 2 x 24	12,4	132,0	225,0
59789	0,241	16 x 2 x 24	12,9	142,0	227,0
59790	0,241	18 x 2 x 24	13,8	147,0	238,0
59791	0,241	20 x 2 x 24	14,4	161,0	270,0
59792	0,241	22 x 2 x 24	15,3	171,0	300,0
59793	0,241	24 x 2 x 24	16,4	230,0	321,0
59794	0,241	25 x 2 x 24	16,7	231,0	340,0
59795	0,382	1 x 2 x 22	6,9	17,0	58,0
59796	0,382	2 x 2 x 22	9,3	37,0	65,0
59797	0,382	3 x 2 x 22	9,7	45,0	79,0
59798	0,382	4 x 2 x 22	10,5	54,0	88,0
59799	0,382	5 x 2 x 22	11,4	63,0	110,0
59800	0,382	6 x 2 x 22	12,1	73,0	126,0
59801	0,382	7 x 2 x 22	12,3	79,0	140,0
59802	0,382	8 x 2 x 22	13,2	88,0	148,0
59803	0,382	10 x 2 x 22	15,7	107,0	184,0
59804	0,382	12 x 2 x 22	16,0	122,0	210,0
59805	0,382	14 x 2 x 22	16,3	138,0	241,0
59806	0,382	15 x 2 x 22	16,6	154,0	245,0
59807	0,382	16 x 2 x 22	16,8	161,0	251,0
59808	0,382	18 x 2 x 22	17,8	198,0	275,0
59809	0,382	20 x 2 x 22	18,4	211,0	300,0
59810	0,382	22 x 2 x 22	19,3	218,0	320,0
59811	0,382	24 x 2 x 22	20,5	230,0	371,0
59812	0,382	25 x 2 x 22	20,8	239,0	402,0
59813	0,616	1 x 2 x 20	7,4	26,0	70,0
59814	0,616	2 x 2 x 20	10,0	56,0	89,0
59815	0,616	3 x 2 x 20	10,8	72,0	102,0
59816	0,616	4 x 2 x 20	11,5	92,0	119,0
59817	0,616	5 x 2 x 20	12,6	107,0	140,0
59818	0,616	6 x 2 x 20	13,4	122,0	162,0
59819	0,616	7 x 2 x 20	13,5	132,0	198,0
59820	0,616	8 x 2 x 20	16,9	144,0	272,0
59821	0,616	10 x 2 x 20	17,6	180,0	307,0
59822	0,616	12 x 2 x 20	18,1	202,0	318,0
59823	0,616	14 x 2 x 20	19,2	221,0	342,0
59824	0,616	15 x 2 x 20	19,5	232,0	381,0
59825	0,616	16 x 2 x 20	19,6	257,0	417,0
59826	0,616	18 x 2 x 20	20,6	282,0	494,0
59827	0,616	20 x 2 x 20	21,6	307,0	570,0
59828	0,616	22 x 2 x 20	22,7	322,0	643,0
59829	0,616	24 x 2 x 20	24,5	342,0	724,0
59830	0,616	25 x 2 x 20	24,9	361,0	740,0
59831	0,963	1 x 2 x 18	7,8	28,0	104,0
59832	0,963	2 x 2 x 18	10,3	57,0	121,0
59833	0,963	3 x 2 x 18	11,6	75,0	150,0
59834	0,963	6 x 2 x 18	14,7	139,0	328,0
59835	0,963	9 x 2 x 18	17,3	212,0	490,0
59836	0,963	15 x 2 x 18	21,4	358,0	811,0
