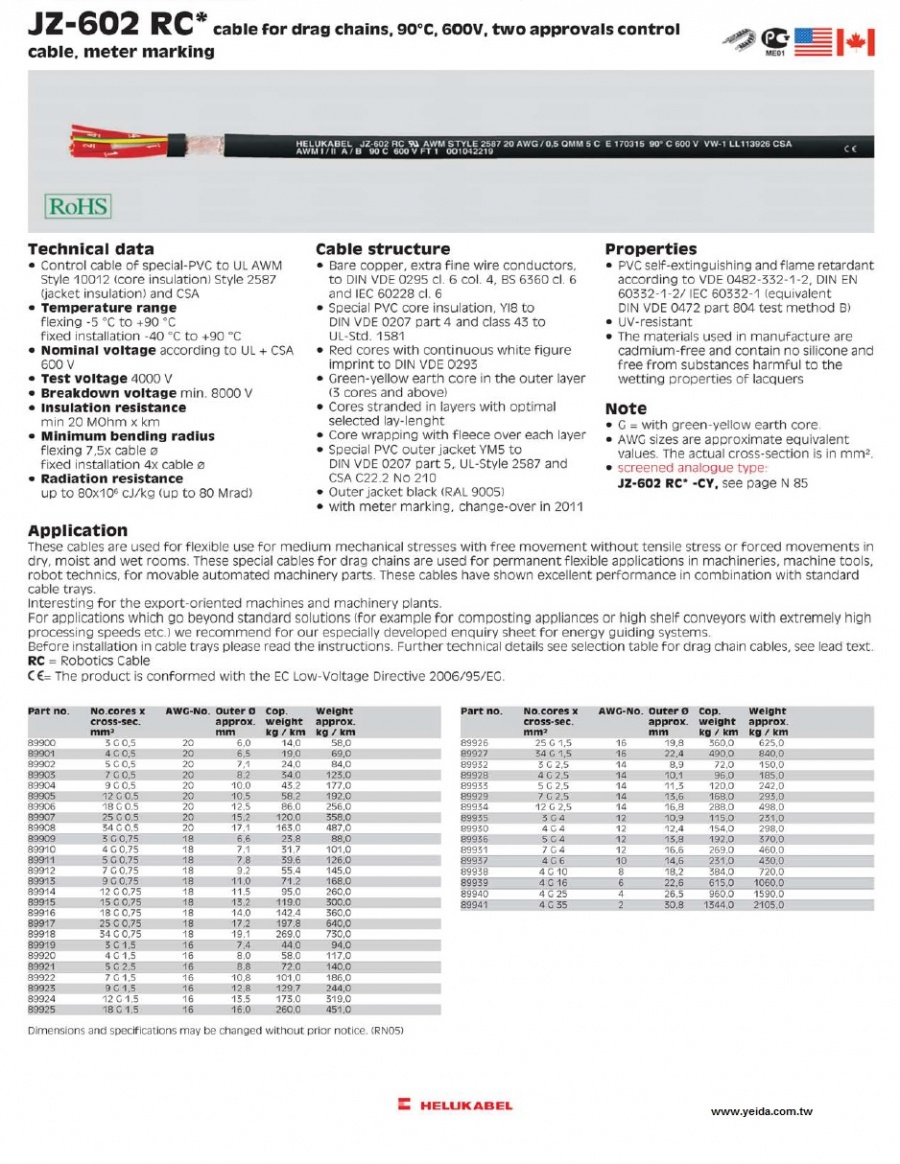

• Control cable of special-PVC acc. to UL CSA
  AWM I/II A/B Style 2587(sheath insulation)
  and CSA
• Temperature range
  flexing -5°C to +90°C
  fixed installation -40°C to +90°C
• Nominal voltage
  UL/CSA 600 V
• Test voltage 3000 V
• Breakdown voltage min. 6000 V
• Insulation resistance
  min 20 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 80x10⁶ cJ/kg (up to 80 Mrad)

• Bare copper-conductor, to
  DIN VDE 0295 cl.5, fine-wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insulation of PVC
  compound type TI3 to
  DIN VDE 0207-363-3 / DIN EN 50363-3
  and class 43 acc. to UL-Std.1581
• Core identification black cores with
  continuous white numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with optimal
  lay-length
• Outer sheath of special PVC
  compound type YM5 to
  DIN VDE 0207 part 5
  and class 43 acc. to UL-Std.1581
• Sheath colour grey (RAL 7001)
• with meter marking

• Resistant to mineral oils, synthetic
  oils and coolant
• The outer sheath is approved with an
  improved oil-resistance-test
• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804
  test method B), UL VW-1, CSA FT1

• G = with green-yellow conductor
  x = without green-yellow conductor (OZ)
• Please note the cleanroom qualification
  when ordering.
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².

• screened analogue type:
  JZ-602-CY
