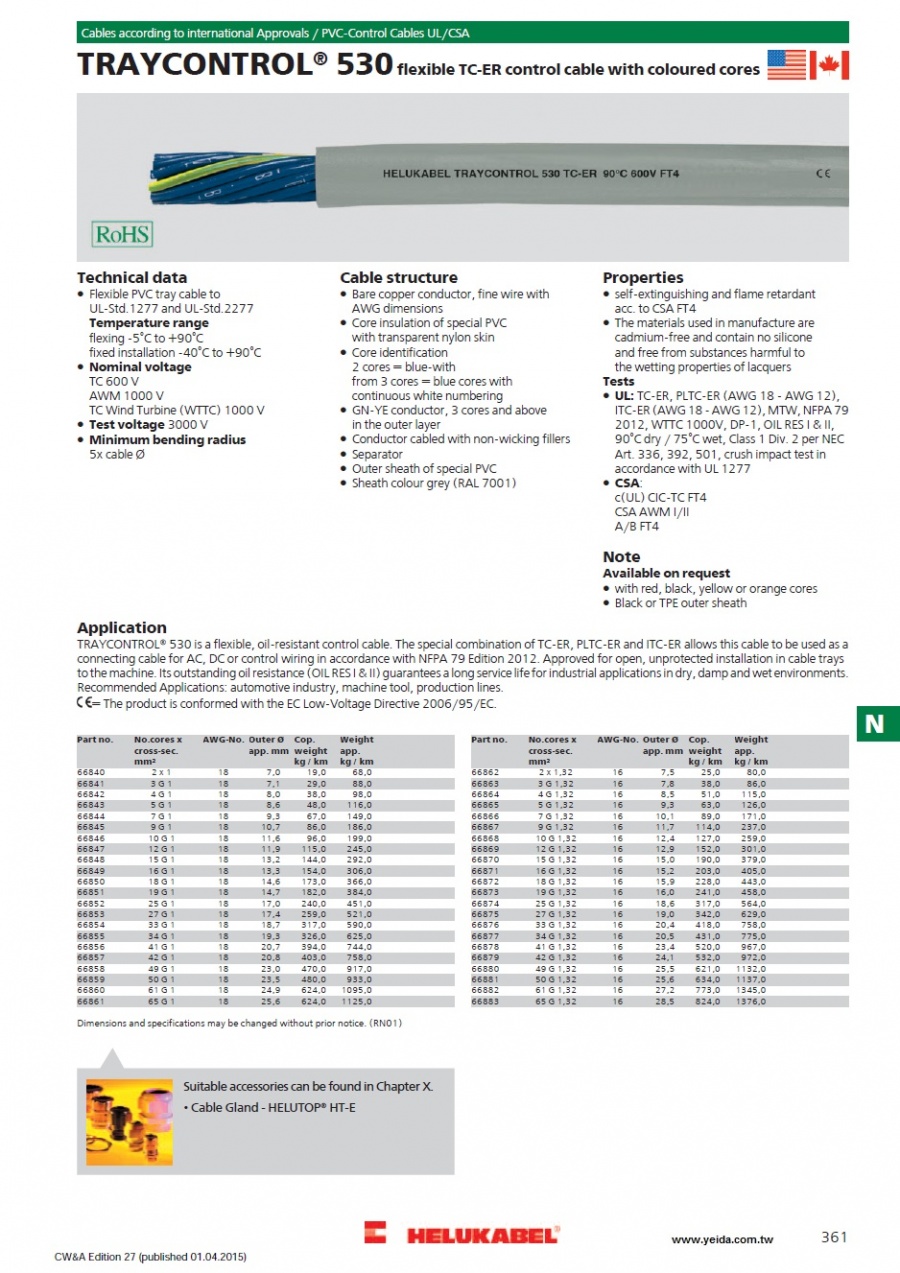

Flexible PVC tray cable to UL-Std.1277 and UL-Std.2277 Temperature range flexing -5°C to +90°C fixed installation -40°C to +90°C
Nominal voltage TC 600 V AWM 1000 V TC Wind Turbine (WTTC) 1000 V
Test voltage 3000 V
Minimum bending radius 5x cable Ø
Cable structure
Bare copper conductor, fine wire with AWG dimensions
Core insulation of special PVC with transparent nylon skin
Core identification 2 cores = blue-with from 3 cores = blue cores with continuous white numbering
GN-YE conductor, 3 cores and above in the outer layer
Conductor cabled with non-wicking fillers
Separator
Outer sheath of special PVC
Sheath colour grey (RAL 7001)
Properties
self-extinguishing and flame retardant acc. to CSA FT4
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
UL: TC-ER, PLTC-ER (AWG 18 - AWG 12), ITC-ER (AWG 18 - AWG 12), MTW, NFPA 79 2012, WTTC 1000V, DP-1, OIL RES I & II, 90°C dry / 75°C wet, Class 1 Div. 2 per NEC Art. 336, 392, 501, crush impact test in accordance with UL 1277
CSA: c(UL) CIC-TC FT4 CSA AWM I/II A/B FT4
Note
Available on request
with red, black, yellow or orange cores
Black or TPE outer sheath
Application
TRAYCONTROL® 530 is a flexible, oil-resistant control cable. The special combination of TC-ER, PLTC-ER and ITC-ER allows this cable to be used as a connecting cable for AC, DC or control wiring in accordance with NFPA 79 Edition 2012. Approved for open, unprotected installation in cable trays to the machine. Its outstanding oil resistance (OIL RES I & II) guarantees a long service life for industrial applications in dry, damp and wet environments. Recommended Applications: automotive industry, machine tool, production lines. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
