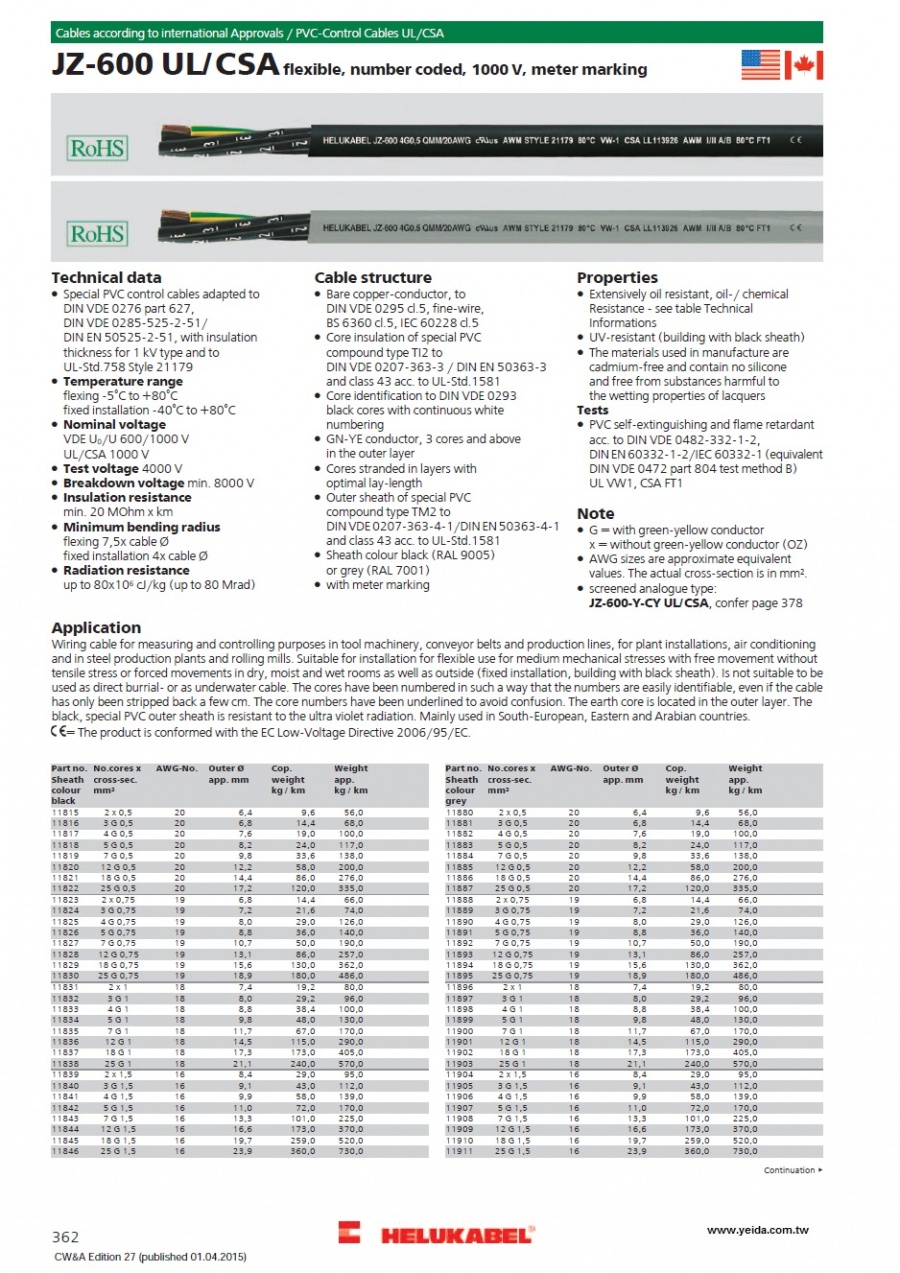

Special PVC control cables adapted to DIN VDE 0276 part 627, DIN VDE 0285-525-2-51/ DIN EN 50525-2-51, with insulation thickness for 1 kV type and to UL-Std.758 Style 21179
Temperature range flexing -5°C to +80°C fixed installation -40°C to +80°C
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Cable structure
Bare copper-conductor, to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation of special PVC compound type TI2 to DIN VDE 0207-363-3 / DIN EN 50363-3 and class 43 acc. to UL-Std.1581
Core identification to DIN VDE 0293 black cores with continuous white numbering
GN-YE conductor, 3 cores and above in the outer layer
Cores stranded in layers with optimal lay-length
Outer sheath of special PVC compound type TM2 to DIN VDE 0207-363-4-1/DIN EN 50363-4-1 and class 43 acc. to UL-Std.1581
Sheath colour black (RAL 9005) or grey (RAL 7001)
with meter marking
Properties
Extensively oil resistant, oil-/ chemical Resistance - see table Technical Informations
UV-resistant (building with black sheath)
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2/IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B) UL VW1, CSA FT1
Note
G = with green-yellow conductor x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
screened analogue type: JZ-600-Y-CY UL/CSA
Application
Wiring cable for measuring and controlling purposes in tool machinery, conveyor belts and production lines, for plant installations, air conditioning and in steel production plants and rolling mills. Suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation, building with black sheath). Is not suitable to be used as direct burrial- or as underwater cable. The cores have been numbered in such a way that the numbers are easily identifiable, even if the cable has only been stripped back a few cm. The core numbers have been underlined to avoid confusion. The earth core is located in the outer layer. The black, special PVC outer sheath is resistant to the ultra violet radiation. Mainly used in South-European, Eastern and Arabian countries. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
