JZ-604 TC TRAY CABLE PVC power cable, exposed run, NFPA79 Edition 2012, 90°C, 600V, meter marking

30169445

商品編號: HELUKABEL-JZ-604

JZ-604 TC TRAY CABLE PVC power cable, exposed run, NFPA79 Edition 2012, 90°C, 600V, meter marking

★★★★商品說明★★★★

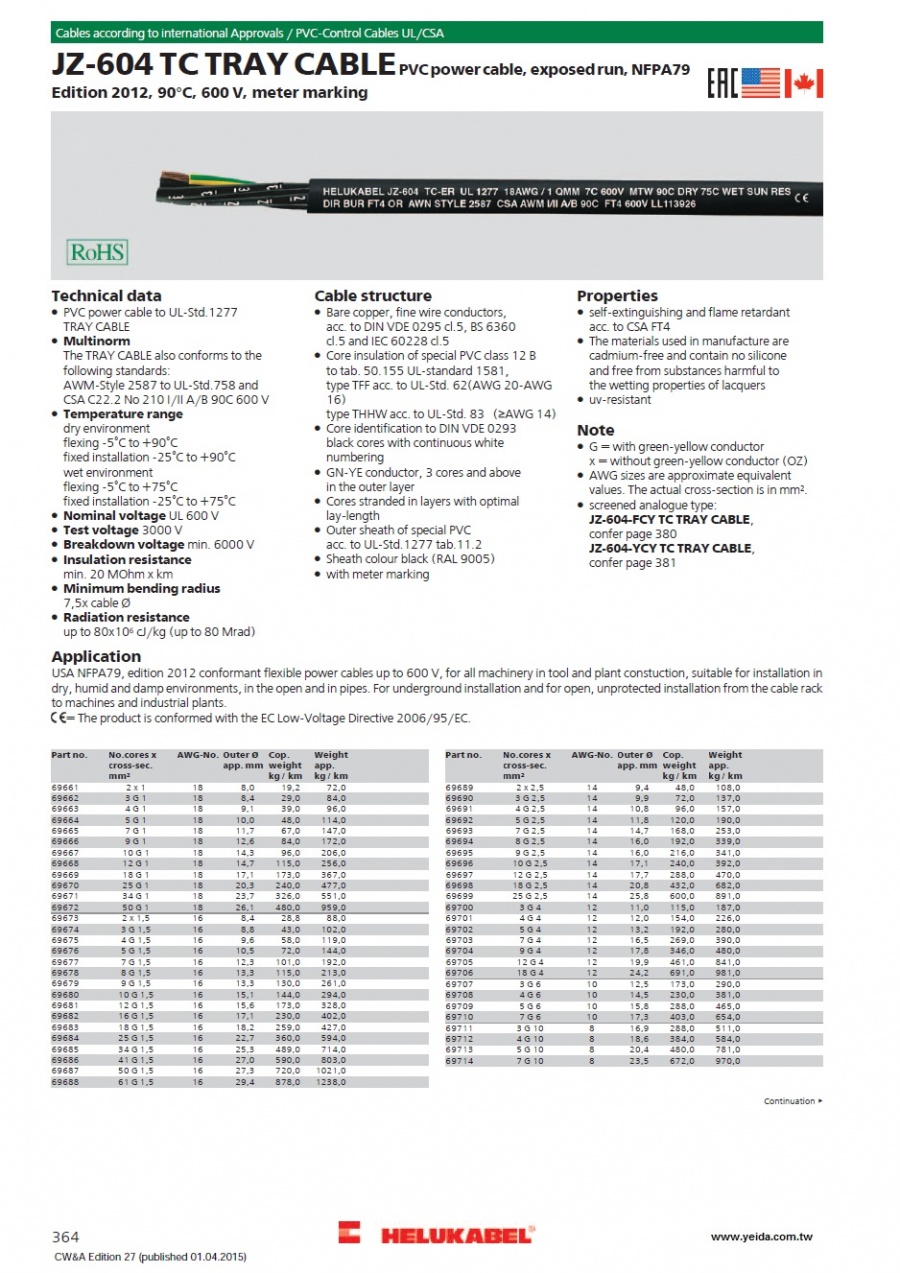

Technical data

PVC power cable to UL-Std.1277
TRAY CABLE
Multinorm
The TRAY CABLE also conforms to the
following standards:
AWM-Style 2587 to UL-Std.758 and
CSA C22.2 No 210 I/II A/B 90C 600 V
Temperature range
dry environment
flexing -5°C to +90°C
fixed installation -25°C to +90°C
wet environment
flexing -5°C to +75°C
fixed installation -25°C to +75°C
Nominal voltage UL 600 V
Test voltage 3000 V
Breakdown voltage min. 6000 V
Insulation resistance
min. 20 MOhm x km
Minimum bending radius
7,5x cable Ø
Radiation resistance
up to 80x10⁶ cJ/kg (up to 80 Mrad)

Cable structure

Bare copper, fine wire conductors,
acc. to DIN VDE 0295 cl.5, BS 6360
cl.5 and IEC 60228 cl.5
Core insulation of special PVC class 12 B
to tab. 50.155 UL-standard 1581,
type TFF acc. to UL-Std. 62(AWG 20-AWG 16)
type THHW acc. to UL-Std. 83 (≥AWG 14)
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layers with optimal
lay-length
Outer sheath of special PVC
acc. to UL-Std.1277 tab.11.2
Sheath colour black (RAL 9005)
with meter marking

Properties

self-extinguishing and flame retardant
acc. to CSA FT4
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers
uv-resistant

Note

G = with green-yellow conductor
x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
screened analogue type:
JZ-604-FCY TC TRAY CABLE
JZ-604-YCY TC TRAY CABLE

Application

USA NFPA79, edition 2012 conformant flexible power cables up to 600 V, for all machinery in tool and plant constuction, suitable for installation in dry, humid and damp environments, in the open and in pipes. For underground installation and for open, unprotected installation from the cable rack to machines and industrial plants.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
