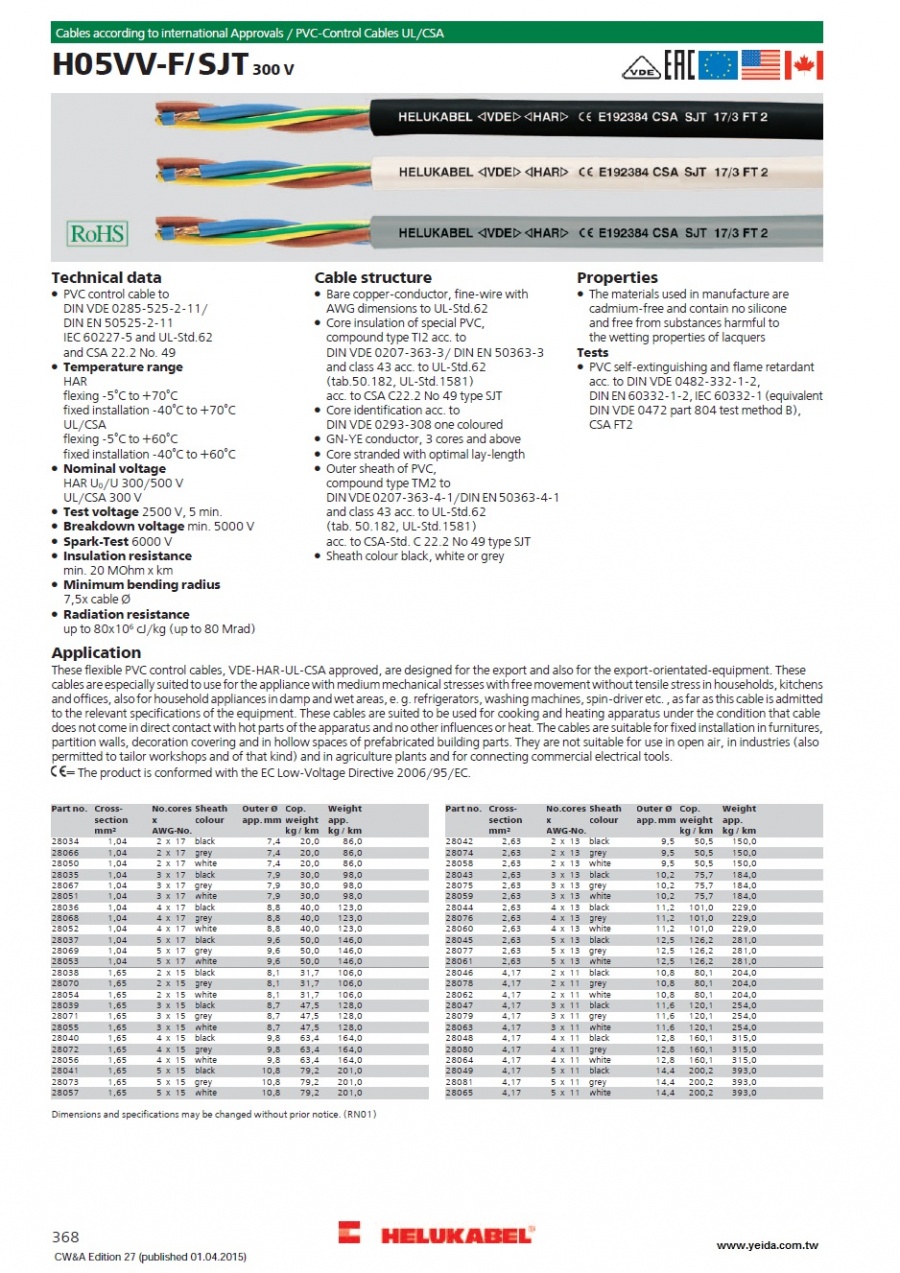

• PVC control cable to
  DIN VDE 0285-525-2-11/
  DIN EN 50525-2-11
  IEC 60227-5 and UL-Std.62
  and CSA 22.2 No. 49
• Temperature range
  HAR
  flexing -5°C to +70°C
  fixed installation -40°C to +70°C
  UL/CSA
  flexing -5°C to +60°C
  fixed installation -40°C to +60°C
• Nominal voltage
  HAR U₀/U 300/500 V
  UL/CSA 300 V
• Test voltage 2500 V, 5 min.
• Breakdown voltage min. 5000 V
• Spark-Test 6000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  7,5x cable Ø
• Radiation resistance
  up to 80x10⁶ cJ/kg (up to 80 Mrad)

• Bare copper-conductor, fine-wire with
  AWG dimensions to UL-Std.62
• Core insulation of special PVC,
  compound type TI2 acc. to
  DIN VDE 0207-363-3/ DIN EN 50363-3
  and class 43 acc. to UL-Std.62
  (tab.50.182, UL-Std.1581)
  acc. to CSA C22.2 No 49 type SJT
• Core identification acc. to
  DIN VDE 0293-308 one coloured
• GN-YE conductor, 3 cores and above
• Core stranded with optimal lay-length
• Outer sheath of PVC,
  compound type TM2 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
  and class 43 acc. to UL-Std.62
  (tab. 50.182, UL-Std.1581)
  acc. to CSA-Std. C 22.2 No 49 type SJT
• Sheath colour black, white or grey

• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B),
  CSA FT2
