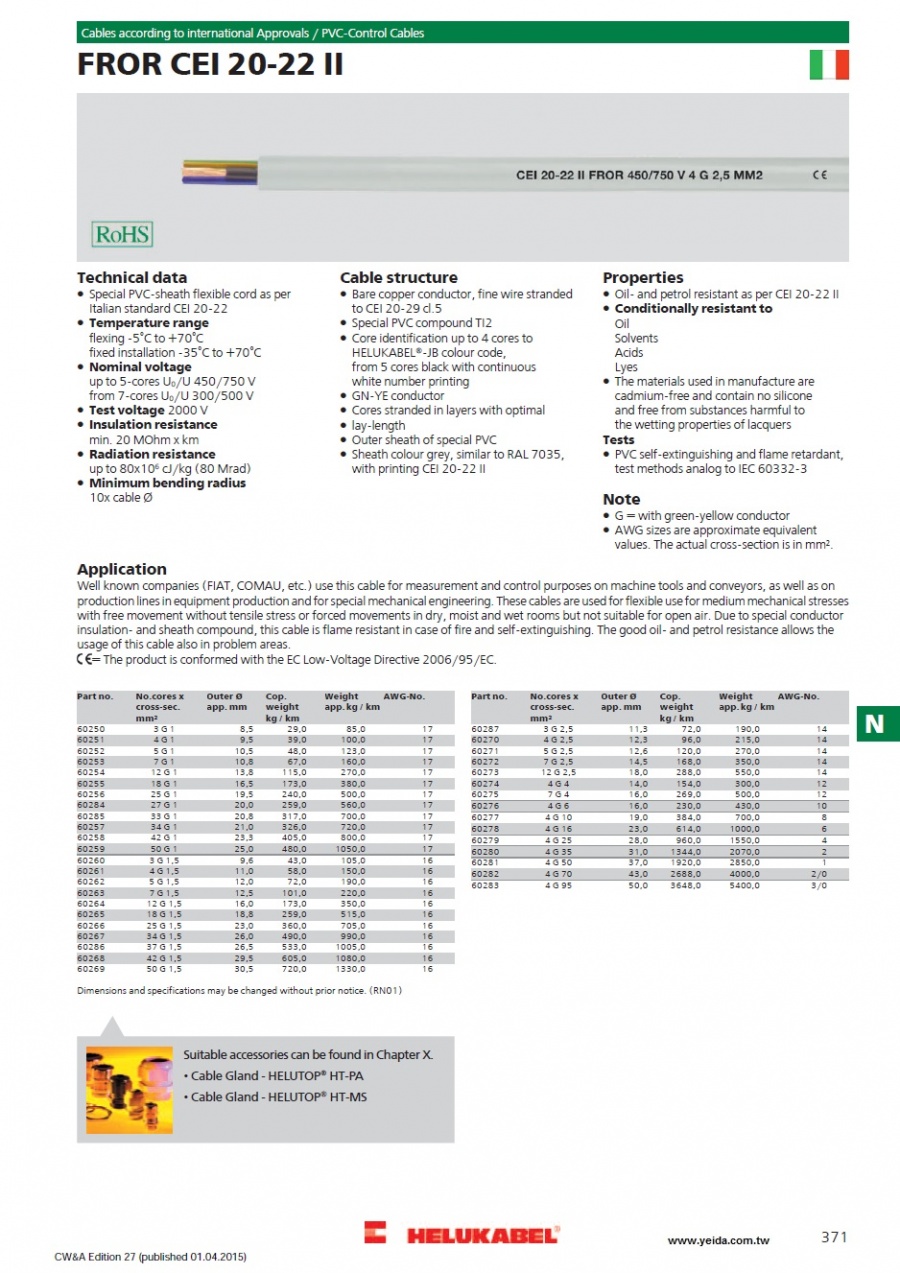

Special PVC-sheath flexible cord as per Italian standard CEI 20-22
Temperature range flexing -5°C to +70°C fixed installation -35°C to +70°C
Nominal voltage up to 5-cores U0/U 450/750 V from 7-cores U0/U 300/500 V
Test voltage 2000 V
Insulation resistance min. 20 MOhm x km
Radiation resistance up to 80x106 cJ/kg (80 Mrad)
Minimum bending radius 10x cable Ø
Cable structure
Bare copper conductor, fine wire stranded to CEI 20-29 cl.5
Special PVC compound TI2
Core identification up to 4 cores to HELUKABEL®-JB colour code, from 5 cores black with continuous white number printing
GN-YE conductor
Cores stranded in layers with optimal
lay-length
Outer sheath of special PVC
Sheath colour grey, similar to RAL 7035, with printing CEI 20-22 II
Properties
Oil- and petrol resistant as per CEI 20-22 II
Conditionally resistant to Oil Solvents Acids Lyes
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
PVC self-extinguishing and flame retardant, test methods analog to IEC 60332-3
Note
G = with green-yellow conductor
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application
Well known companies (FIAT, COMAU, etc.) use this cable for measurement and control purposes on machine tools and conveyors, as well as on production lines in equipment production and for special mechanical engineering. These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air. Due to special conductor insulation- and sheath compound, this cable is flame resistant in case of fire and self-extinguishing. The good oil- and petrol resistance allows the usage of this cable also in problem areas. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
