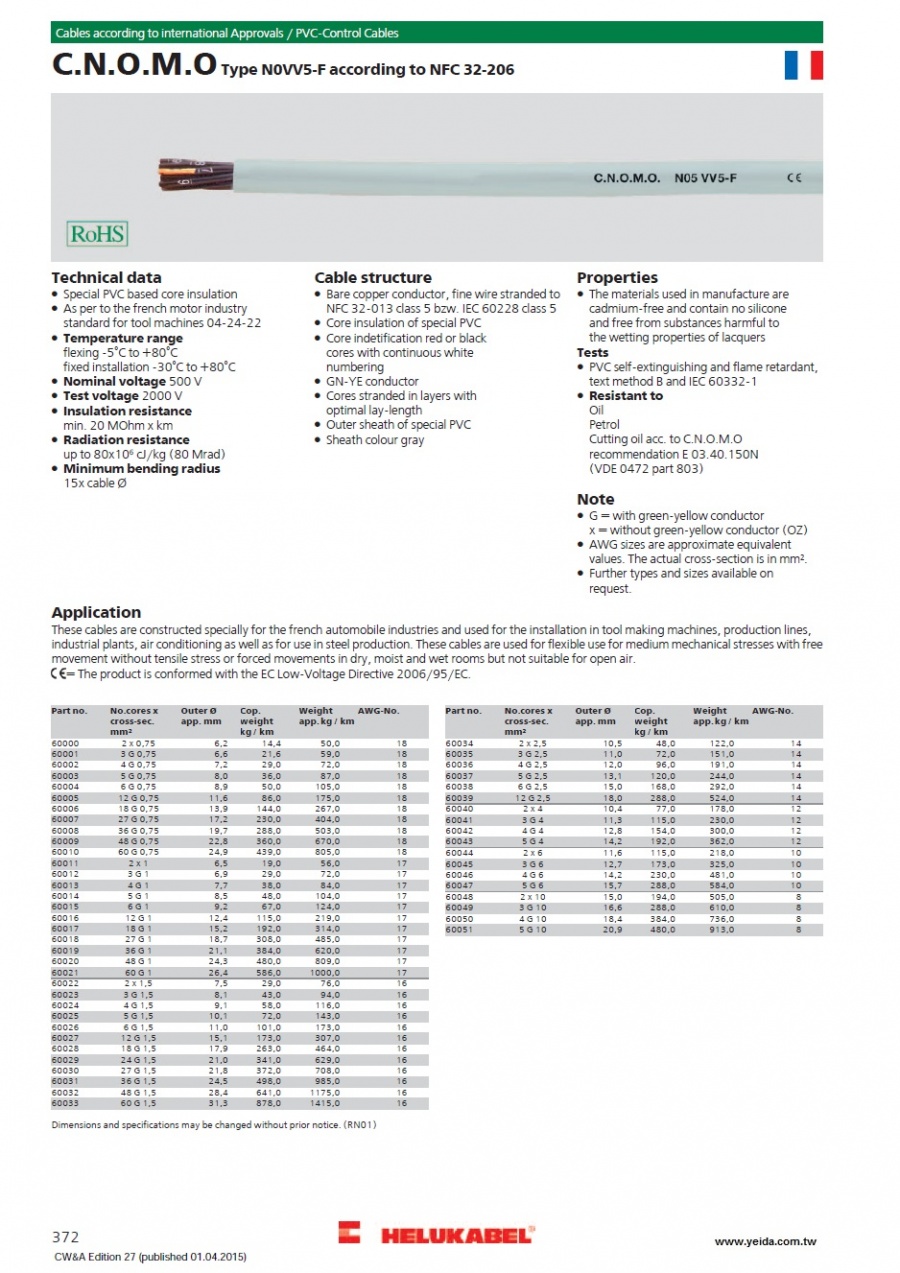

As per to the french motor industry standard for tool machines 04-24-22
Temperature range flexing -5°C to +80°C fixed installation -30°C to +80°C
Nominal voltage 500 V
Test voltage 2000 V
Insulation resistance min. 20 MOhm x km
Radiation resistance up to 80x106 cJ/kg (80 Mrad)
Minimum bending radius 15x cable Ø
Cable structure
Bare copper conductor, fine wire stranded to NFC 32-013 class 5 bzw. IEC 60228 class 5
Core insulation of special PVC
Core indetification red or black cores with continuous white numbering
GN-YE conductor
Cores stranded in layers with optimal lay-length
Outer sheath of special PVC
Sheath colour gray
Properties
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
PVC self-extinguishing and flame retardant, text method B and IEC 60332-1
Resistant to Oil Petrol Cutting oil acc. to C.N.O.M.O recommendation E 03.40.150N (VDE 0472 part 803)
Note
G = with green-yellow conductor x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Further types and sizes available on request.
Application
These cables are constructed specially for the french automobile industries and used for the installation in tool making machines, production lines, industrial plants, air conditioning as well as for use in steel production. These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
