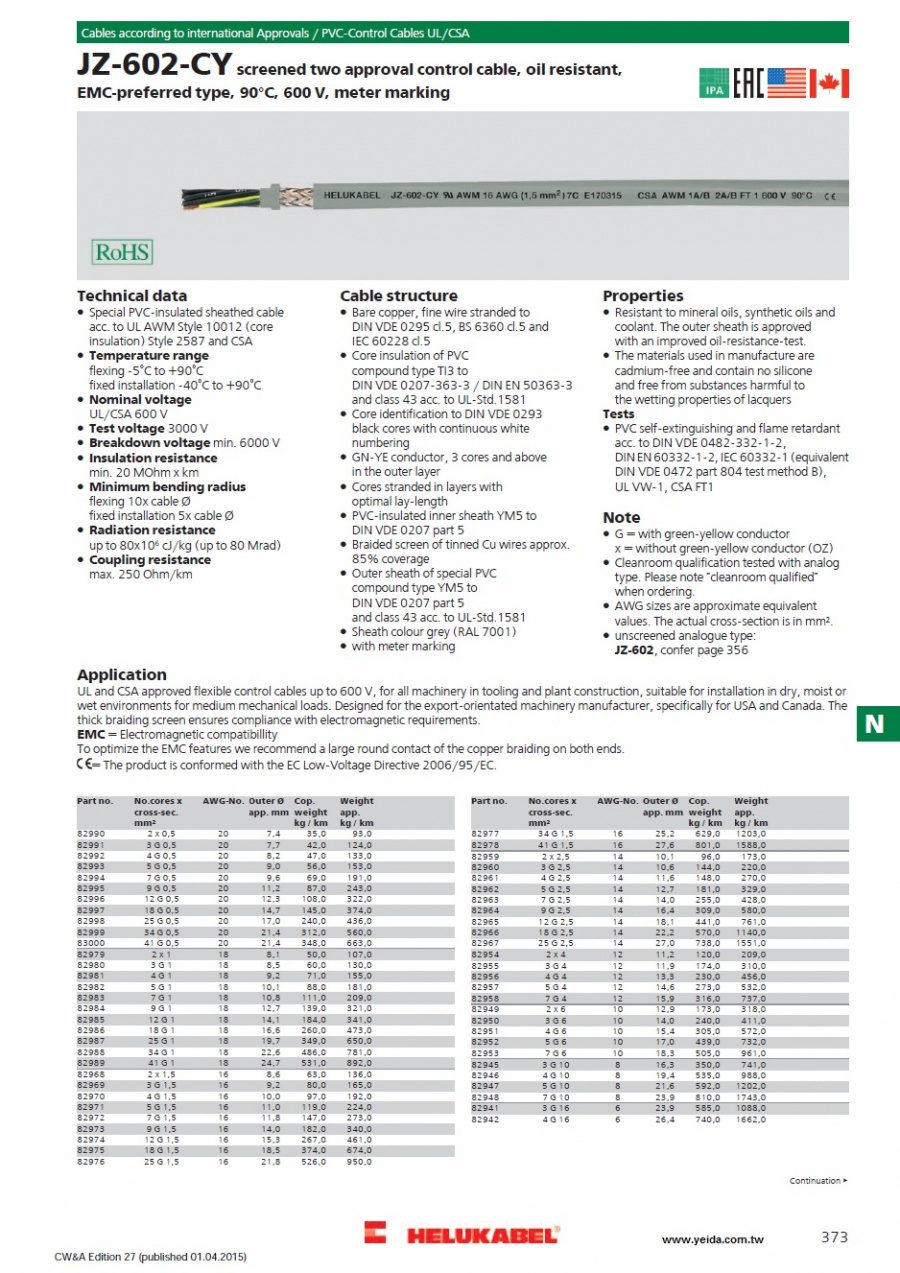

Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Coupling resistance max. 250 Ohm/km
Cable structure
Bare copper, fine wire stranded to DIN VDE 0295 cl.5, BS 6360 cl.5 and IEC 60228 cl.5
Core insulation of PVC compound type TI3 to DIN VDE 0207-363-3 / DIN EN 50363-3 and class 43 acc. to UL-Std.1581
Core identification to DIN VDE 0293 black cores with continuous white numbering
GN-YE conductor, 3 cores and above in the outer layer
Cores stranded in layers with optimal lay-length
PVC-insulated inner sheath YM5 to DIN VDE 0207 part 5
Braided screen of tinned Cu wires approx. 85% coverage
Outer sheath of special PVC compound type YM5 to DIN VDE 0207 part 5 and class 43 acc. to UL-Std.1581
Sheath colour grey (RAL 7001)
with meter marking
Properties
Resistant to mineral oils, synthetic oils and coolant. The outer sheath is approved with an improved oil-resistance-test.
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B), UL VW-1, CSA FT1
Note
G = with green-yellow conductor x = without green-yellow conductor (OZ)
Cleanroom qualification tested with analog type. Please note "cleanroom qualified" when ordering.
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
unscreened analogue type: JZ-602
Application
UL and CSA approved flexible control cables up to 600 V, for all machinery in tooling and plant construction, suitable for installation in dry, moist or wet environments for medium mechanical loads. Designed for the export-orientated machinery manufacturer, specifically for USA and Canada. The thick braiding screen ensures compliance with electromagnetic requirements. EMC = Electromagnetic compatibillity To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
