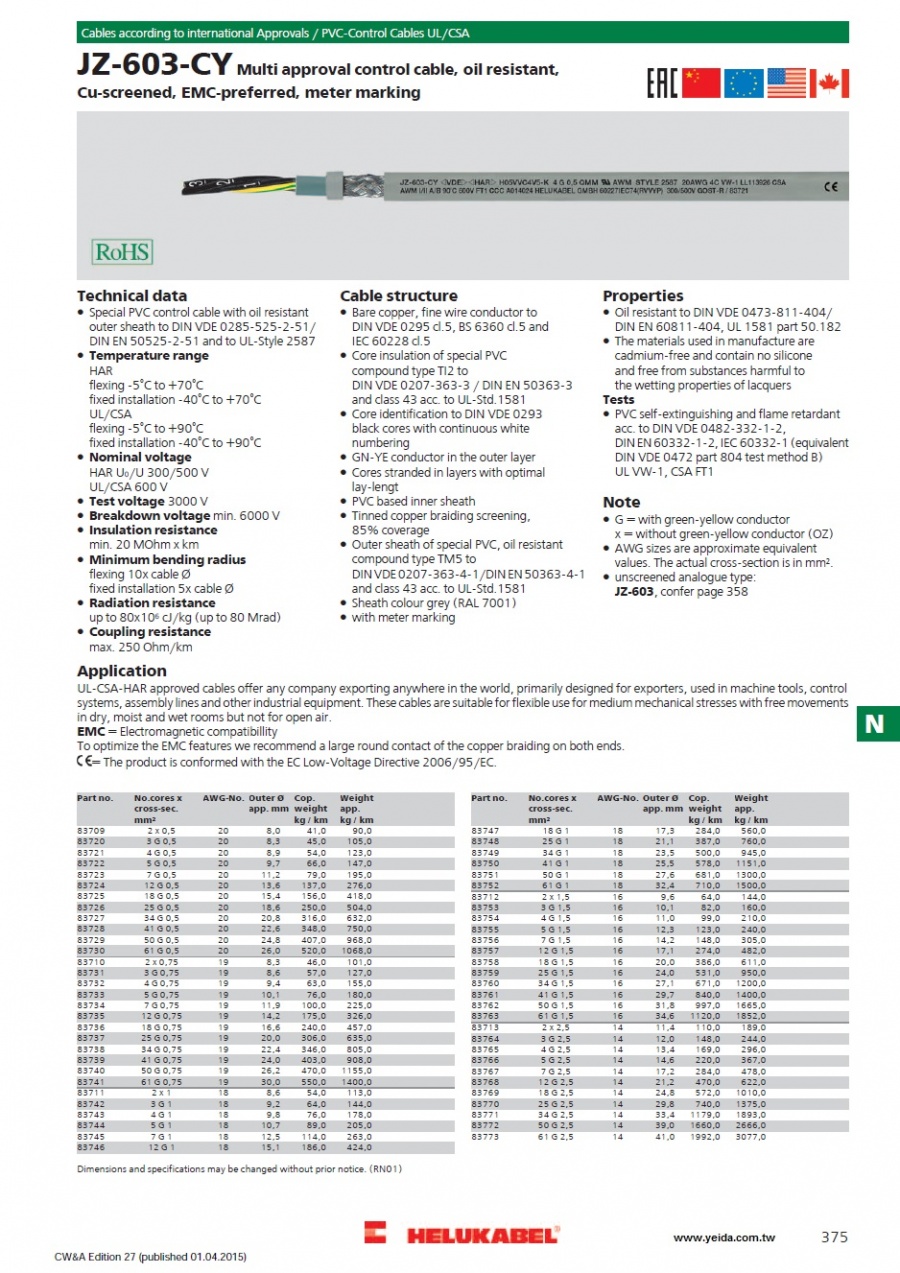

• Special PVC control cable with oil resistant
  outer sheath to DIN VDE 0285-525-2-51/
  DIN EN 50525-2-51 and to UL-Style 2587
• Temperature range
  HAR
  flexing -5°C to +70°C
  fixed installation -40°C to +70°C
  UL/CSA
  flexing -5°C to +90°C
  fixed installation -40°C to +90°C
• Nominal voltage
  HAR U₀/U 300/500 V
  UL/CSA 600 V
• Test voltage 3000 V
• Breakdown voltage min. 6000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 10x cable Ø
  fixed installation 5x cable Ø
• Radiation resistance
  up to 80x10⁶ cJ/kg (up to 80 Mrad)
• Coupling resistance
  max. 250 Ohm/km

• Bare copper, fine wire conductor to
  DIN VDE 0295 cl.5, BS 6360 cl.5 and
  IEC 60228 cl.5
• Core insulation of special PVC
  compound type TI2 to
  DIN VDE 0207-363-3 / DIN EN 50363-3
  and class 43 acc. to UL-Std.1581
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor in the outer layer
• Cores stranded in layers with optimal
  lay-lengt
• PVC based inner sheath
• Tinned copper braiding screening,
  85% coverage
• Outer sheath of special PVC, oil resistant
  compound type TM5 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
  and class 43 acc. to UL-Std.1581
• Sheath colour grey (RAL 7001)
• with meter marking

• Oil resistant to DIN VDE 0473-811-404/
  DIN EN 60811-404, UL 1581 part 50.182
• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)
  UL VW-1, CSA FT1

• G = with green-yellow conductor
  x = without green-yellow conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².

• unscreened analogue type:
  JZ-603
