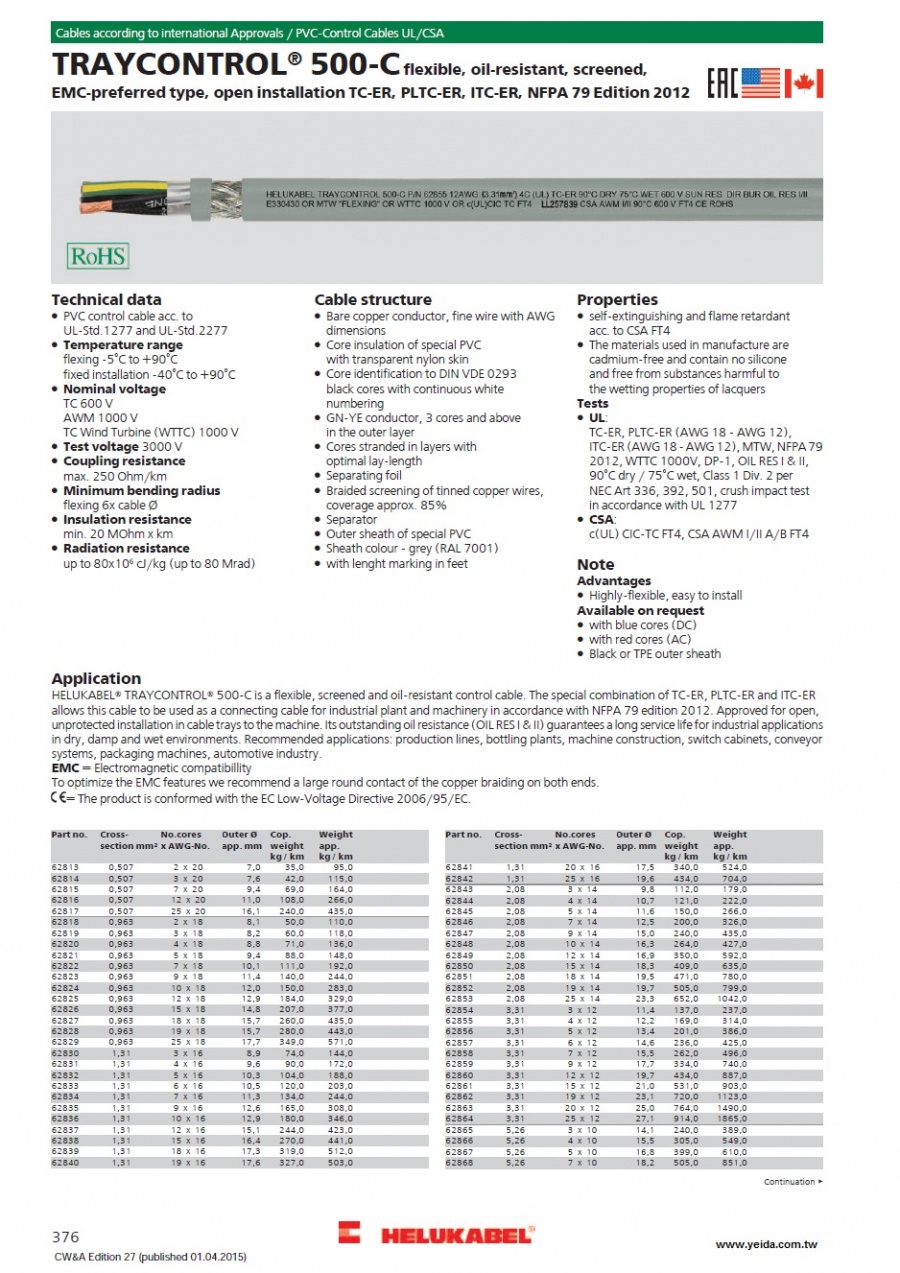

TRAYCONTROL® 500-C flexible, oil-resistant, screened, EMC-preferred type, open installation TC-ER, PLTC-ER, ITC-ER, NFPA 79 Edition 2012

30169453

商品編號: HELUKABEL-TRAYCONTROL-500-C

TRAYCONTROL® 500-C flexible, oil-resistant, screened, EMC-preferred type, open installation TC-ER, PLTC-ER, ITC-ER, NFPA 79 Edition 2012

★★★★商品說明★★★★

Technical data

PVC control cable acc. to
UL-Std.1277 and UL-Std.2277
Temperature range
flexing -5°C to +90°C
fixed installation -40°C to +90°C
Nominal voltage
TC 600 V
AWM 1000 V
TC Wind Turbine (WTTC) 1000 V
Test voltage 3000 V
Coupling resistance
max. 250 Ohm/km
Minimum bending radius
flexing 6x cable Ø
Insulation resistance
min. 20 MOhm x km
Radiation resistance
up to 80x10⁶ cJ/kg (up to 80 Mrad)

Cable structure

Bare copper conductor, fine wire with AWG dimensions
Core insulation of special PVC
with transparent nylon skin
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layers with
optimal lay-length
Separating foil
Braided screening of tinned copper wires,
coverage approx. 85%
Separator
Outer sheath of special PVC
Sheath colour grey (RAL 7001)
with lenght marking in feet

Properties

self-extinguishing and flame retardant
acc. to CSA FT4
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers

Tests

UL:
TC-ER, PLTC-ER (AWG 18 - AWG 12),
ITC-ER (AWG 18 - AWG 12), MTW, NFPA 79
2012, WTTC 1000V, DP-1, OIL RES I & II,
90°C dry / 75°C wet, Class 1 Div. 2 per
NEC Art 336, 392, 501, crush impact test
in accordance with UL 1277
CSA:
c(UL) CIC-TC FT4, CSA AWM I/II A/B FT4

Note

Advantages

Highly-flexible, easy to install

Available on request

with blue cores (DC)
with red cores (AC)
Black or TPE outer sheath

Application

HELUKABEL® TRAYCONTROL® 500-C is a flexible, screened and oil-resistant control cable. The special combination of TC-ER, PLTC-ER and ITC-ER allows this cable to be used as a connecting cable for industrial plant and machinery in accordance with NFPA 79 edition 2012. Approved for open, unprotected installation in cable trays to the machine. Its outstanding oil resistance (OIL RES I & II) guarantees a long service life for industrial applications in dry, damp and wet environments. Recommended applications: production lines, bottling plants, machine construction, switch cabinets, conveyor systems, packaging machines, automotive industry.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	Cross- section mm²	No.cores x AWG-No.	Outer Ø app. mm	Cop. weight kg / km	Weight app. kg / km
62813	0,507	2 x 20	7,0	35,0	95,0
62814	0,507	3 x 20	7,6	42,0	115,0
62815	0,507	7 x 20	9,4	69,0	164,0
62816	0,507	12 x 20	11,0	108,0	266,0
62817	0,507	25 x 20	16,1	240,0	435,0
62818	0,963	2 x 18	8,1	50,0	110,0
62819	0,963	3 x 18	8,2	60,0	118,0
62820	0,963	4 x 18	8,8	71,0	136,0
62821	0,963	5 x 18	9,4	88,0	148,0
62822	0,963	7 x 18	10,1	111,0	192,0
62823	0,963	9 x 18	11,4	140,0	244,0
62824	0,963	10 x 18	12,0	150,0	283,0
62825	0,963	12 x 18	12,9	184,0	329,0
62826	0,963	15 x 18	14,8	207,0	377,0
62827	0,963	18 x 18	15,7	260,0	435,0
62828	0,963	19 x 18	15,7	280,0	443,0
62829	0,963	25 x 18	17,7	349,0	571,0
62830	1,31	3 x 16	8,9	74,0	144,0
62831	1,31	4 x 16	9,6	90,0	172,0
62832	1,31	5 x 16	10,3	104,0	188,0
62833	1,31	6 x 16	10,5	120,0	203,0
62834	1,31	7 x 16	11,3	134,0	244,0
62835	1,31	9 x 16	12,6	165,0	308,0
62836	1,31	10 x 16	12,9	180,0	346,0
62837	1,31	12 x 16	15,1	244,0	423,0
62838	1,31	15 x 16	16,4	270,0	441,0
62839	1,31	18 x 16	17,3	319,0	512,0
62840	1,31	19 x 16	17,6	327,0	503,0
62841	1,31	20 x 16	17,5	340,0	524,0
62842	1,31	25 x 16	19,6	434,0	704,0
62843	2,08	3 x 14	9,8	112,0	179,0
62844	2,08	4 x 14	10,7	121,0	222,0
62845	2,08	5 x 14	11,6	150,0	266,0
62846	2,08	7 x 14	12,5	200,0	326,0
62847	2,08	9 x 14	15,0	240,0	435,0
62848	2,08	10 x 14	16,3	264,0	427,0
62849	2,08	12 x 14	16,9	350,0	592,0
62850	2,08	15 x 14	18,3	409,0	635,0
62851	2,08	18 x 14	19,5	471,0	780,0
62852	2,08	19 x 14	19,7	505,0	799,0
62853	2,08	25 x 14	23,3	652,0	1042,0
62854	3,31	3 x 12	11,4	137,0	237,0
62855	3,31	4 x 12	12,2	169,0	314,0
62856	3,31	5 x 12	13,4	201,0	386,0
62857	3,31	6 x 12	14,6	236,0	425,0
62858	3,31	7 x 12	15,5	262,0	496,0
62859	3,31	9 x 12	17,7	334,0	740,0
62860	3,31	12 x 12	19,7	434,0	887,0
62861	3,31	15 x 12	21,0	531,0	903,0
62862	3,31	19 x 12	23,1	720,0	1123,0
62863	3,31	20 x 12	25,0	764,0	1490,0
62864	3,31	25 x 12	27,1	914,0	1865,0
62865	5,26	3 x 10	14,1	240,0	389,0
62866	5,26	4 x 10	15,5	305,0	549,0
62867	5,26	5 x 10	16,8	399,0	610,0
62868	5,26	7 x 10	18,2	505,0	851,0
62869	5,26	9 x 10	20,9	704,0	1132,0
62870	5,26	12 x 10	24,4	940,0	1523,0
62871	5,26	19 x 10	27,5	1210,0	1952,0
62872	8,37	4 x 8	19,9	535,0	852,0
62873	13,3	4 x 6	23,3	740,0	1202,0
62874	21,2	4 x 4	28,6	1140,0	1971,0
62875	33,6	4 x 2	33,2	1576,0	2887,0
