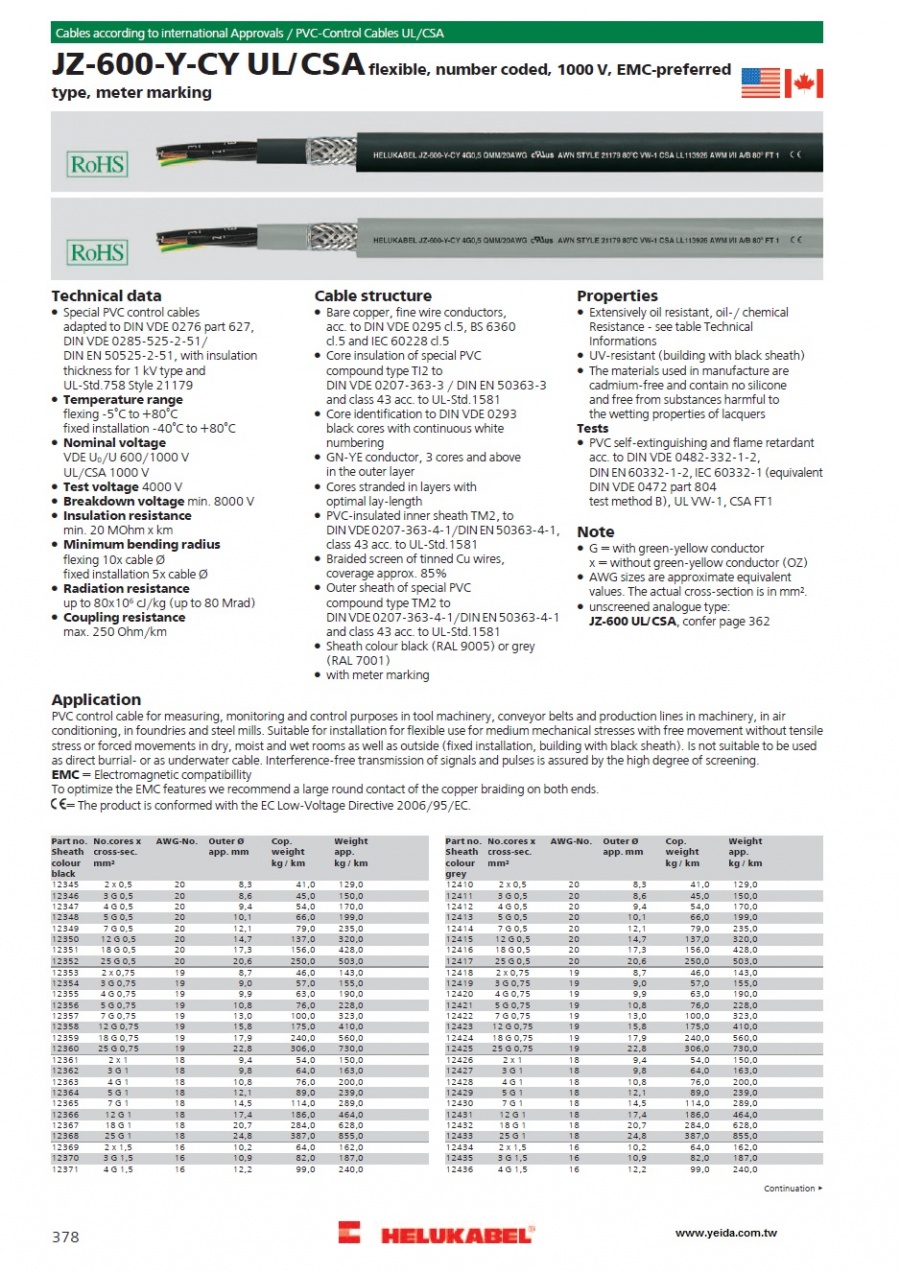

Special PVC control cables adapted to DIN VDE 0276 part 627, DIN VDE 0285-525-2-51/ DIN EN 50525-2-51, with insulation thickness for 1 kV type and UL-Std.758 Style 21179
Temperature range flexing -5°C to +80°C fixed installation -40°C to +80°C
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Coupling resistance max. 250 Ohm/km
Cable structure
Bare copper, fine wire conductors, acc. to DIN VDE 0295 cl.5, BS 6360 cl.5 and IEC 60228 cl.5
Core insulation of special PVC compound type TI2 to DIN VDE 0207-363-3 / DIN EN 50363-3 and class 43 acc. to UL-Std.1581
Core identification to DIN VDE 0293 black cores with continuous white numbering
GN-YE conductor, 3 cores and above in the outer layer
Cores stranded in layers with optimal lay-length
PVC-insulated inner sheath TM2, to DIN VDE 0207-363-4-1/DIN EN 50363-4-1, class 43 acc. to UL-Std.1581
Braided screen of tinned Cu wires, coverage approx. 85%
Outer sheath of special PVC compound type TM2 to DIN VDE 0207-363-4-1/DIN EN 50363-4-1 and class 43 acc. to UL-Std.1581
Sheath colour black (RAL 9005) or grey (RAL 7001)
with meter marking
Properties
Extensively oil resistant, oil-/ chemical Resistance - see table Technical Informations
UV-resistant (building with black sheath)
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B), UL VW-1, CSA FT1
Note
G = with green-yellow conductor x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
unscreened analogue type: JZ-600 UL/CSA
Application
PVC control cable for measuring, monitoring and control purposes in tool machinery, conveyor belts and production lines in machinery, in air conditioning, in foundries and steel mills. Suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation, building with black sheath). Is not suitable to be used as direct burrial- or as underwater cable. Interference-free transmission of signals and pulses is assured by the high degree of screening. EMC = Electromagnetic compatibillity To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
