JZ-604-FCY TC TRAY CABLE / OZ-604-FCY TC TRAY CABLE

30169455

商品編號: HELUKABEL-JZ-604-FCY

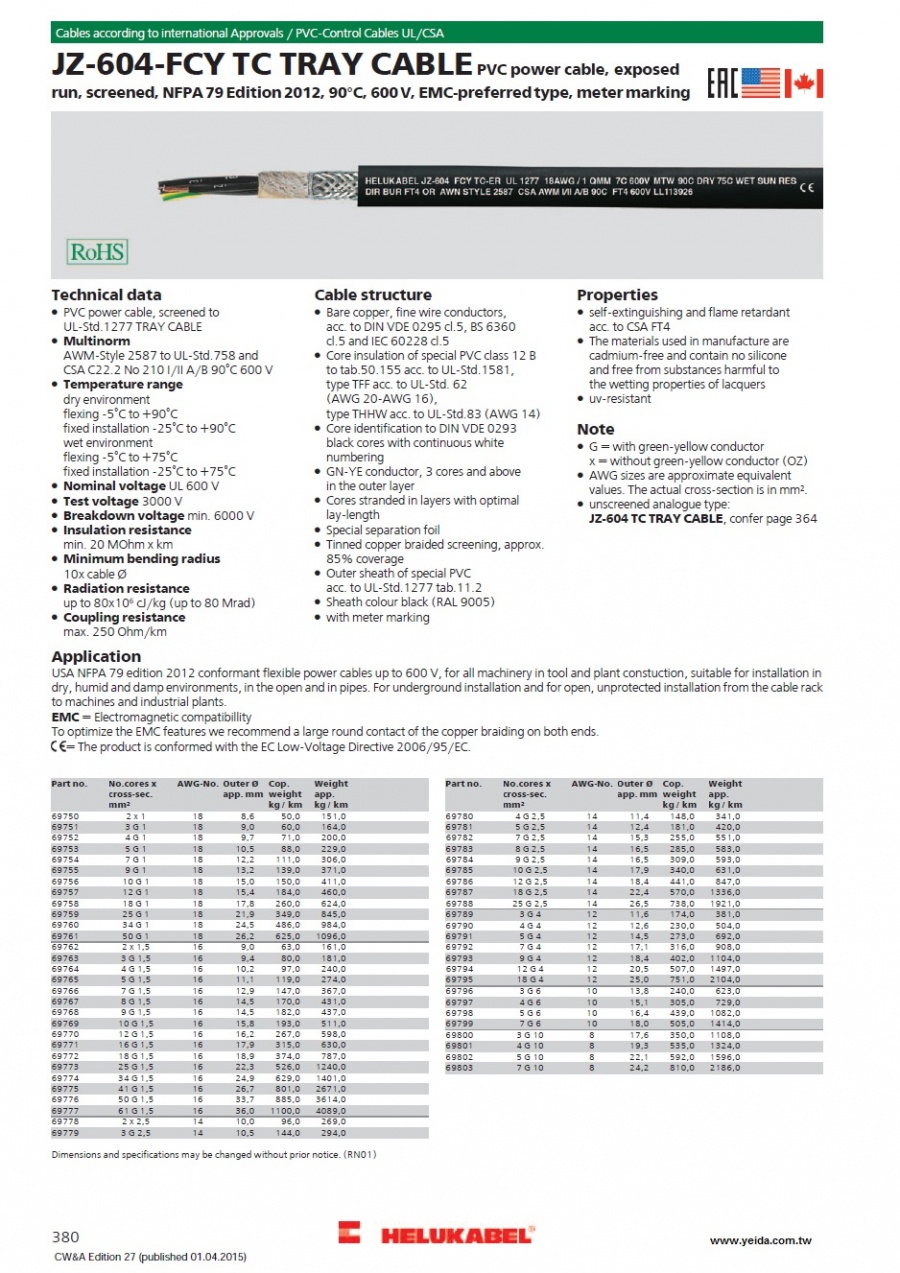

JZ-604-FCY TC TRAY CABLE / OZ-604-FCY TC TRAY CABLE

PVC power cable, screened, exposed run, NFPA 79 Edition 2012, 90°C, 600V, EMC-preferred type, meter marking

★★★★商品說明★★★★

Technical data

PVC power cable, screened to
UL-Std.1277 TRAY CABLE
Multinorm
AWM-Style 2587 to UL-Std.758 and
CSA C22.2 No 210 I/II A/B 90°C 600 V
Temperature range
dry environment
flexing -5°C to +90°C
fixed installation -25°C to +90°C
wet environment
flexing -5°C to +75°C
fixed installation -25°C to +75°C
Nominal voltage UL 600 V
Test voltage 3000 V
Breakdown voltage min. 6000 V
Insulation resistance
min. 20 MOhm x km
Minimum bending radius
10x cable Ø
Radiation resistance
up to 80x10⁶ cJ/kg (up to 80 Mrad)
Coupling resistance
max. 250 Ohm/km

Cable structure

Bare copper, fine wire conductors,
acc. to DIN VDE 0295 cl.5, BS 6360
cl.5 and IEC 60228 cl.5
Core insulation of special PVC class 12 B
to tab.50.155 acc. to UL-Std.1581,
type TFF acc. to UL-Std. 62
(AWG 20-AWG 16),
type THHW acc. to UL-Std.83 (AWG 14)
Core identification to DIN VDE 0293
black cores with continuous white
numbering
GN-YE conductor, 3 cores and above
in the outer layer
Cores stranded in layers with optimal
lay-length
Special separation foil
Tinned copper braided screening, approx.
85% coverage
Outer sheath of special PVC
acc. to UL-Std.1277 tab.11.2
Sheath colour black (RAL 9005)
with meter marking

Properties

self-extinguishing and flame retardant
acc. to CSA FT4
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers
uv-resistant

Note

G = with green-yellow conductor
x = without green-yellow conductor (OZ)
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
unscreened analogue type:
JZ-604 TC TRAY CABLE

Application

USA NFPA 79 edition 2012 conformant flexible power cables up to 600 V, for all machinery in tool and plant constuction, suitable for installation in dry, humid and damp environments, in the open and in pipes. For underground installation and for open, unprotected installation from the cable rack to machines and industrial plants.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
