| 商品編號: ANX-JAG45-05
JAG - Armored Cable Connector (Fittings) JAG - 金屬鎧裝電纜接頭 |
| |
| | |
玉山 / 台新 / 華南 / 萬泰 / 兆豐 / 遠東 / 新光 / 永豐 / 第一 / 彰化 / 合庫 / 日盛 / 匯豐 / 渣打國泰世華 / 台北富邦 / 大眾銀行 / 台灣中小企銀/台中商銀 / 澳盛銀行
| |
| | |

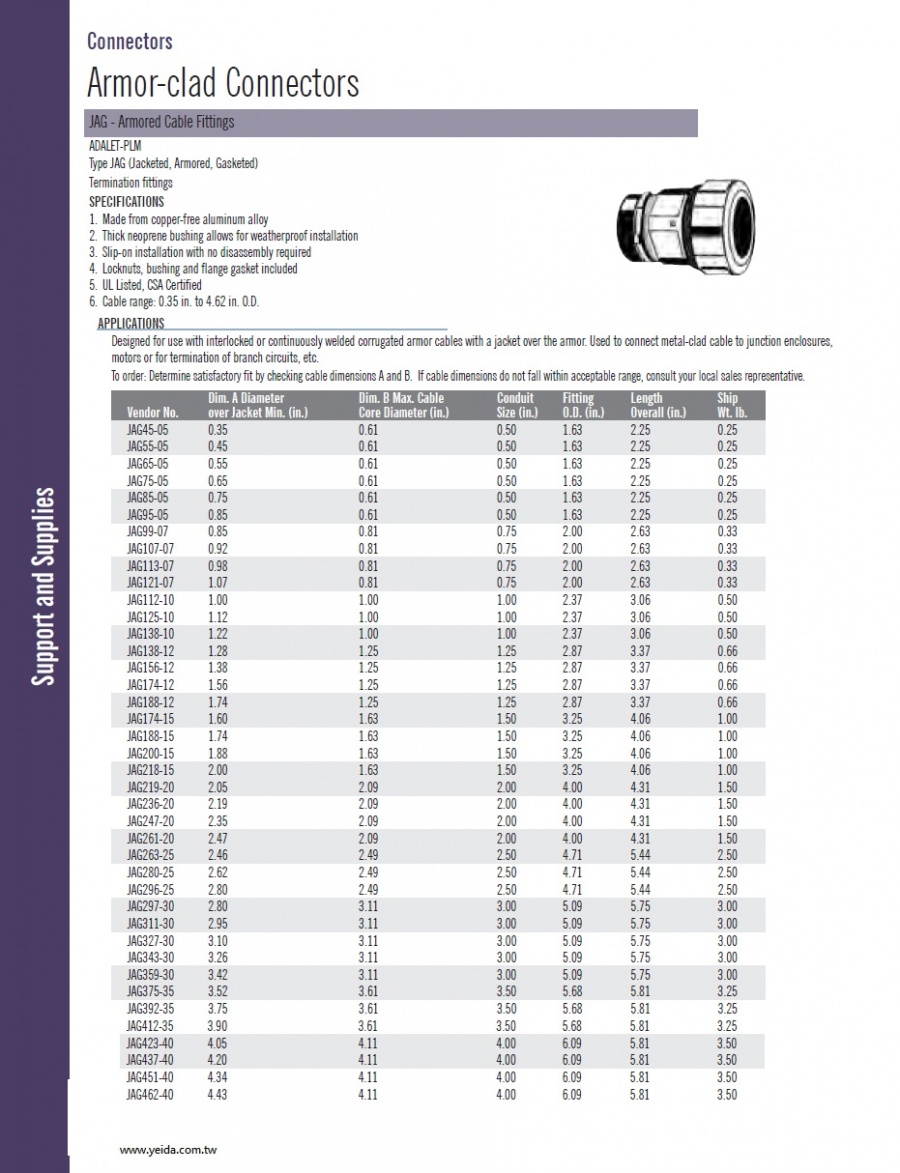

| | Connectors Armor-clad Connectors
JAG - Armored Cable Fittings ADALET-PLM Type JAG (Jacketed, Armored, Gasketed) Termination fittings
SPECIFICATIONS 1. Made from copper-free aluminum alloy 2. Thick neoprene bushing allows for weatherproof installation 3. Slip-on installation with no disassembly required 4. Locknuts, bushing and flange gasket included 5. UL Listed, CSA Certified 6. Cable range: 0.35 in. to 4.62 in. O.D.
APPLICATIONS Designed for use with interlocked or continuously welded corrugated armor cables with a jacket over the armor. Used to connect metal-clad cable to junction enclosures, motors or for termination of branch circuits, etc.
To order: Determine satisfactory fit by checking cable dimensions A and B. If cable dimensions do not fall within acceptable range, consult your local sales representative. |
| | | |
| | 連接器 裝甲的連接器
JAG - 鎧裝電纜接頭 ADALET-PLM JAG型(夾套,裝甲,墊圈) 終止配件
技術指標 1.從製造無銅鋁合金 2.厚的氯丁橡膠襯套允許全天候安裝 3.滑上進行安裝,無需拆卸 4.鎖緊螺母,包括襯套和法蘭墊片 5.列出的UL,CSA認證 6.電纜範圍:0.35到4.62的光密度。
應用 專為使用互鎖或連續焊接波紋鎧裝電纜用夾克的盔甲。用於金屬鎧裝電纜連接到結外殼, 電機或終止的分支電路等。
要訂購:通過檢查電纜尺寸A和B.確定滿意的契合如果電纜尺寸不屬於可接受的範圍內,請諮詢您當地的銷售代表。 |
| |
|
|
