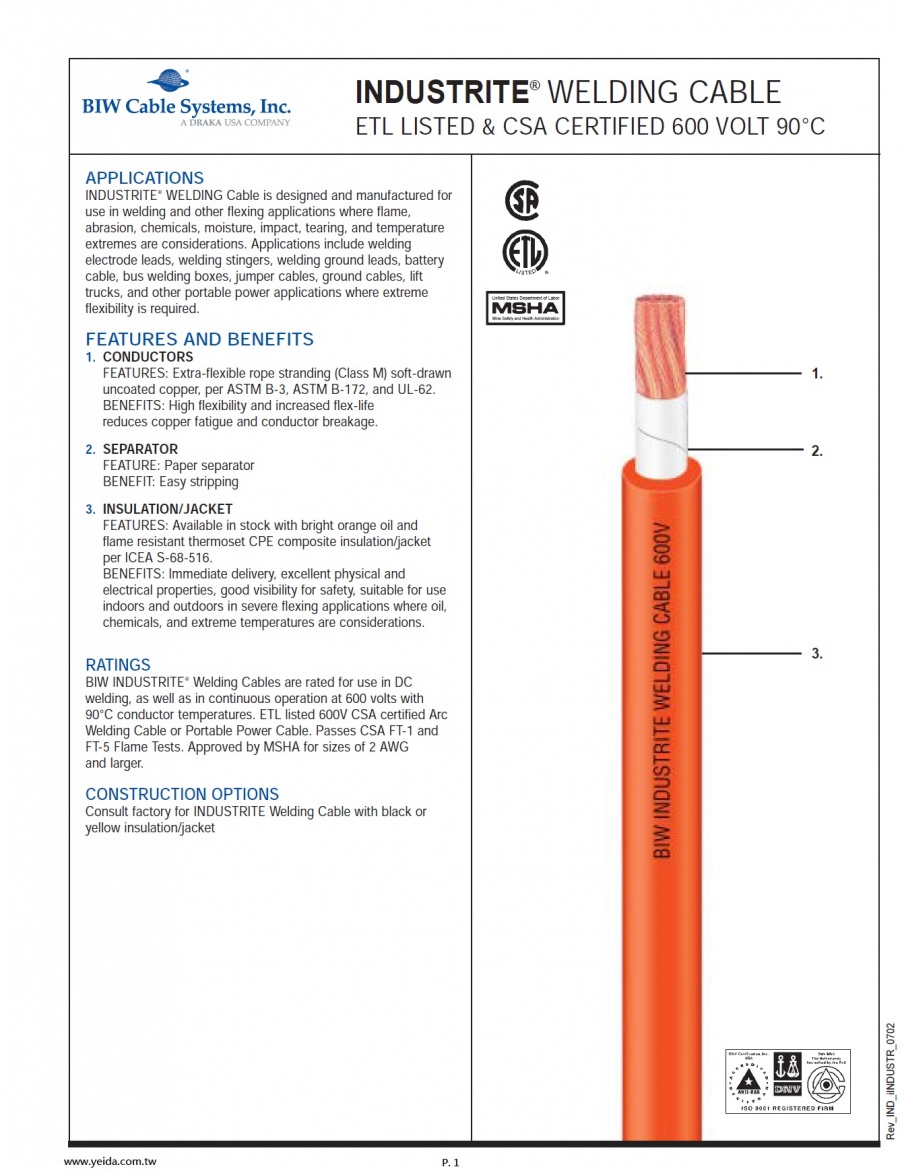

INDUSTRITE® WELDING CABLE
ETL LISTED & CSA CERTIFIED 600 VOLT 90°C

APPLICATIONS
INDUSTRITE® WELDING Cable is designed and manufactured for
use in welding and other flexing applications where flame,
abrasion, chemicals, moisture, impact, tearing, and temperature
extremes are considerations. Applications include welding
electrode leads, welding stingers, welding ground leads, battery
cable, bus welding boxes, jumper cables, ground cables, lift
trucks, and other portable power applications where extreme
flexibility is required.
FEATURES AND BENEFITS
1. CONDUCTORS
FEATURES: Extra-flexible rope stranding (Class M) soft-drawn
uncoated copper, per ASTM B-3, ASTM B-172, and UL-62.
BENEFITS: High flexibility and increased flex-life
reduces copper fatigue and conductor breakage.
2. SEPARATOR
FEATURE: Paper separator
BENEFIT: Easy stripping
3. INSULATION/JACKET
FEATURES: Available in stock with bright orange oil and
flame resistant thermoset CPE composite insulation/jacket
per ICEA S-68-516.
BENEFITS: Immediate delivery, excellent physical and
electrical properties, good visibility for safety, suitable for use
indoors and outdoors in severe flexing applications where oil,
chemicals, and extreme temperatures are considerations.

RATINGS
BIW INDUSTRITE® Welding Cables are rated for use in DC
welding, as well as in continuous operation at 600 volts with
90°C conductor temperatures. ETL listed 600V CSA certified Arc
Welding Cable or Portable Power Cable. Passes CSA FT-1 and
FT-5 Flame Tests. Approved by MSHA for sizes of 2 AWG
and larger.
CONSTRUCTION OPTIONS
Consult factory for INDUSTRITE Welding Cable with black or
yellow insulation/jacket
