MIL-DTL-24643/39
Singles, Shielded, 75 Ohm and Multiple Conductors: Cross-linked polyethylene insulation, braided Shield, over each conductor, cross-linked polyolefin jacket, low smoke, aluminum armor and paint

 單芯，屏蔽，75歐姆和多根導線：交聯聚乙烯絕緣，屏蔽層，在每根導線，交聯聚烯烴外套，低煙，鋁裝甲和油漆

Electronic, Communication Electronic
& Instrumentation Cables
MIL-C-24643

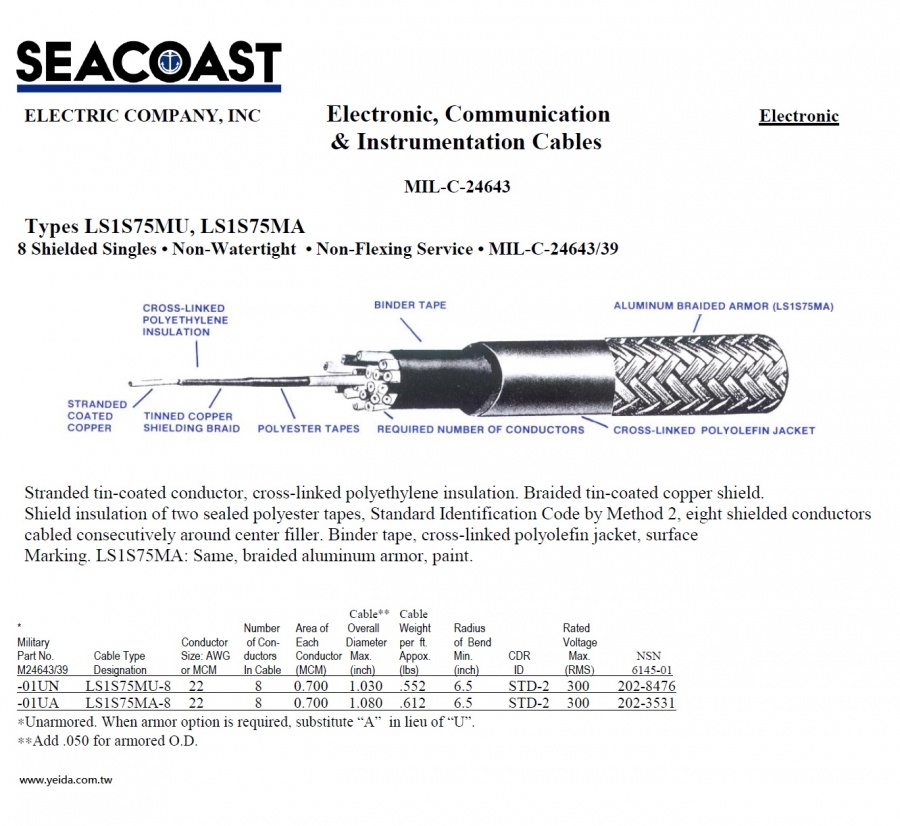

Types LS1S75MU, LS1S75MA
8 Shielded Singles • Non-Watertight • Non-Flexing Service • MIL-C-24643/39
Stranded tin-coated conductor, cross-linked polyethylene insulation. Braided tin-coated copper shield.
Shield insulation of two sealed polyester tapes, Standard Identification Code by Method 2, eight shielded conductors
cabled consecutively around center filler. Binder tape, cross-linked polyolefin jacket, surface
Marking. LS1S75MA: Same, braided aluminum armor, paint.
