US Navy Shipboard Cable > MIL-DTL-24643

MIL-DTL-24643/33
Pairs, Shielded, Watertight, and Unarmored: Cross-linked polyethylene insulation, braided shield Over each pair, cross-linked polyolefin jacket overall, low smoke

 對型，帶屏蔽，防水和無裝甲：XLPE絕緣，每對個別屏蔽隔離，交聯聚烯烴外套整體，低煙

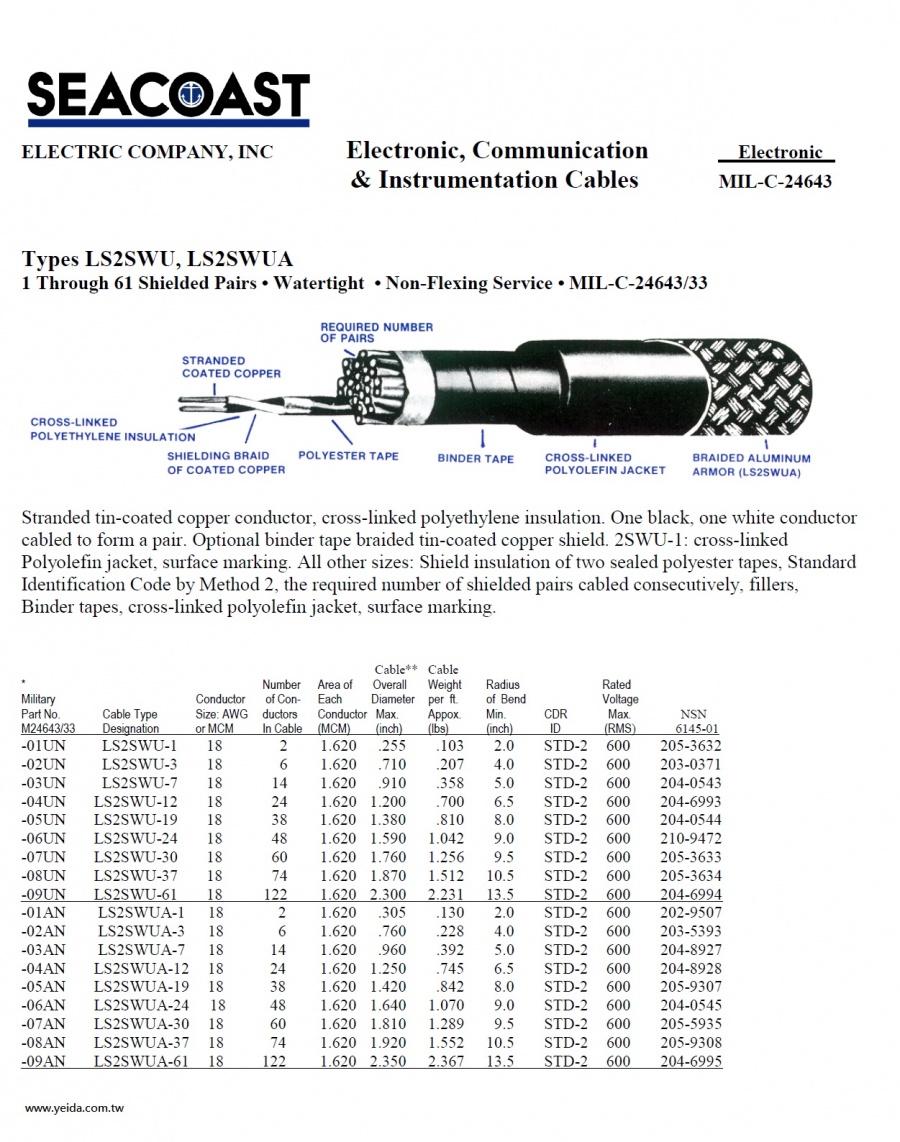

Electronic, Communication Electronic
& Instrumentation Cables MIL-C-24643
Types LS2SWU, LS2SWUA
1 Through 61 Shielded Pairs • Watertight • Non-Flexing Service • MIL-C-24643/33
Stranded tin-coated copper conductor, cross-linked polyethylene insulation. One black, one white conductor
cabled to form a pair. Optional binder tape braided tin-coated copper shield. 2SWU-1: cross-linked
Polyolefin jacket, surface marking. All other sizes: Shield insulation of two sealed polyester tapes, Standard
Identification Code by Method 2, the required number of shielded pairs cabled consecutively, fillers,
Binder tapes, cross-linked polyolefin jacket, surface marking.
