US Navy Shipboard Cable > MIL-DTL-24643

MIL-DTL-24643/35
Triads, Shielded, Unarmored: Cross-linked polyethylene, braided shield over each triad, cross-Linked polyolefin jacket overall, low smoke, double overall shield, aluminum armor and paint

三芯絞，帶屏蔽，無裝甲：交聯聚乙烯，編織屏蔽在每個黑社會，整體交聯聚烯烴外套，低煙，雙整體屏蔽，鋁裝甲和塗料

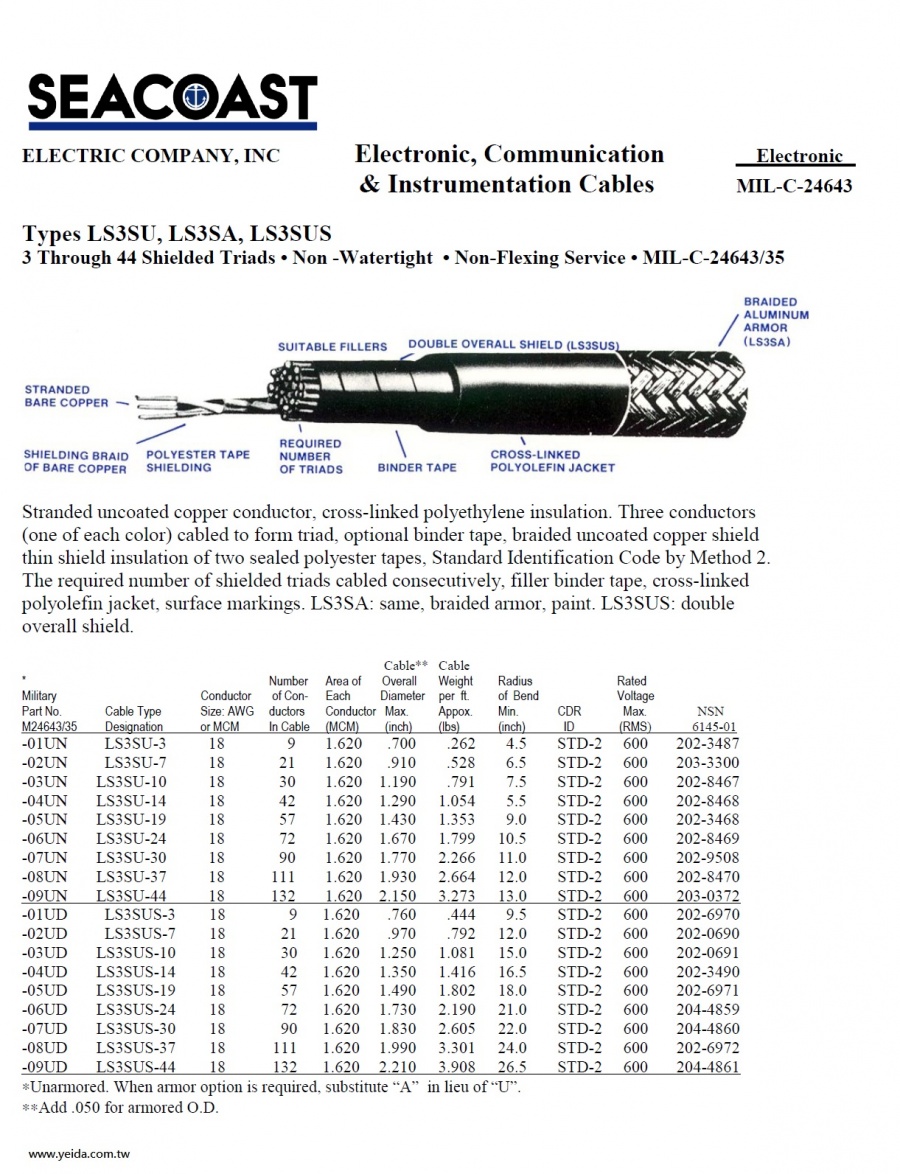

Electronic, Communication Electronic
& Instrumentation Cables MIL-C-24643
Types LS3SU, LS3SA, LS3SUS
3 Through 44 Shielded Triads • Non -Watertight • Non-Flexing Service • MIL-C-24643/35
Stranded uncoated copper conductor, cross-linked polyethylene insulation. Three conductors
(one of each color) cabled to form triad, optional binder tape, braided uncoated copper shield
thin shield insulation of two sealed polyester tapes, Standard Identification Code by Method 2.
The required number of shielded triads cabled consecutively, filler binder tape, cross-linked
polyolefin jacket, surface markings. LS3SA: same, braided armor, paint. LS3SUS: double
overall shield.
