MIL-DTL-24643/36
Triads, Shielded, Watertight, and Unarmored: Cross-linked polyethylene insulation, braided shield Over each triad, cross-linked polyolefin jacket, low smoke, aluminum armor and paint, double overall shield
三芯絞,帶屏蔽,防水和無裝甲:XLPE絕緣編織屏蔽在每個 三芯絞,交聯聚烯烴外套,低煙,鋁裝甲和塗料,雙層整體屏蔽

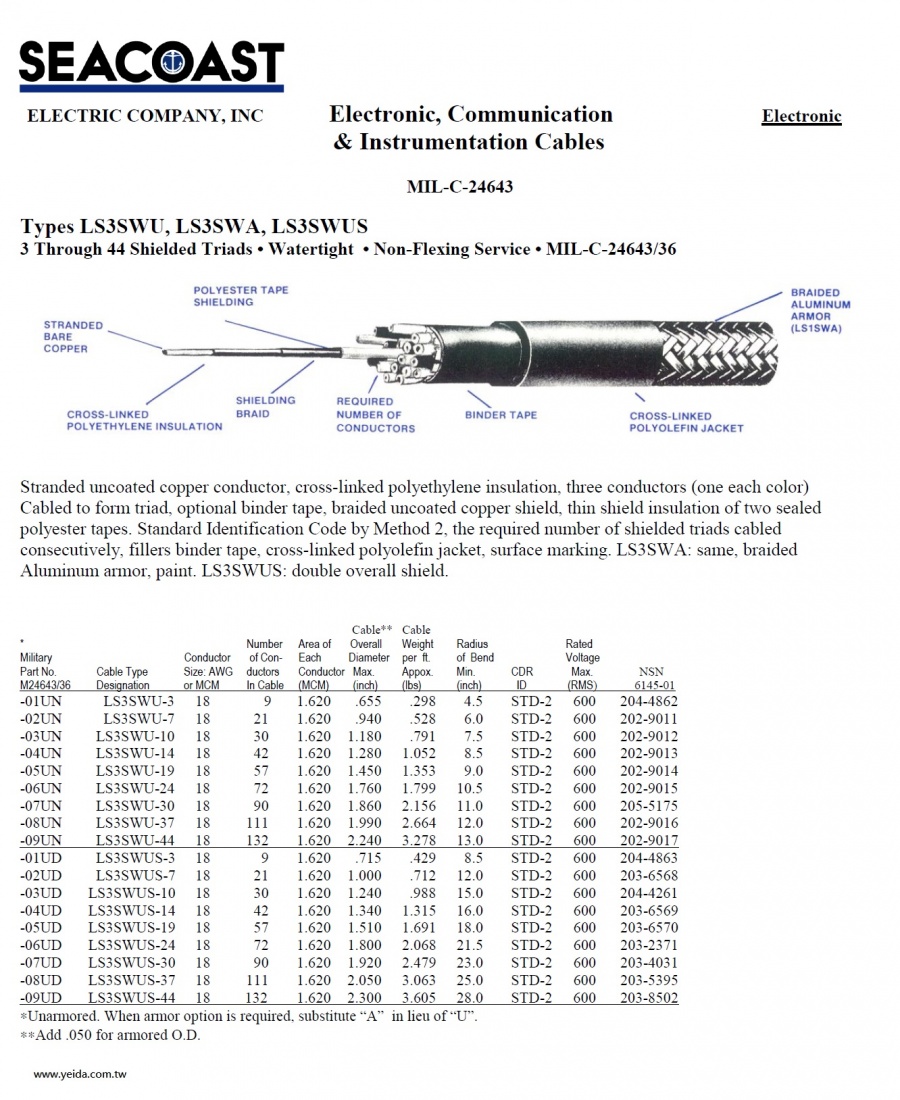

Electronic, Communication Electronic
& Instrumentation Cables
MIL-C-24643
Types LS3SWU, LS3SWA, LS3SWUS
3 Through 44 Shielded Triads • Watertight • Non-Flexing Service • MIL-C-24643/36
Stranded uncoated copper conductor, cross-linked polyethylene insulation, three conductors (one each color)
Cabled to form triad, optional binder tape, braided uncoated copper shield, thin shield insulation of two sealed
polyester tapes. Standard Identification Code by Method 2, the required number of shielded triads cabled
consecutively, fillers binder tape, cross-linked polyolefin jacket, surface marking. LS3SWA: same, braided
Aluminum armor, paint. LS3SWUS: double overall shield.
|
