US Navy Shipboard Cable > MIL-DTL-24643

MIL-DTL-24643/34
Multiple Conductor, Shielded: EPR or cross-linked polyethylene insulation and cross-linked polyolefin jacket, low smoke

 多芯導體，屏蔽：EPR或XLPE絕緣的交聯聚烯烴護套，低煙

Special Purpose Cables Special Purpose
MIL-C-24643

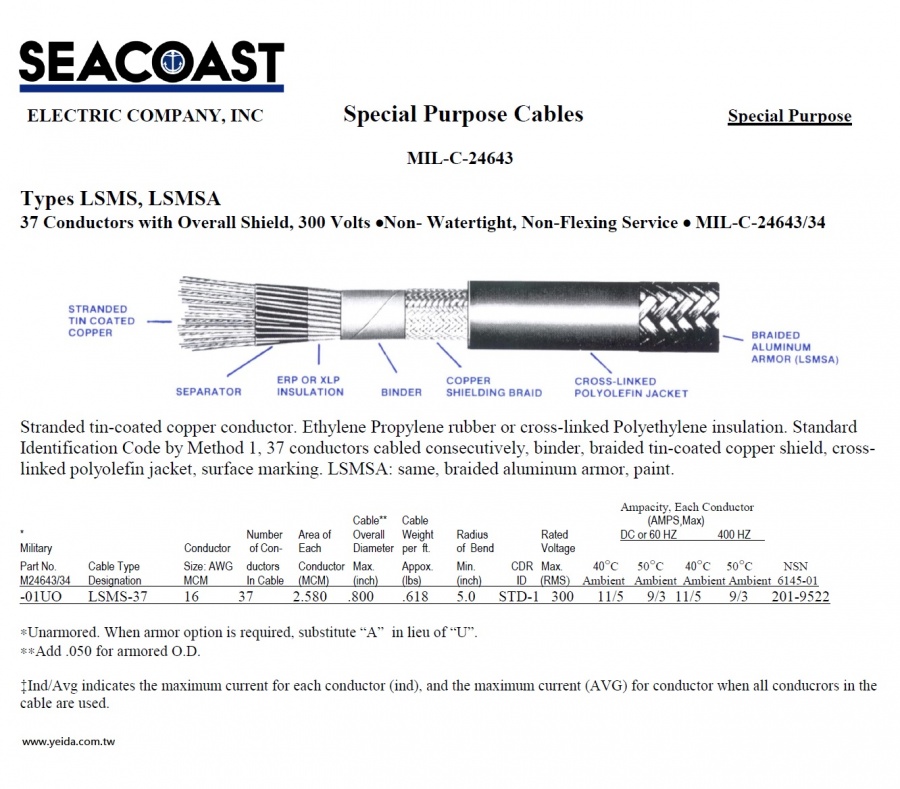

Types LSMS, LSMSA
37 Conductors with Overall Shield, 300 Volts •Non- Watertight, Non-Flexing Service • MIL-C-24643/34
Stranded tin-coated copper conductor. Ethylene Propylene rubber or cross-linked Polyethylene insulation. Standard
Identification Code by Method 1, 37 conductors cabled consecutively, binder, braided tin-coated copper shield, crosslinked
polyolefin jacket, surface marking. LSMSA: same, braided aluminum armor, paint.
