MIL-DTL-24643/20
Seven Conductors, Silicone rubber and glass insulation, cross-linked polyolefin jacket, low Smoke, aluminum armor and paint

7芯, 矽橡膠玻璃絲編織+XLpolyolefin外被覆  低煙 可選擇金屬鎧裝

Power & Lighting Cables Power & Light
MIL-C-24643

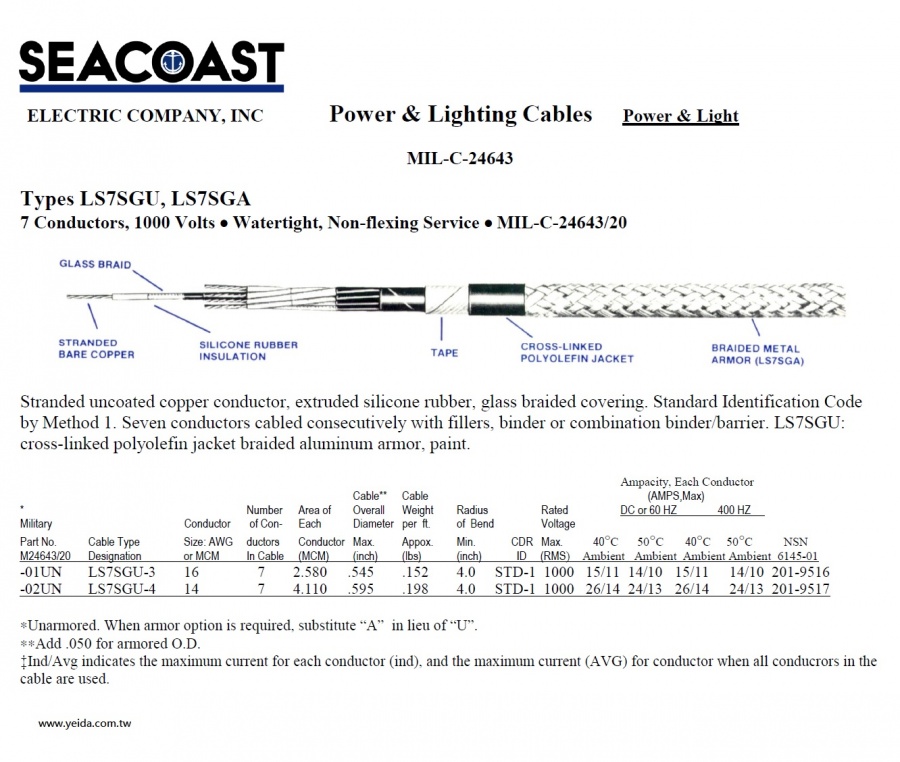

Types LS7SGU, LS7SGA
7 Conductors, 1000 Volts • Watertight, Non-flexing Service • MIL-C-24643/20
Stranded uncoated copper conductor, extruded silicone rubber, glass braided covering. Standard Identification Code
by Method 1. Seven conductors cabled consecutively with fillers, binder or combination binder/barrier. LS7SGU:
cross-linked polyolefin jacket braided aluminum armor, paint.
