商品編號: An-3B-1401

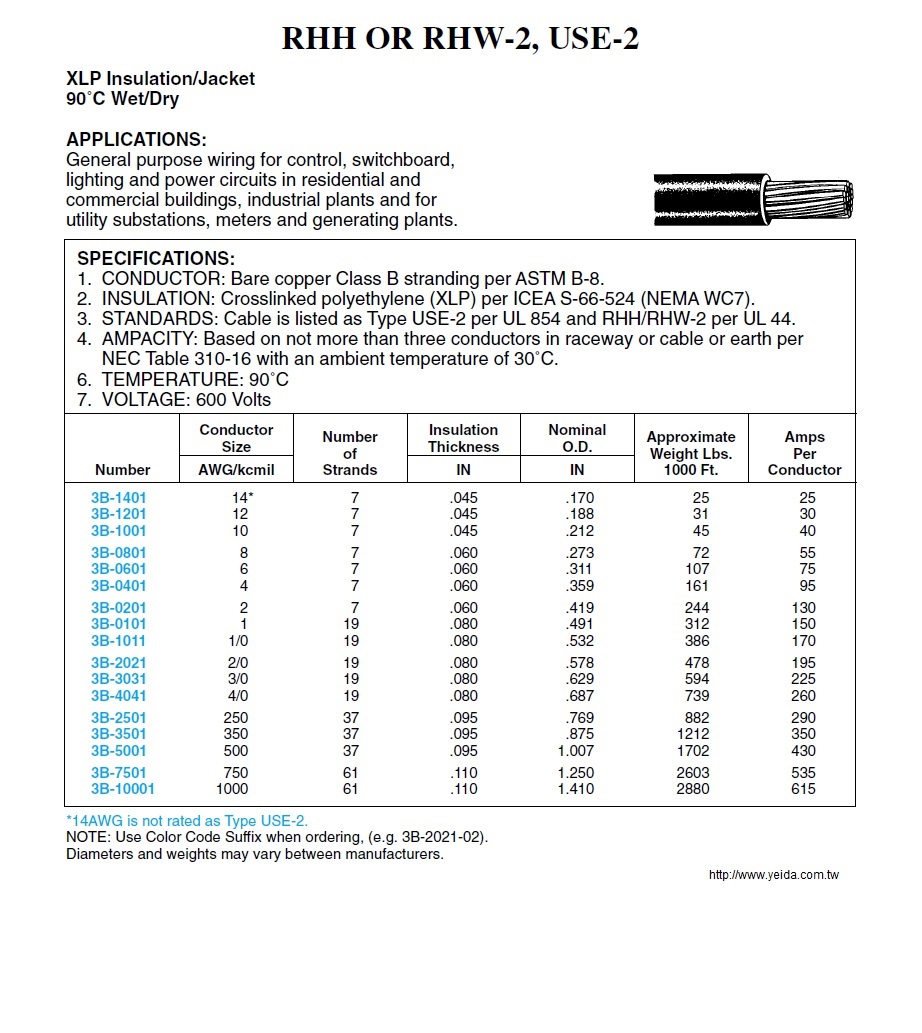

USE-2/XLP,RHH, RHW-2, UL44, UL854, NEMA WC70, 3B-1401 Awg14-1C STR BC 90C 600V BLK 交連PE電線
RHH or RHW-2, USE-2 XLP
XLP insulation/jacket
90°C wet/dry
14 AWG is not rated as Type USE-2. Diameters and weights may vary among manufacturers. All part numbers require color code designation. See Color Code chart at the end of this section.
|
Applications:
General purpose wiring for control, switchboard, lighting and power circuits in residential and commercial buildings, industrial plants and for utility substations, meters and generating plants.
Specifications:
- CONDUCTOR: Bare copper Class B stranding per ASTM B-8
- INSULATION: Cross-Linked polyethylene (XLP) per ICEA S-95-658 (NEMA WC70)
- STANDARDS: Cable is listed as Type USE-2 per UL 854 and RHH/RHW-2 per UL 44
- AMPACITY: Based on not more than three conductors in raceway or cable or earth per NEC Table 310.16 with an ambient temperature of 30°C
- TEMPERATURE: 90°C
- VOLTAGE: 600 V
Part No. |
Conductor Size AWG/kcmil |
No. of Strands |
Insulation Thickness (in.) |
Nominal O.D. (in.) |
Approx. Wt. lb/1000 ft |
Amps per Conductor |
3B-1401 |
14 |
7 |
0.045 |
0.170 |
25 |
25 |
3B-1201 |
12 |
7 |
0.045 |
0.188 |
31 |
30 |
3B-1001 |
10 |
7 |
0.045 |
0.212 |
45 |
40 |
3B-0801 |
8 |
7 |
0.060 |
0.273 |
72 |
55 |
3B-0601 |
6 |
7 |
0.060 |
0.311 |
107 |
75 |
3B-0401 |
4 |
7 |
0.060 |
0.359 |
161 |
95 |
3B-0201 |
2 |
7 |
0.060 |
0.419 |
244 |
130 |
3B-0101 |
1 |
19 |
0.080 |
0.491 |
312 |
150 |
3B-1011 |
1/0 |
19 |
0.080 |
0.532 |
386 |
170 |
3B-2021 |
2/0 |
19 |
0.080 |
0.578 |
478 |
195 |
3B-3031 |
3/0 |
19 |
0.080 |
0.629 |
594 |
225 |
3B-4041 |
4/0 |
19 |
0.080 |
0.687 |
739 |
260 |
3B-2501 |
250 |
37 |
0.095 |
0.769 |
882 |
290 |
3B-3501 |
350 |
37 |
0.095 |
0.875 |
1212 |
350 |
3B-5001 |
500 |
37 |
0.095 |
1.007 |
1702 |
430 |
3B-7501 |
750 |
61 |
0.110 |
1.250 |
2603 |
535 |
3B-10001 |
1000 |
61 |
0.110 |
1.410 |
2880 |
615 |
