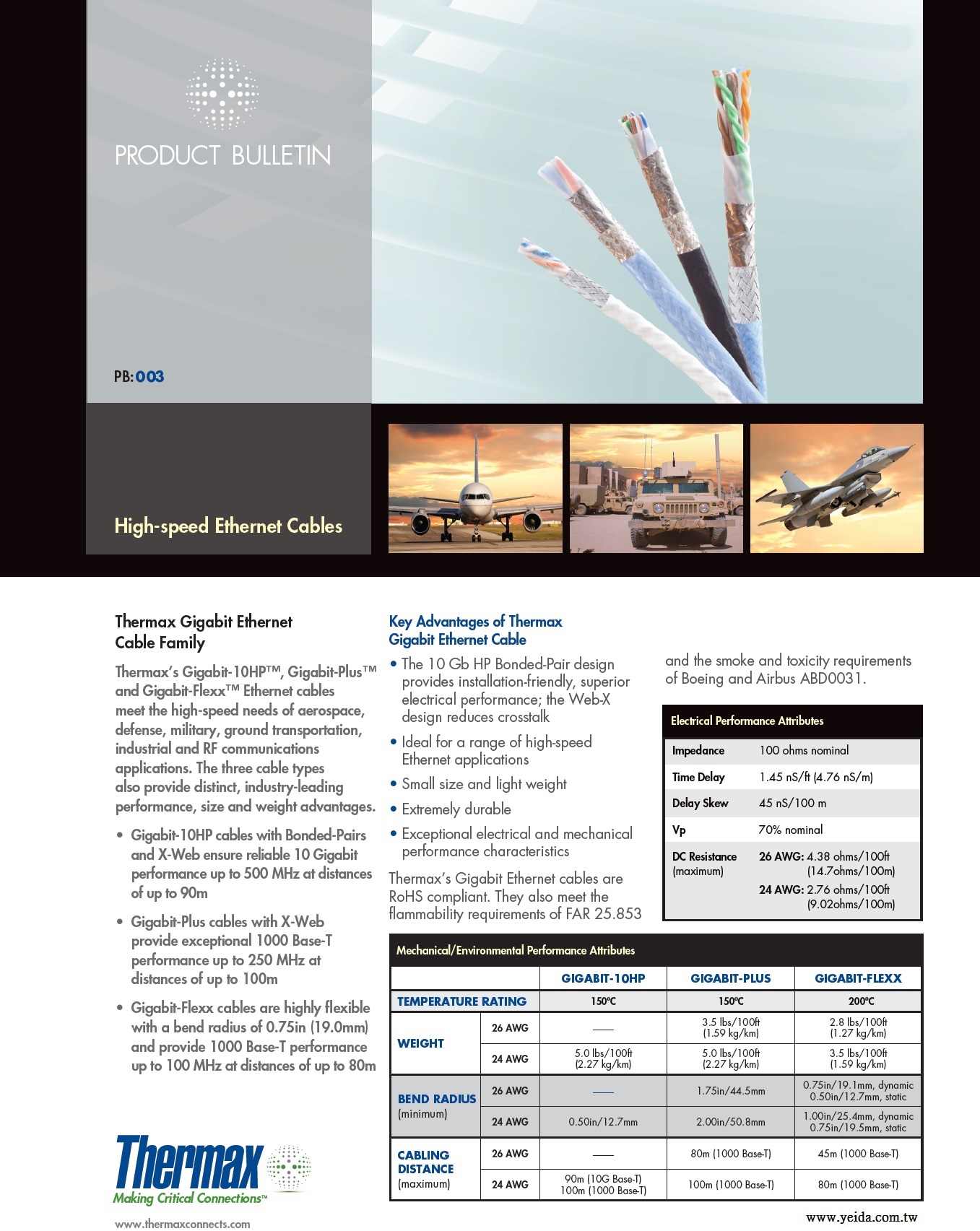

• Bonded-Pair design maintains uniformly fixed conductor-to-conductor centricity along the length of each twisted pair, ensuring superior electrical performance and cable reliability
  • Innovative X-Web central spline positions the wire pairs precisely to reduce crosstalk
  • Small size, light weight, durable and easy to install
  • Applications include Ethernet backbones, high-definition video, avionics, cabin management systems and ground vehicle bus



Pairs Four (4) Bonded-Pairs
Conductor 24 AWG stranded (19x36) silver-plated copper alloy
  0.0235in/0.60mm diameter
Insulation Extruded fluoropolymer
  0.046in/1.17mm
Spline X-Web
Binder Skive PTFE tape
Inner Shield Aluminum/Mylar
  100% coverage
Outer Shield Round silver-plated copper braid
  85% minimum coverage
  0.245in/6.22mm diameter
Jacket Transparent Blue or Black extruded FEP
  0.270in/6.86mm diameter
Impedance 100 Ohms
DC Resistance 2.76 Ohms/100 ft (24 AWG)
Vp 70%
Attenuation 26.4 ohms/100 m @ 100 MHz
Weight/K ft 55 lbs/1000 ft
Size .290 in
Min. Bend Radius .50 in
Operating Temperature -55 to 150C
Other ROHS Compliant
  Meets FAR 25.853 and Boeing/Airbus Smoke and Toxicity
