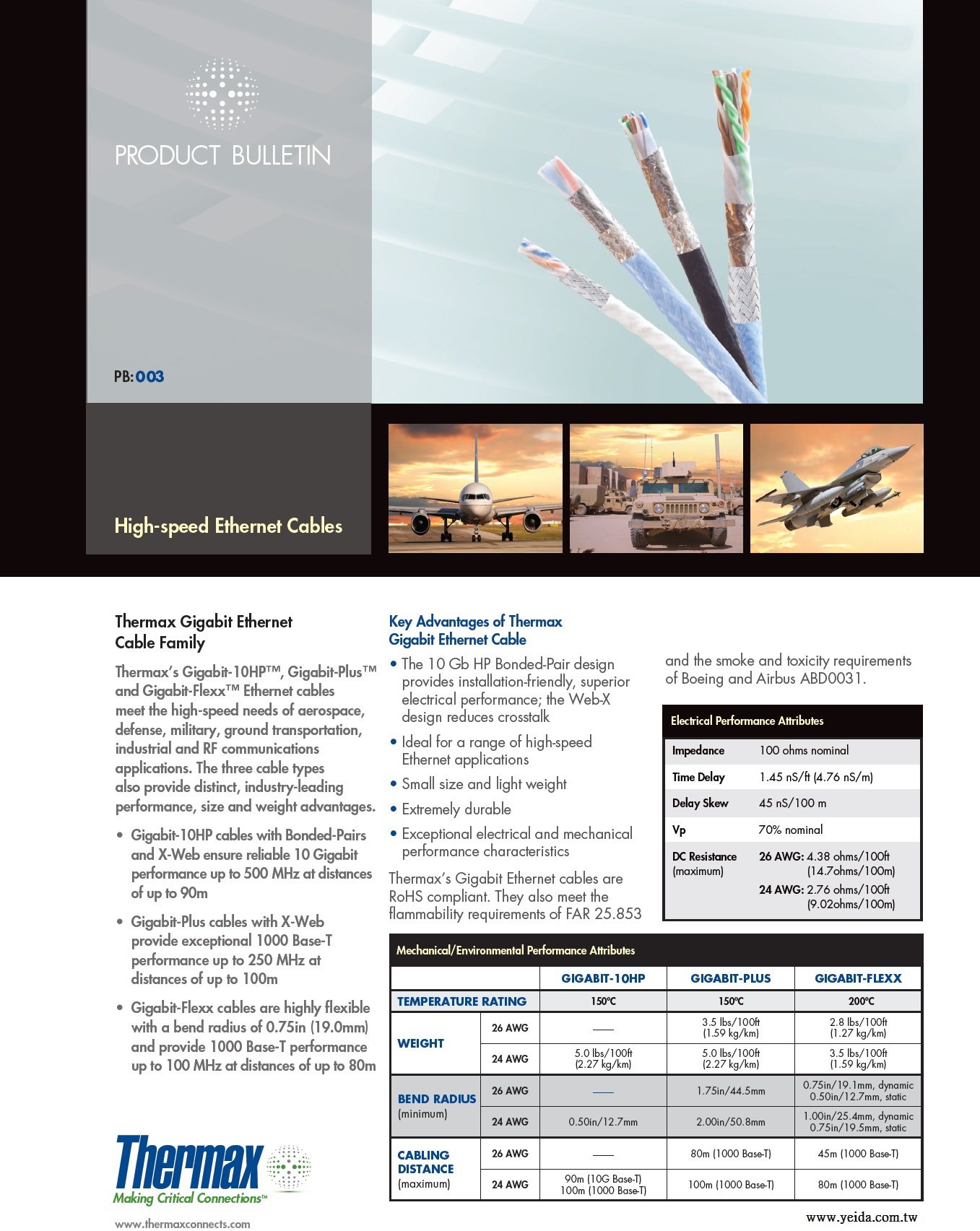

• Innovative X-Web spline reduces crosstalk and eliminates the need for individual pair shielding
  • More durable, smaller in overall size and lighter in weight than comparable cables
  • Applications include Ethernet backbones, avionics, in-flight entertainments systems, cabin management systems and ground vehicle bus
  • Meet the flammability requirements of FAR 25.853 and the smoke and toxicity requirements of Boeing and Airbus ABD0031
Pairs Four (4) twisted pairs
Conductor 26 AWG stranded (19x38) silver-plated copper alloy 0.0189in/0.48mm diameter
  24 AWG stranded (19x36) silver-plated copper alloy 0.0235in/0.60mm diameter
Insulation Fluoroploymer
  26 AWG: 0.036in/ 0.91mm diameter
  24 AWG: 0.045in/ 1.132mm diameter
Binder Skive PTFE tape
Shield Round silver-plated copper alloy braid 80% minimum coverage
  26 AWG: 0.180in/ 4.57mm diameter
  24 AWG: 0.230in/ 5.84mm diameter
Jacket White or Black PTFE
  26 AWG: 0.195in/ 4.9mm diameter
  24 AWG: 0.245in/ 6.22mm diameter
Impedance 100 Ohms
DC Resistance 2.76 Ohms/100 ft (24 AWG)
  4.38 Ohms/100 ft (26 AWG)
Vp 70%
Attenuation 26.4 ohms/100 m @ 100 MHz (24 AWG)
  31.6 ohms/100 m @ 100 MHz (26 AWG)
Weight/K ft 50 lbs/1000 ft (24 AWG)
  35 lbs/1000 ft (26 AWG)
Size .270 in (24 AWG)
  .220 in (26 AWG)
Min. Bend Radius 2.00 in (24 AWG)
  1.75 in (24 AWG)
Operating Temperature -55 to 150C
Other ROHS Compliant
  Meets FAR 25.853 and Boeing/Airbus Smoke and Toxicity
