    首頁 > > An-BuildingWire(建築線)

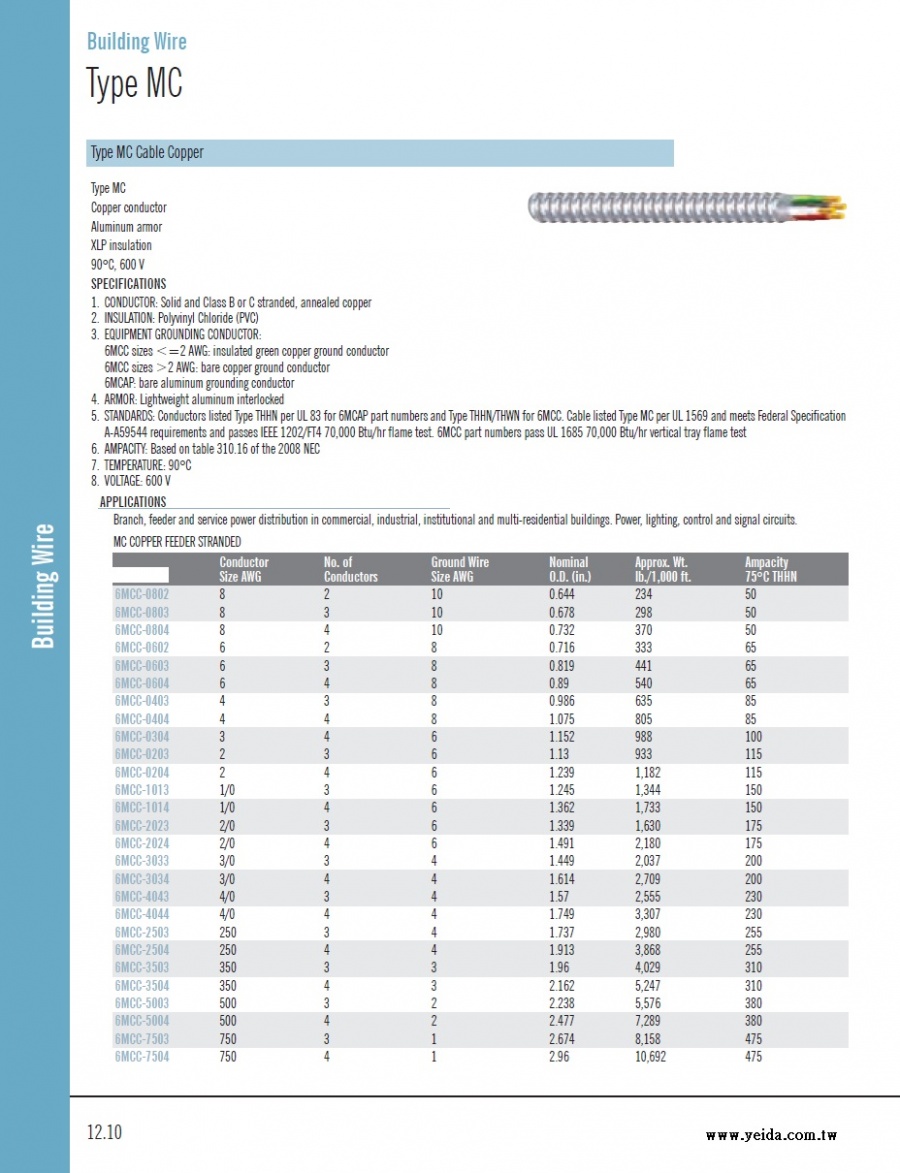

    A-Building Wire Type MC Cable Copper/XLP/Aluminum armor 90°C 600 V 銅導體 XLPE波紋鋁管鎧裝建築用線
    看原圖
    		5641102

    商品編號: A-6MCC-0802

    A-Building Wire Type MC Cable Copper/XLP/Aluminum armor 90°C 600 V 銅導體 XLPE波紋鋁管鎧裝建築用線


    Branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings. Power, lighting, control and signal circuits.

    Building Wire
    　

    Type MC Cable Copper

    Type MC
    Copper conductor
    Aluminum armor
    XLP insulation
    90°C, 600 V
    　

    SPECIFICATIONS
    1. CONDUCTOR:    Solid and Class B or C stranded, annealed copper
    2. INSULATION: Polyvinyl Chloride (PVC)
    3. EQUIPMENT GROUNDING CONDUCTOR:
         6MCC sizes <=2 AWG: insulated green copper ground conductor
         6MCC sizes >2 AWG: bare copper ground conductor
         6MCAP: bare aluminum grounding conductor
    4. ARMOR: Lightweight aluminum interlocked
    5. STANDARDS:Conductors listed Type THHN per UL 83 for 6MCAP part numbers and Type THHN/THWN for 6MCC. Cable listed Type MC per UL 1569 and meets Federal Specification
    A-A59544 requirements and passes IEEE 1202/FT4 70,000 Btu/hr flame test. 6MCC part numbers pass UL 1685 70,000 Btu/hr vertical tray flame test
    6. AMPACITY:Based on table 310.16 of the 2008 NEC
    7. TEMPERATURE: 90°C
    8. VOLTAGE: 600 V


    APPLICATIONS
    Branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings. Power, lighting, control and signal circuits.
