商品編號: A-3BE-1401

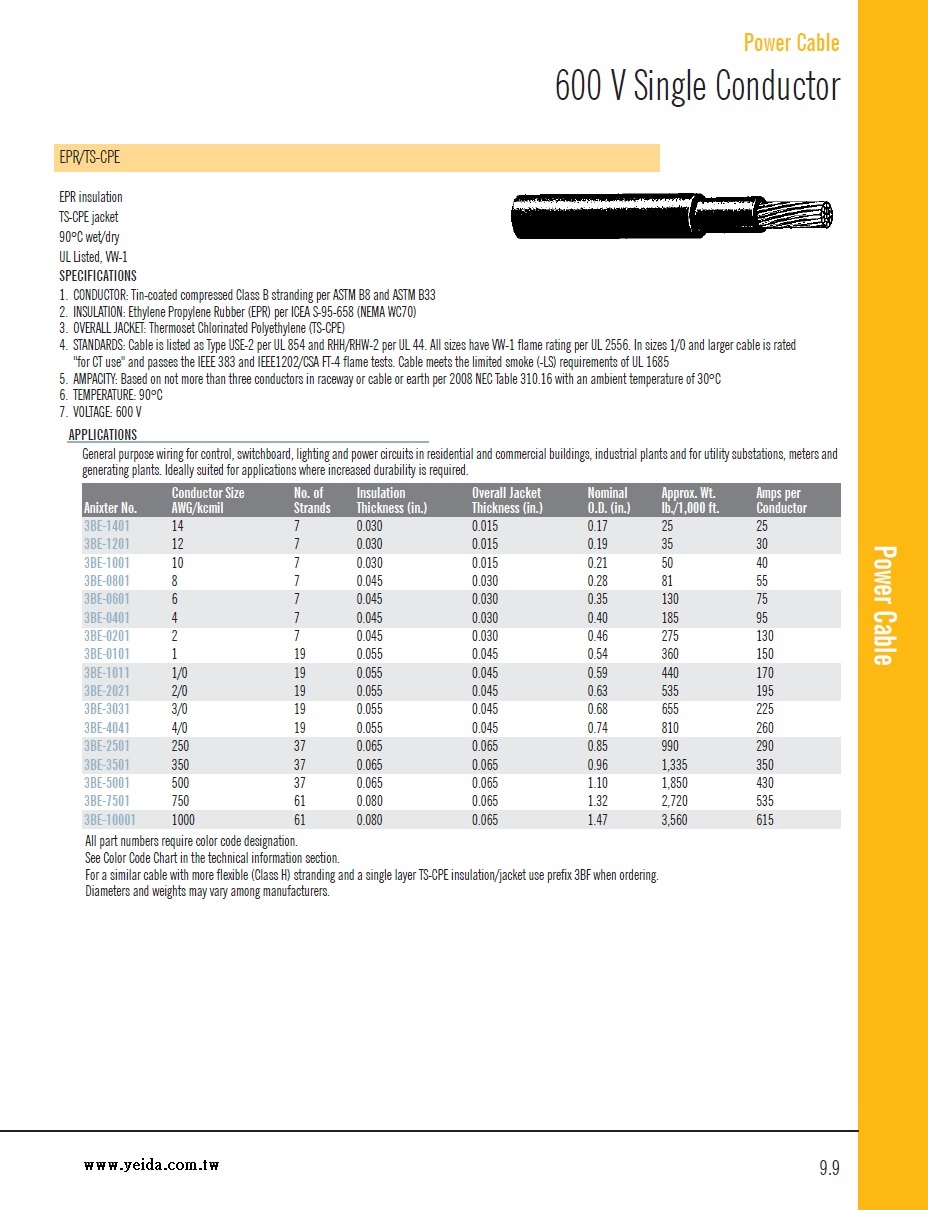

EPR/TS-CPE 90°C wet/dry 600 V UL Listed, VW-1 1C EPR-CPE橡膠電力電纜線
General purpose wiring for control, switchboard, lighting and power circuits in residential and commercial buildings, industrial plants and for utility substations, meters and
generating plants. Ideally suited for applications where increased durability is required.
Power Cable
600 V Multiconductor
EPR/TS-CPE
EPR insulation
TS-CPE jacket
90°C wet/dry
UL Listed, VW-1
SPECIFICATIONS
1. CONDUCTOR: Tin-coated compressed Class B stranding per ASTM B8 and ASTM B33
2. INSULATION: Ethylene Propylene Rubber (EPR) per ICEA S-95-658 (NEMA WC70)
3. OVERALL JACKET: Thermoset Chlorinated Polyethylene (TS-CPE)
4. STANDARDS: Cable is listed as Type USE-2 per UL 854 and RHH/RHW-2 per UL 44. All sizes have VW-1 flame rating per UL 2556. In sizes 1/0 and larger cable is rated
"for CT use" and passes the IEEE 383 and IEEE1202/CSA FT-4 flame tests. Cable meets the limited smoke (-LS) requirements of UL 1685
5. AMPACITY:Based on not more than three conductors in raceway or cable or earth per 2008 NEC Table 310.16 with an ambient temperature of 30°C
6. TEMPERATURE:90°C
7. VOLTAGE: 600 V
APPLICATIONS
General purpose wiring for control, switchboard, lighting and power circuits in residential and commercial buildings, industrial plants and for utility substations, meters and
generating plants. Ideally suited for applications where increased durability is required.
|
