    首頁 > > An-Power Cable1 電力電纜

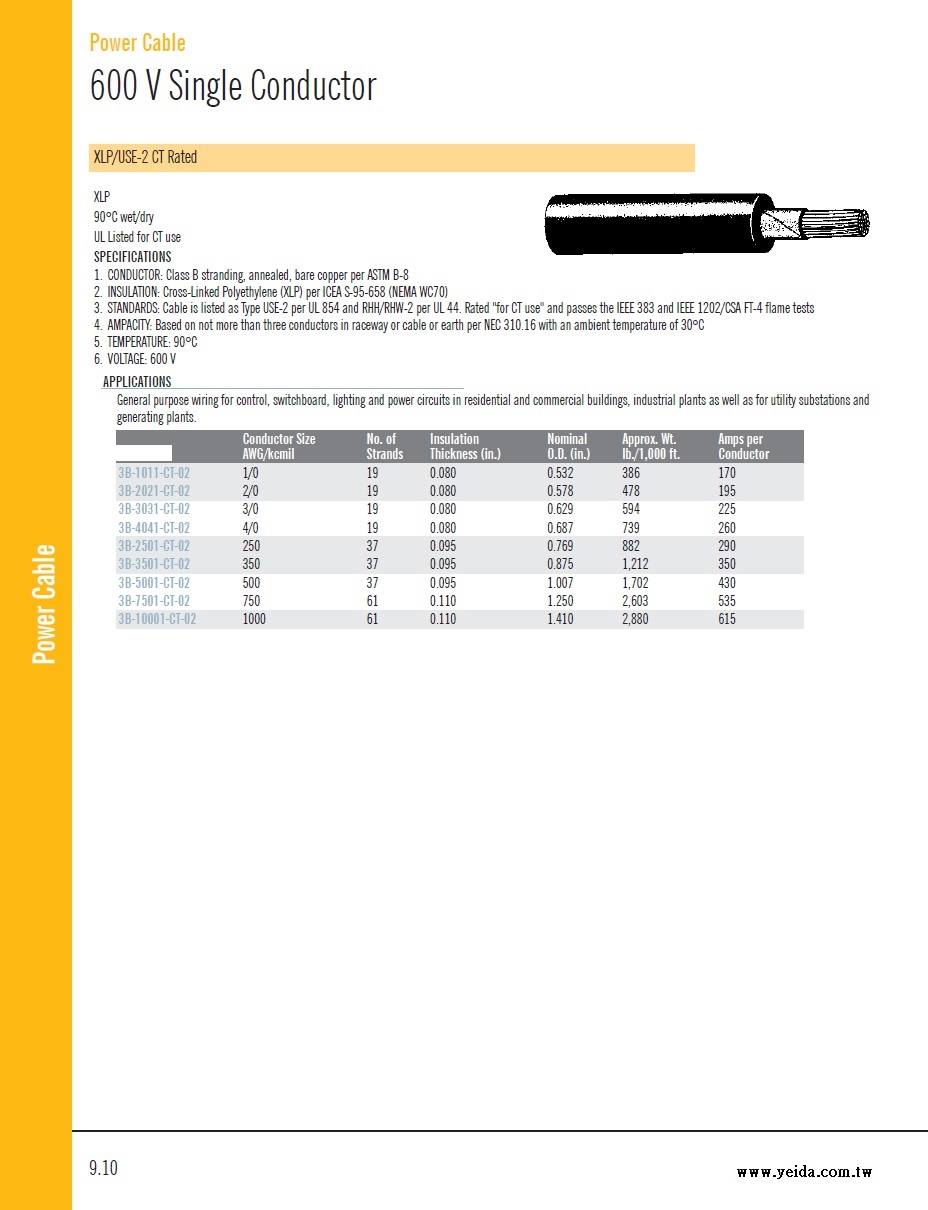

    XLP/USE-2 CT Rated UL Listed for CT use 90°C Wet/Dry 600V XLPE電力線
    看原圖
    		5264404


    商品編號: A-3B-1011-CT-02

    XLP/USE-2 CT Rated UL Listed for CT use 90°C Wet/Dry 600V XLPE電力線

    General purpose wiring for control, switchboard, lighting and power circuits in residential and commercial buildings, industrial plants as well as for utility substations and
    generating plants.

    Power Cable
    600 V Single Conductor

    XLP/USE-2 CT Rated

    XLP
    90°C wet/dry
    UL Listed for CT use


    SPECIFICATIONS
    1. CONDUCTOR:     Class B stranding, annealed, bare copper per ASTM B-8
    2. INSULATION:Cross-Linked Polyethylene (XLP) per ICEA S-95-658 (NEMA WC70)
    3. STANDARDS: Cable is listed as Type USE-2 per UL 854 and RHH/RHW-2 per UL 44. Rated "for CT use" and passes the IEEE 383 and IEEE 1202/CSA FT-4 flame tests
    4. AMPACITY: Based on not more than three conductors in raceway or cable or earth per NEC 310.16 with an ambient temperature of 30°C
    5. TEMPERATURE:90°C
    6. VOLTAGE: 600 V
    　

    APPLICATIONS
    General purpose wiring for control, switchboard, lighting and power circuits in residential and commercial buildings, industrial plants as well as for utility substations and
    generating plants.
