商品編號: A-3USA-0201
EPR/CPE/Unishield 5 kV Single Conductor - Shielded UL rated "for CT use " 高壓電力電纜133% Insulation Level
For use in power circuits up to 5 kV when installed in open air, conduit, duct, or buried direct in earth, for wet and dry locations. Used for power applications in chemical
plants, refineries, steel mills, industrial plants, utility substations and generating stations.

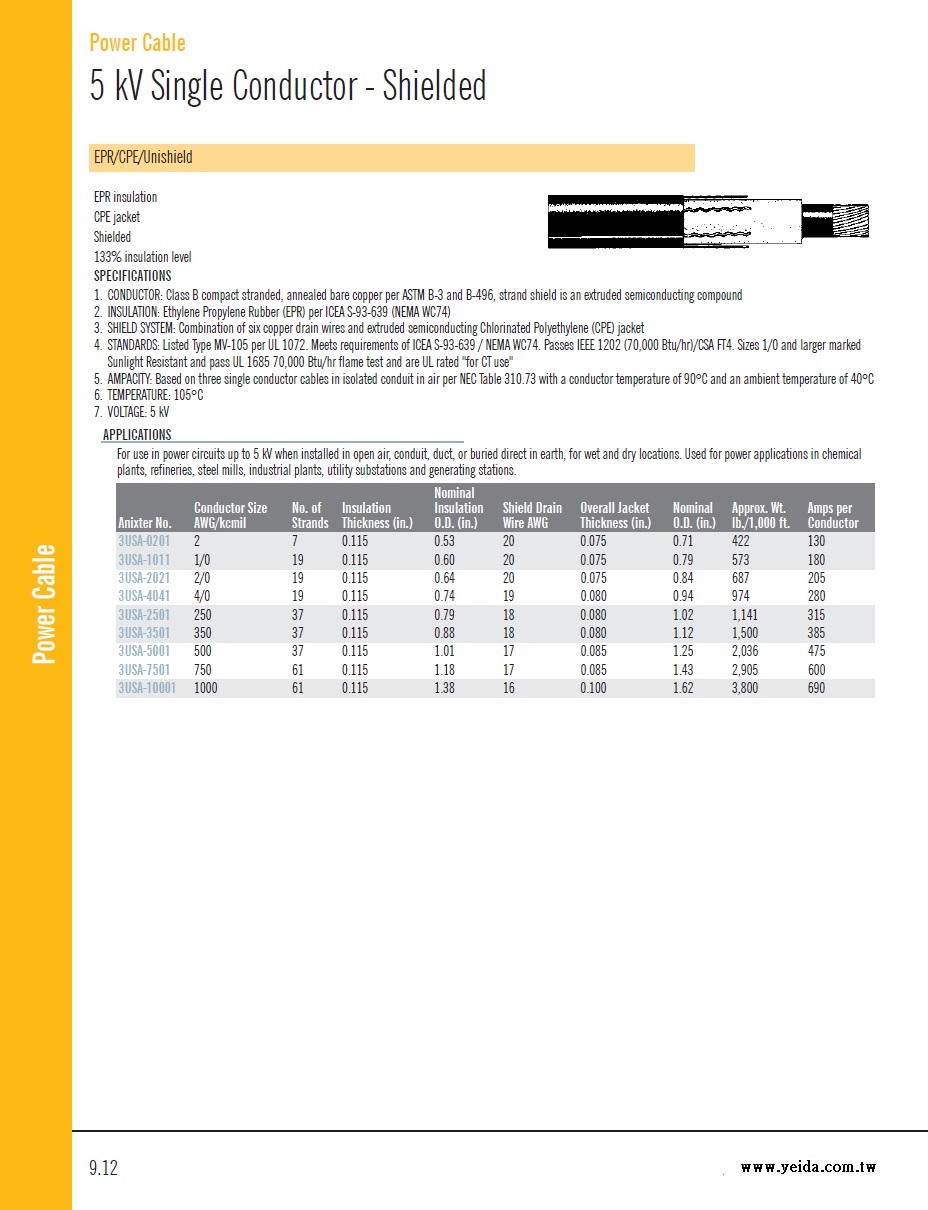

Power Cable
5 kV Single Conductor - Shielded
EPR/CPE/Unishield
EPR insulation
CPE jacket
Shielded
133% insulation level
SPECIFICATIONS
1. CONDUCTOR: Class B compact stranded, annealed bare copper per ASTM B-3 and B-496, strand shield is an extruded semiconducting compound
2. INSULATION: Ethylene Propylene Rubber (EPR) per ICEA S-93-639 (NEMA WC74)
3. SHIELD SYSTEM: Combination of six copper drain wires and extruded semiconducting Chlorinated Polyethylene (CPE) jacket
4. STANDARDS: Listed Type MV-105 per UL 1072. Meets requirements of ICEA S-93-639 / NEMA WC74. Passes IEEE 1202 (70,000 Btu/hr)/CSA FT4. Sizes 1/0 and larger marked
Sunlight Resistant and pass UL 1685 70,000 Btu/hr flame test and are UL rated "for CT use"
5. AMPACITY: Based on three single conductor cables in isolated conduit in air per NEC Table 310.73 with a conductor temperature of 90°C and an ambient temperature of 40°C
6. TEMPERATURE: 105°C
7. VOLTAGE: 5 kV
APPLICATIONS
For use in power circuits up to 5 kV when installed in open air, conduit, duct, or buried direct in earth, for wet and dry locations. Used for power applications in chemical
plants, refineries, steel mills, industrial plants, utility substations and generating stations.
|
