For use in power circuits up to 8 kV when installed in open air, conduit, duct or buried directly in the earth, for wet and dry locations. Used for power applications in chemical
plants, refineries, steel mills, industrial plants, utility substations and generating stations.

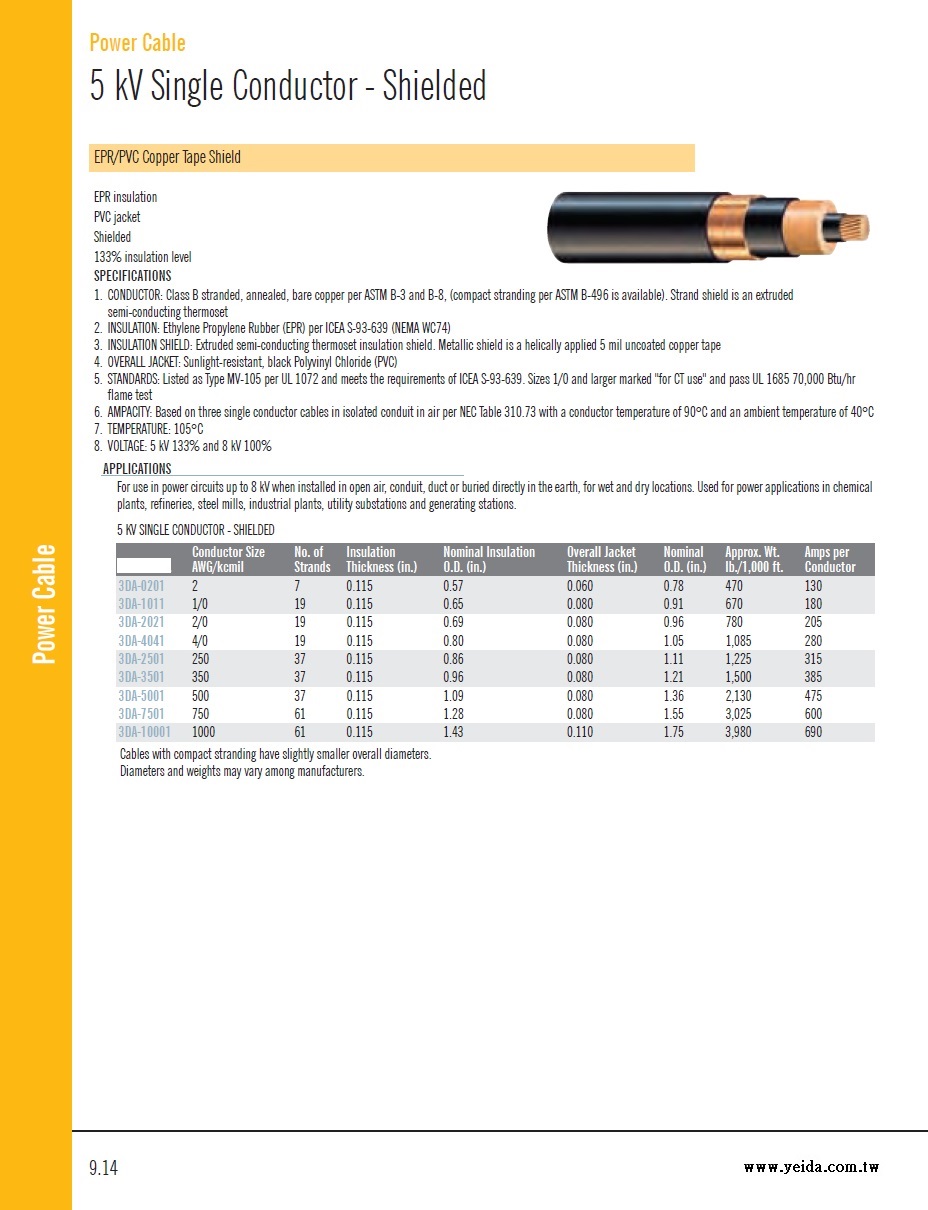

Power Cable
5 kV Single Conductor - Shielded

EPR/PVC Copper Tape Shield

EPR insulation
PVC jacket
Shielded
133% insulation level

SPECIFICATIONS
1. CONDUCTOR: Class B stranded, annealed, bare copper per ASTM B-3 and B-8, (compact stranding per ASTM B-496 is available). Strand shield is an extruded
semi-conducting thermoset
2. INSULATION: Ethylene Propylene Rubber (EPR) per ICEA S-93-639 (NEMA WC74)
3. INSULATION SHIELD: Extruded semi-conducting thermoset insulation shield. Metallic shield is a helically applied 5 mil uncoated copper tape
4. OVERALL JACKET: Sunlight-resistant, black Polyvinyl Chloride (PVC)
5. STANDARDS: Listed as Type MV-105 per UL 1072 and meets the requirements of ICEA S-93-639. Sizes 1/0 and larger marked "for CT use" and pass UL 1685 70,000 Btu/hr
flame test
6. AMPACITY: Based on three single conductor cables in isolated conduit in air per NEC Table 310.73 with a conductor temperature of 90°C and an ambient temperature of 40°C
7. TEMPERATURE: 105°C
8. VOLTAGE:5 kV 133% and 8 kV 100%
　

APPLICATIONS
For use in power circuits up to 8 kV when installed in open air, conduit, duct or buried directly in the earth, for wet and dry locations. Used for power applications in chemical
plants, refineries, steel mills, industrial plants, utility substations and generating stations.
