商品編號: Belden-29513
Belden-VFD XLPE/PVC 90°C , 1,000 V UL Listed Type TC Variable-frequency Drive Cable 變頻馬達高壓電力電纜
Variable-frequency drives (VFDs), also known as variable-speed or adjustable-speed drives are used to power AC motors in a variety of industrial motion control, commercial
flow/pumping, and extrusion applications. Benefits of using a VFD over traditional DC drives include more precise motor control and improved power efficiency. While there
are many benefits to using VFDs, their use requires special considerations for other drive system components; especially the drives output cabling. These drive systems
require cables that are specifically designed for VFD applications in order to improve drive system reliability while negating the impact of RFI/EMI.
Power Cable

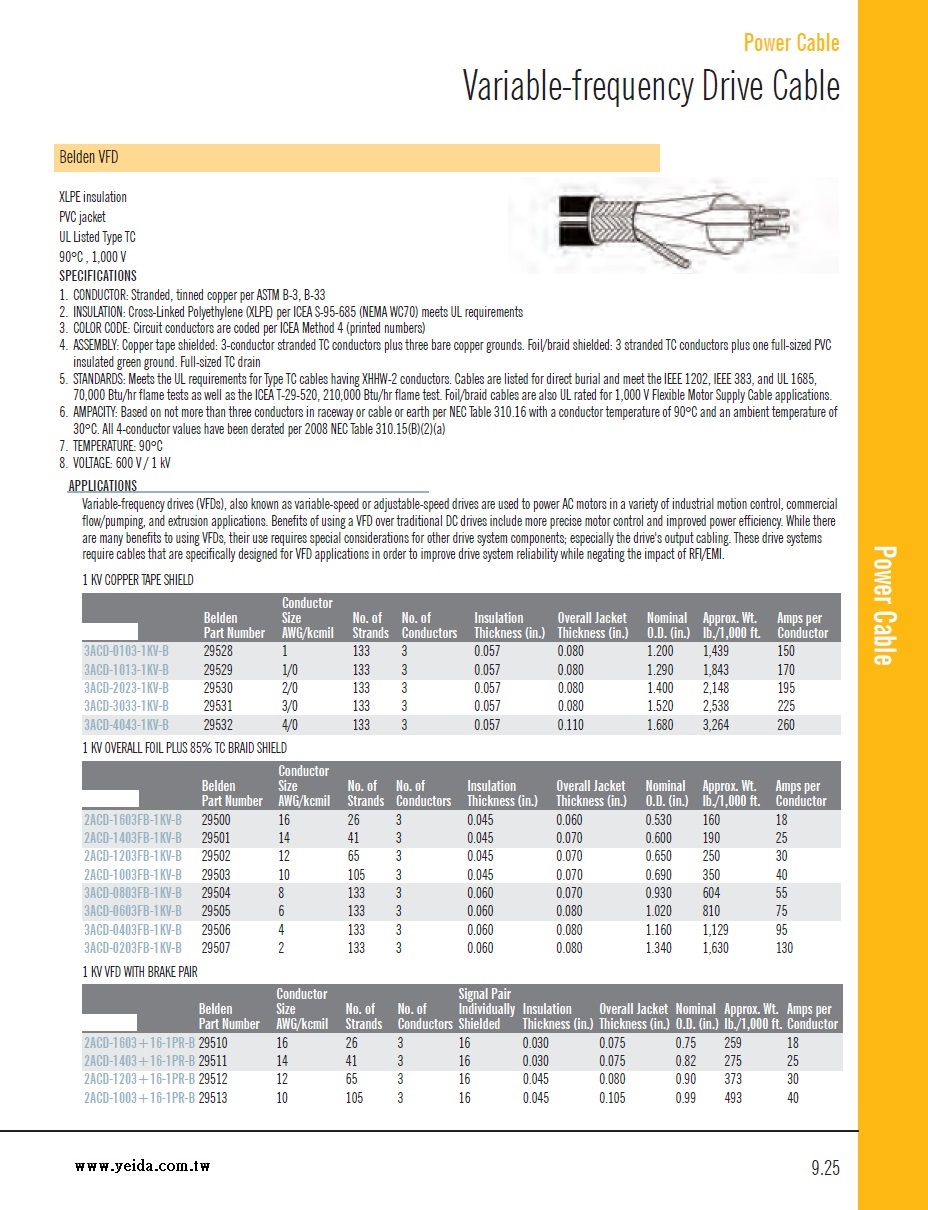

Variable-frequency Drive Cable (VFD )
Belden VFD
XLPE insulation
PVC jacket
UL Listed Type TC
90°C , 1,000 V
SPECIFICATIONS
1. CONDUCTOR: Stranded, tinned copper per ASTM B-3, B-33
2. INSULATION:Cross-Linked Polyethylene (XLPE) per ICEA S-95-685 (NEMA WC70) meets UL requirements
3. COLOR CODE: Circuit conductors are coded per ICEA Method 4 (printed numbers)
4. ASSEMBLY: Copper tape shielded: 3-conductor stranded TC conductors plus three bare copper grounds. Foil/braid shielded: 3 stranded TC conductors plus one full-sized PVC
insulated green ground. Full-sized TC drain
5. STANDARDS: Meets the UL requirements for Type TC cables having XHHW-2 conductors. Cables are listed for direct burial and meet the IEEE 1202, IEEE 383, and UL 1685,
70,000 Btu/hr flame tests as well as the ICEA T-29-520, 210,000 Btu/hr flame test. Foil/braid cables are also UL rated for 1,000 V Flexible Motor Supply Cable applications.
6. AMPACITY: Based on not more than three conductors in raceway or cable or earth per NEC Table 310.16 with a conductor temperature of 90°C and an ambient temperature of
30°C. All 4-conductor values have been derated per 2008 NEC Table 310.15(B)(2)(a)
7. TEMPERATURE: 90°C
8. VOLTAGE:600 V / 1 kV
APPLICATIONS
Variable-frequency drives (VFDs), also known as variable-speed or adjustable-speed drives are used to power AC motors in a variety of industrial motion control, commercial
flow/pumping, and extrusion applications. Benefits of using a VFD over traditional DC drives include more precise motor control and improved power efficiency. While there
are many benefits to using VFDs, their use requires special considerations for other drive system components; especially the drives output cabling. These drive systems
require cables that are specifically designed for VFD applications in order to improve drive system reliability while negating the impact of RFI/EMI.
|
