For use in power circuits up to 15 kV when installed in open air, conduit, duct, or buried direct in earth, for wet and dry locations. Used for power applications in chemical
plants, refineries, steel mills, industrial plants, utility substations and generating stations.

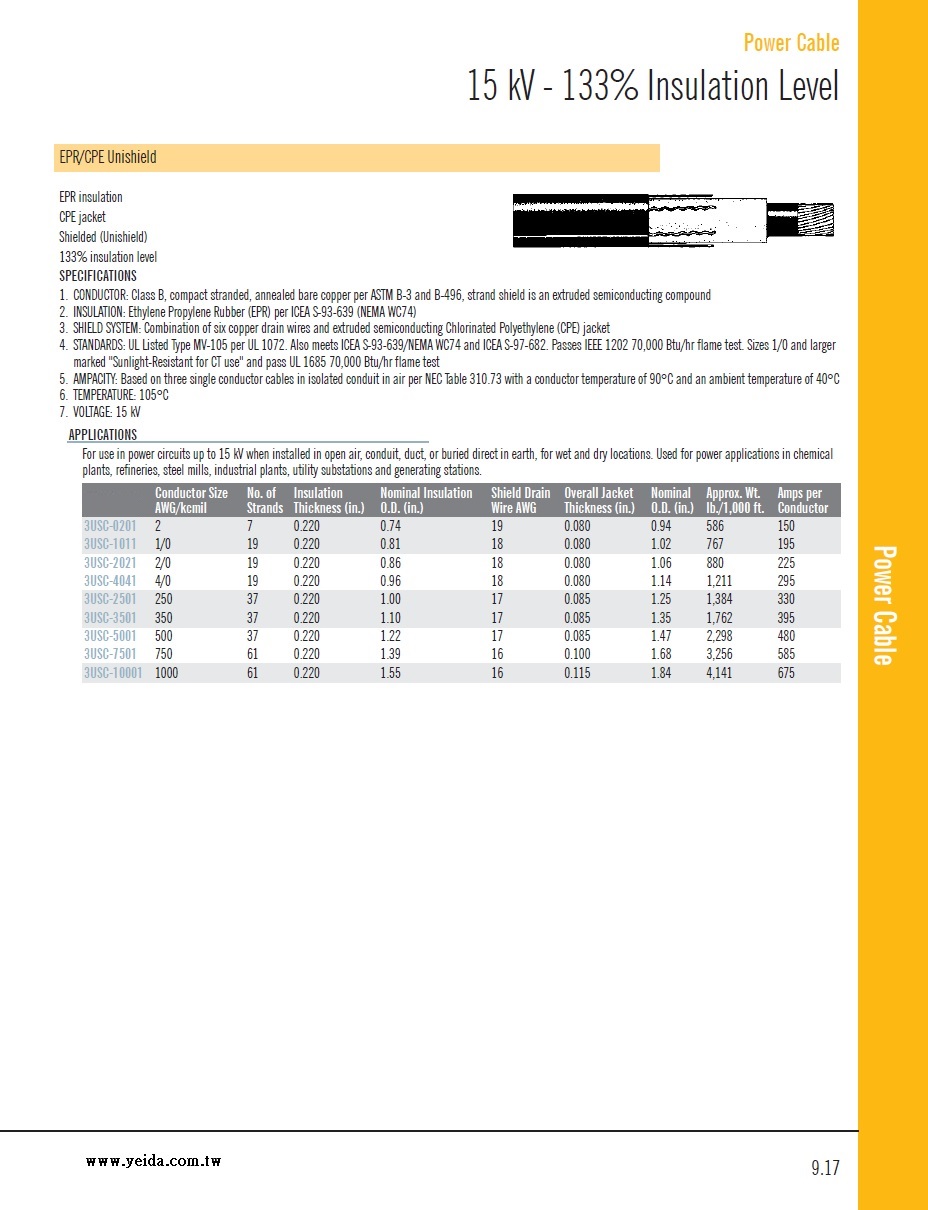

Power Cable

15 kV - 133% Insulation Level

EPR/CPE Unishield

EPR insulation
CPE jacket
Shielded (Unishield)
133% insulation level
　

SPECIFICATIONS
1. CONDUCTOR: Class B, compact stranded, annealed bare copper per ASTM B-3 and B-496, strand shield is an extruded semiconducting compound
2. INSULATION: Ethylene Propylene Rubber (EPR) per ICEA S-93-639 (NEMA WC74)
3. SHIELD SYSTEM: Combination of six copper drain wires and extruded semiconducting Chlorinated Polyethylene (CPE) jacket
4. STANDARDS: UL Listed Type MV-105 per UL 1072. Also meets ICEA S-93-639/NEMA WC74 and ICEA S-97-682. Passes IEEE 1202 70,000 Btu/hr flame test. Sizes 1/0 and larger
marked "Sunlight-Resistant for CT use" and pass UL 1685 70,000 Btu/hr flame test
5. AMPACITY:Based on three single conductor cables in isolated conduit in air per NEC Table 310.73 with a conductor temperature of 90°C and an ambient temperature of 40°C
6. TEMPERATURE:105°C
7. VOLTAGE:15 kV
　

APPLICATIONS
For use in power circuits up to 15 kV when installed in open air, conduit, duct, or buried direct in earth, for wet and dry locations. Used for power applications in chemical
plants, refineries, steel mills, industrial plants, utility substations and generating stations.
